Matric A5 | System 81mm Surface

    Home/Ceiling lights/

    Matric A5 | System 81mm Surface

About this product

Architonic ID: 20119020

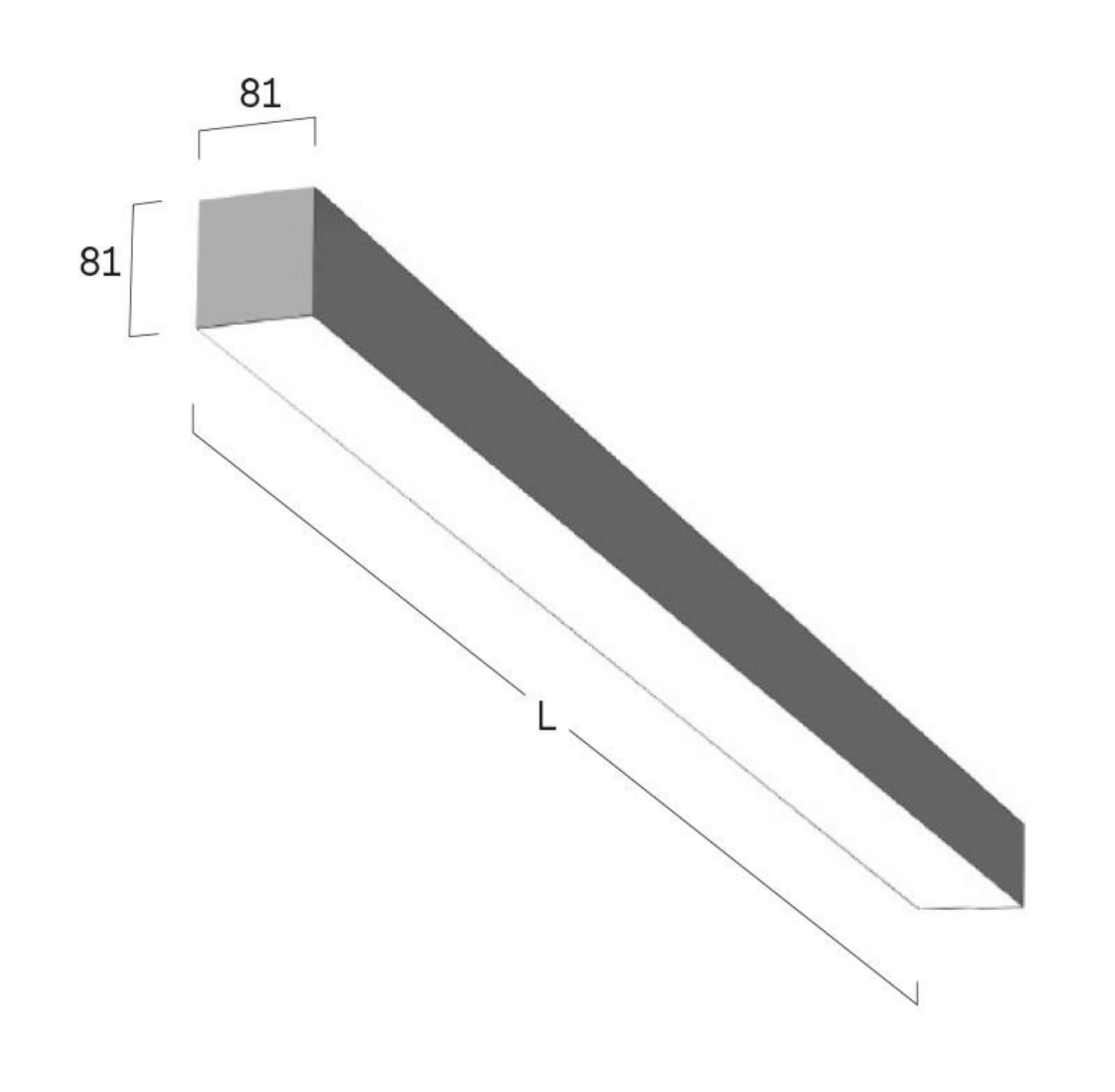

LED surface-mounted luminaire for walls or ceilings. Direct only light distribution. Light channel made of 81mm wide aluminium profile. Bespoke lengths possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen made of special acrylic glass and satin Louvre made of aluminum with optimized glare reduction especially for workplaces Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Wallwasher for homogeneous illumination of vertical surfaces. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of spotlights, emergency lighting components, sensor technology.

Concept

Designer luminaire for the office

Matric is the most variable light line system, which, in addition to a comprehensive standard range, can always be manufactured to millimeter precision according to specifications. Based on three light channel widths (system 40mm, 55mm and 81mm), it offers a variety of different profile cross-sections for mounting on the wall and on and in concrete-plasterboard and modular ceilings.

The diverse lighting technology options include high-performance lens reflector optics, wallwashers, microprism optics and opal diffusers. The illumination is always perfect, regardless of whether straight light lines or complex structures with angles and corners are realized. Almost all profiles can also be combined with 3-phase or 48V tracks and spotlights.
