VIAVAI | ZOOM - Suspension
- Home/Suspended lights/
VIAVAI | ZOOM - Suspension
About this product
Architonic ID: 20754073
SKU: 81510-81511
Year of Launch: 2023

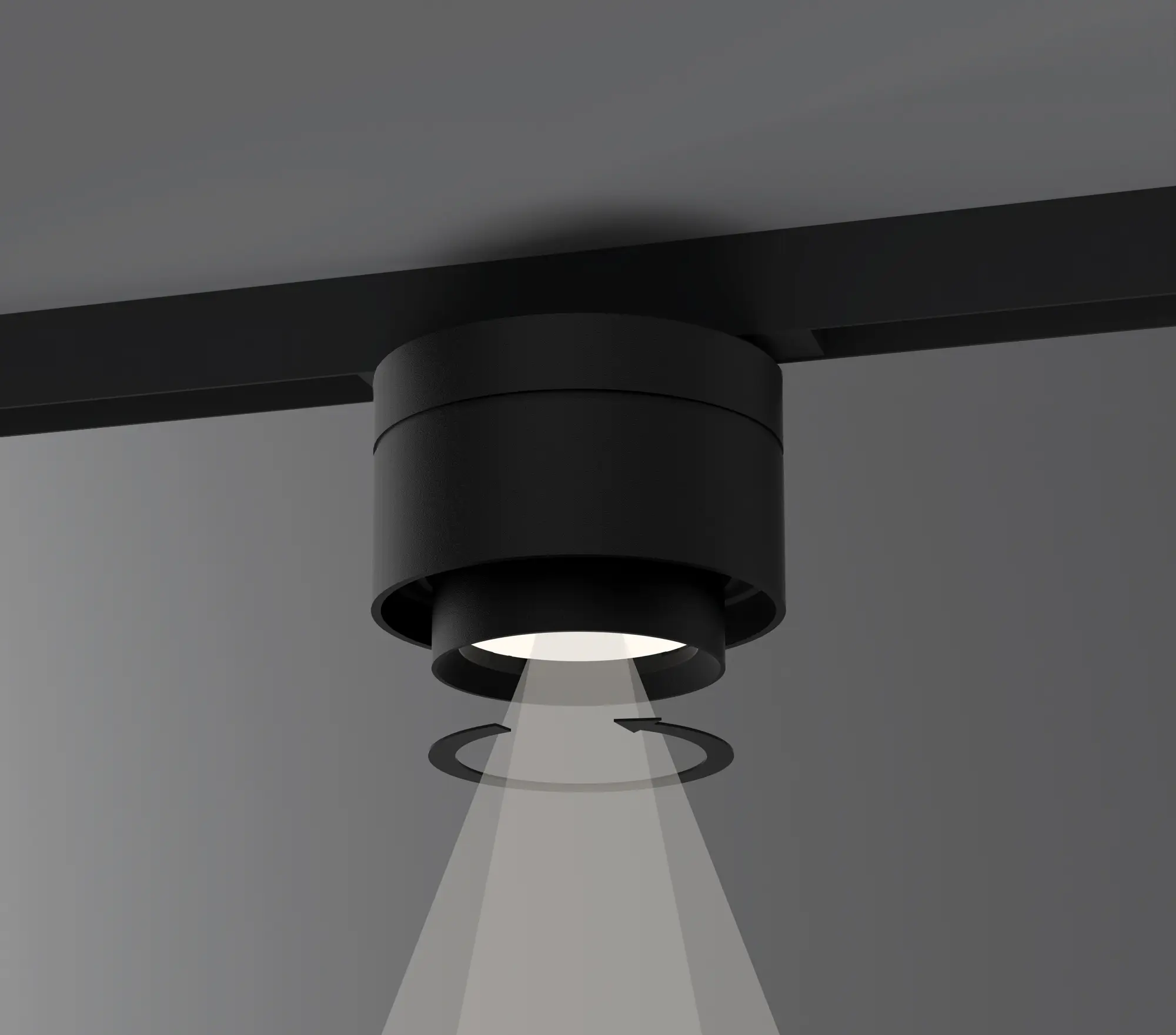

ZOOM sources can be moved and added at will, with extreme simplicity, through the snap fastening system. Adjustable optics from 12 to 46 degrees for the best adaptation of the light e!ect. Painted aluminum body. Integrated electronics available in “ONE BY ONE” and ON-OFF, 0-10V dimmable, DALI dimmable versions.
ON-OFF version
1 x 13W- 48V
0-10V Dimmable
1 x 13W- 48V
ONE BY ONE Dimmable
1 x 13W- 48V
2700K CRI 97- 831 / 1010 lm
3000K CRI 97- 878 / 1068 lm
Converter included.
Adjustable optic 12°- 46°
Adjustable cable.
III | IP20 | CE
Kg 0,42
Concept
VIAVAI is a line of 48V linear systems, characterized by innovative solutions unique in the panorama of architectural lighting. We have combined the functionality of low voltage tracks with the practicality of linear lighting profiles in a single product. VIAVAI was developed for both direct and indirect lighting of environments and is also available in the version for wall installation. The light sources are extremely easy to install with a simple gesture, through the use of an innovative snap system.
The VIAVAI MONO track is made of extruded aluminum and finished with epoxy paint in black and white colours. It is cuttable to size. VIAVAI MONO can be installed with direct attachment to the wall or ceiling. It can be suspended or recessed through 4 different fixing systems. Maximum capacity 10A.
The VIAVAI DUO track is made of extruded aluminum and finished with epoxy paint in black and white. It is cuttable to size. VIAVAI DUO is available in the version for wall or suspended installation. Maximum capacity 10A per line.
This product belongs to collection:
Specifications
Material
Aluminium, Metal
