TrendVario 6300

The TrendVario 6300 creates more parking spaces in a small area.

The entrance to the TrendVario 6300 is at ground level. Unlike the other models, the system accommodates three vehicles one above the other, and the parking spaces are moved vertically and horizontally: down into the pit or up to the third parking level. The requested parking space is moved into position. This means that they accommodate more cars within the same floor area.

For maximum operating safety, the access level is secured from the entire system by gates. This also protects the vehicles from theft and vandalism. The semi-automatic parking system offers up to 29 parking spaces in total.

You can also enhance your TrendVario 6300 with our premium accessorires.

SPECIFICATION:

For independent parking

10 grids behind each other – up to 29 parking spaces are possible

Building height: 325 cm to 460 cm in 5 cm increments

Pit depth: 175 cm to 240 cm in 5 cm increments

Vehicle dimensions: height 150 cm to 215 cm, length 500 cm  to 520 cm

Usable platform width: 230 cm to 270 cm

Platform load: 2,000 kg per parking space, optionally 2,600 kg or max. 3,000 kg

Horizontal access to all parking levels

Platform coating: StandardGrip, optional AluLongLife or EasyWalk

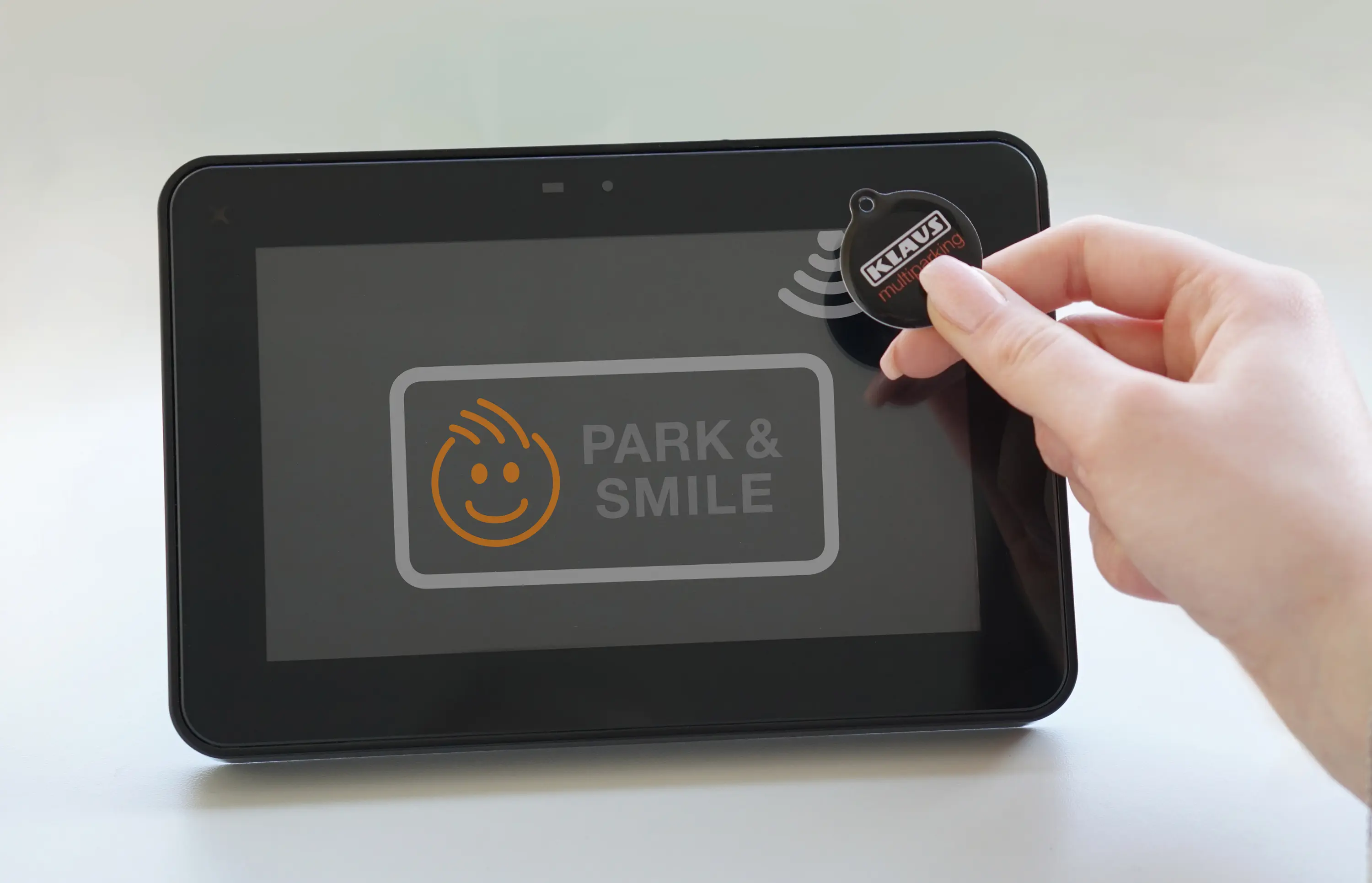

Operation via SmartChip, SmartPortable or SmartApp

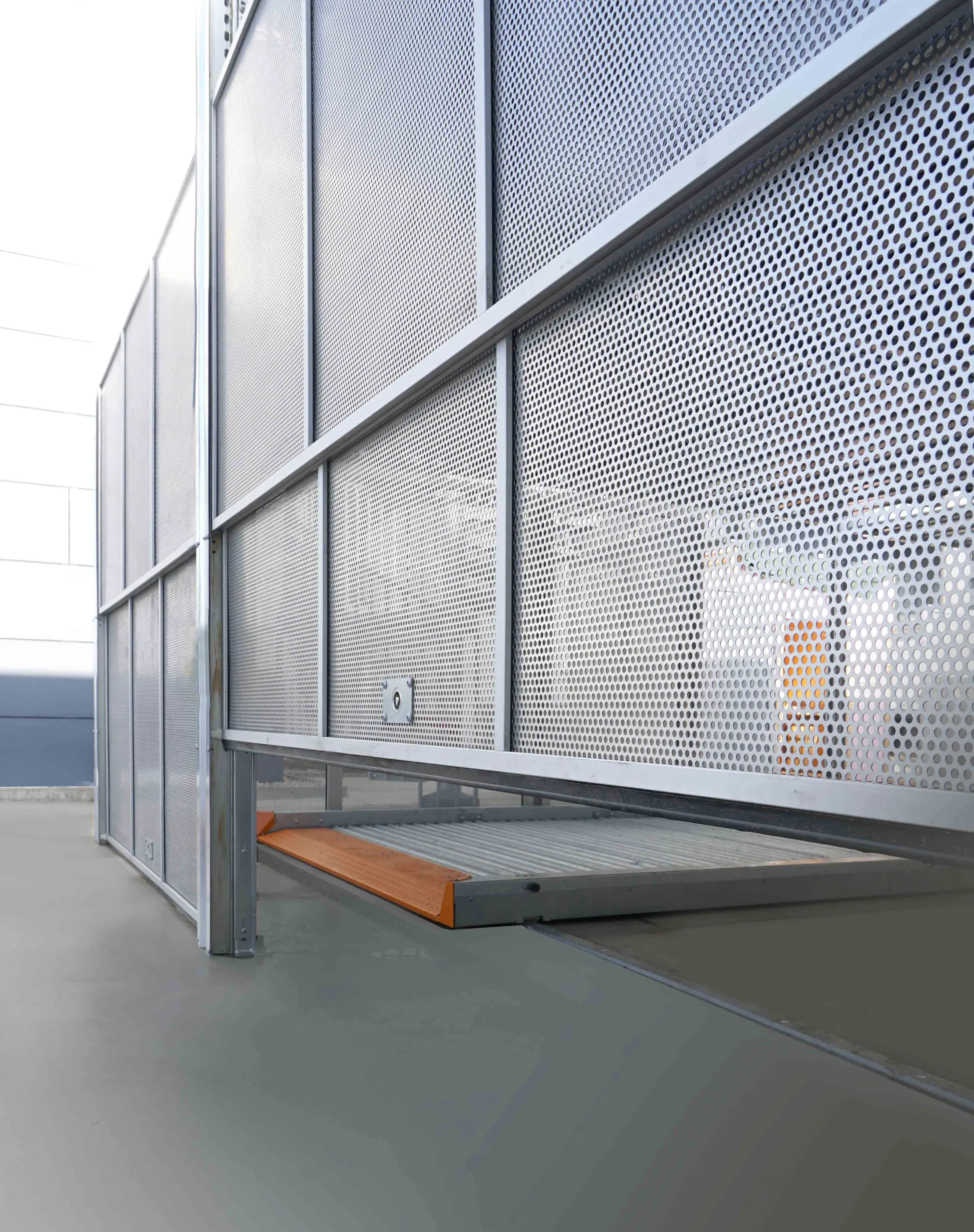

SPECIFICATION GATES:

Standard gates: KLAUS V-Gates, vertical gates, electrically

Electrically sliding gates as an option

Remote control as an option

Gate frame made from extruded aluminium profiles with two vertical centre stay bars for the vertical gate and one vertical centre stay bar for the sliding gate

Standard gating material: perforated aluminium plate

Optional for sliding gates:

Around 50 individual variations are possible in different materials and colours

Glass (laminated safety glass), wood (Nordic spruce), aluminium, steel and many other options available.

Interchangable panels and segments

FIELD OF APPLICATION:

In residential and commercial buildings in large cities

For additional parking spaces in office buildings or residential and commercial buildings

To increase capacity in underground car parks or parking garages, e.g. of hotels

More parking spaces for car dealerships, car rental companies or vintage car collections

Ideal in the case of constructions abutting property lines
