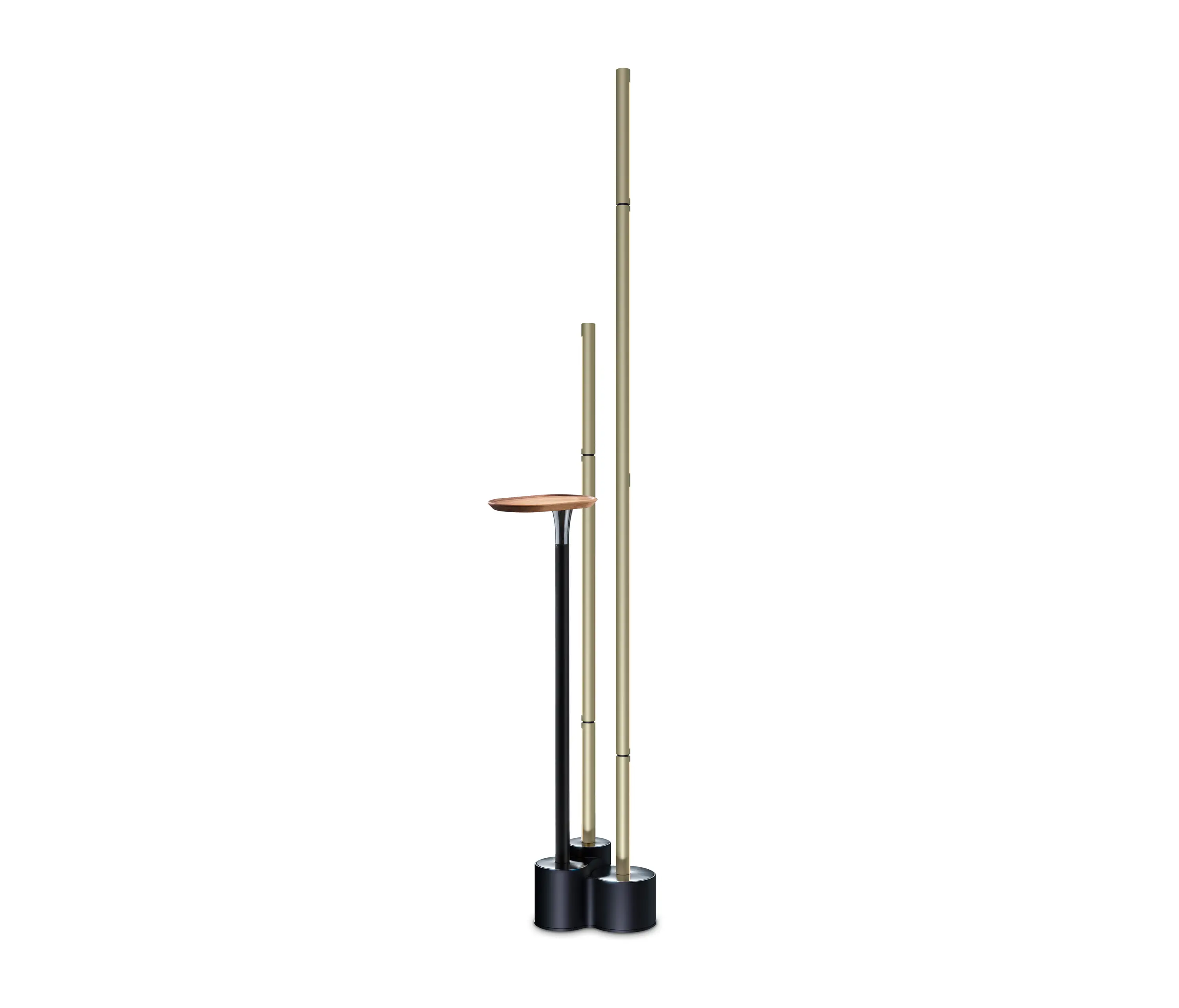

Kendo / James / Base Three - Floor luminaire

The BASE ONE or BASE THREE floor base can accommodate one or up to three KENDO light modulesof any design.

The KENDO modules can be accomponied or replaced by JAMES (charging station) and/or HIYLO (smartspeaker) modules.

BASE ONE / BASE THREE and modules to be ordered separately.

KENDO light module features:

Height adjustable between 0.7 and 2 m

Gesture control, Casambi control (Bluetooth), Tunable White

Performance data: 24 V / LED / 2200-5000 K / CRI >90

Power: 13.6 W (KENDO S), 26.5 W (KENDO M), 40.5 W (KENDO L)

Lumen: 1300 lm (KENDO S), 2400 lm (KENDO M), 3200 lm (KENDO L)

Material: Aluminium

Colours: White, Cream, Basalt, Black

JAMES module features:

Charging station

Supports current Qi standards for wireless charging of smartphones or e-book readers. In addition, devices can be charged by cable via the USB connection accessible from the side.

Qi Fast Charge 5 W | 10 W | 15 W

Ext. USB Type A 5 V | 2 A

Material: Aluminium, steel, walnut

HIYLO module features:

Smartspeaker

High-quality, active smart speaker with 360° sound and app control

Supports Bluetooth, WLAN and multiroom

Two HIYLOs can be combined for true stereo sound

Supports numerous streaming services

Thanks to the active audio crossover, the sound is always rich and brilliant, regardless of the selected volume setting

Enclosure type: Bassreflex

Acoustic principle: 2-way system

Speaker: 1x Low-midrange speaker

2x Full range speaker

Audio: Stereo

Nominal power: 50 W

Sound pressure: 80 dB / 1 m

Frequency range: 60 Hz- 20000 Hz

Net internal volume: 10 L

Connection types: Bluetooth 5.0, WiFi, multiroom

Colours: Matt white / Chrome, Matt black / Chrome
