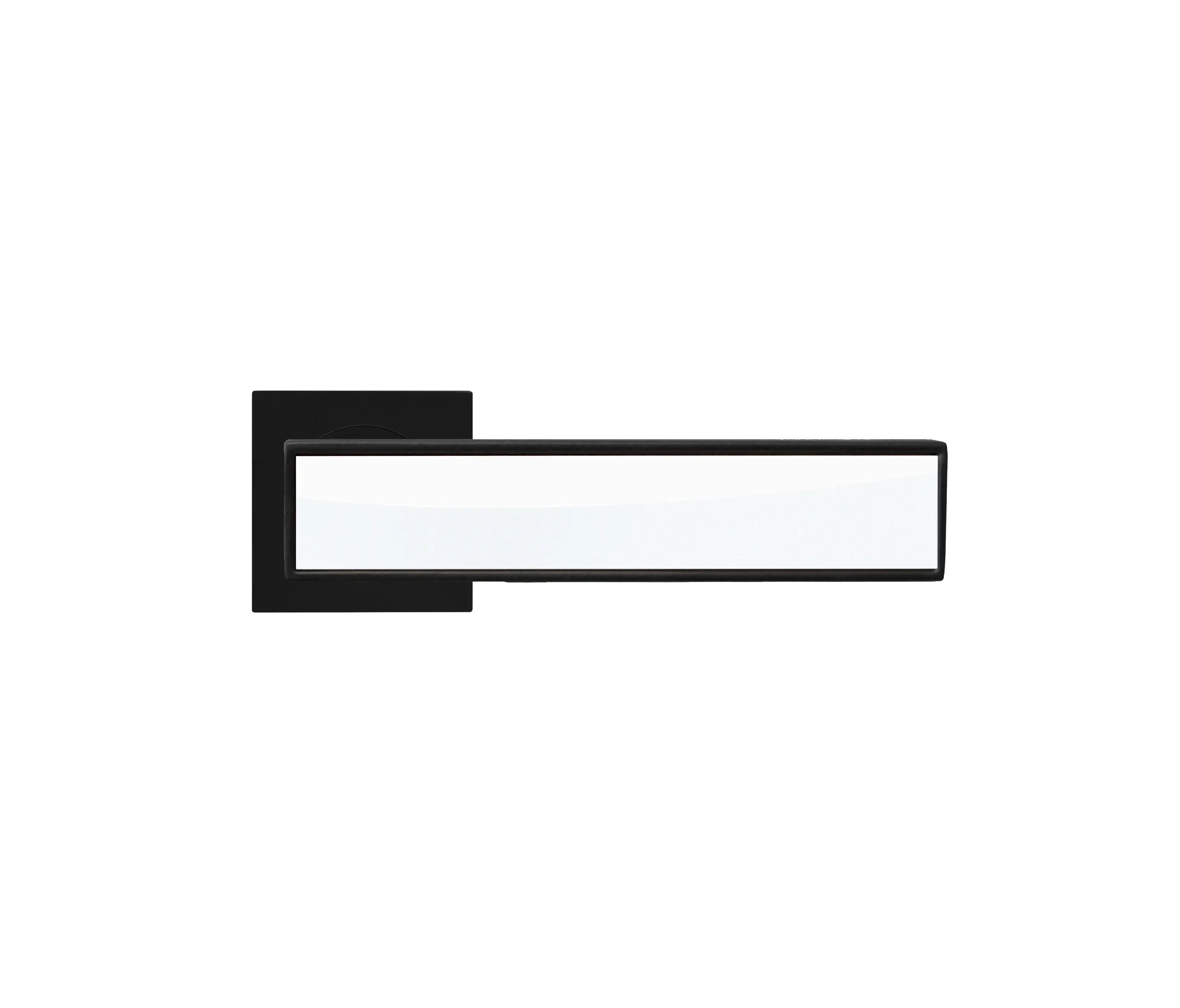

Torino R53Q KW2 (83)

Lever sets for standard doors

Solid 3-piece fixing rose

and escutcheons squared, 52 x 10 mm,

with 7mm lugs and nylon floating bearing,

sprung loaded inner plate with attached lever

Heavy duty bolt through M4 fixings

8mm offset drilled spindle,

diameter of handle: 18 x 28 mm

standard door thickness: 39- 47 mm

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

Finishes: satin nickel (finish code 60), chrome (finish code 50) or cosmos black (83)

Karcher article no. (without inlay):

R53Y OS 60 – without escutcheon

R53Y BB0 60 – supplied with lever key escutcheons

R53Y PZ0 60 – supplied with euro profile escutcheons

R53Y BAD 60 – supplied with bathroom turn/release set

R53Y OS 50 – without escutcheon

R53Y BB0 50 – supplied with lever key escutcheons

R53Y PZ0 50 – supplied with euro profile escutcheons

R53Y BAD 50 – supplied with bathroom turn/release set

Finish: cosmos black (finish code 83)

Inlay: KW2: laminate polished whtite
