Studio One | Door handle | ER60 0S 83

ER60- Studiio One on round 3-piece rose in cosmos black, without escutcheon, category of use 3 according to DIN/EN1906 for door thickness 38mm- 48mm

Material: stainless steel

Colour: cosmos black

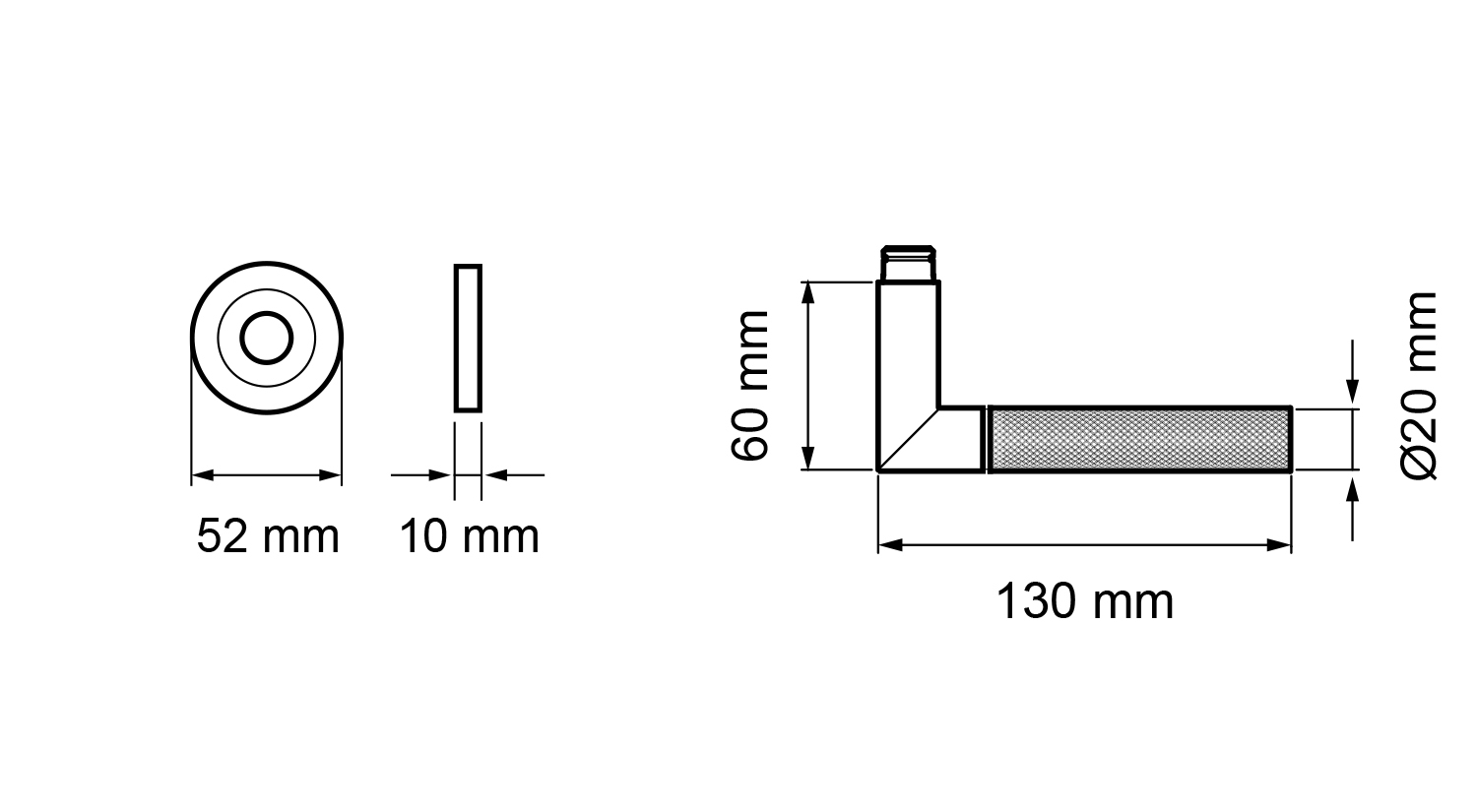

Lever Length: 130 mm

Handle Diameter: 20 mm

Function: without escutcheon

Form: round

Base Construction: 3-piece rose

Rose Edge Shape: angular

Rose Diameter: 52 mm

Rose Description: on round 3-piece rose, sprung

Minimum Standard Door Thickness: 38 mm

Maximum Standard Door Thickness: 48 mm

Standard Mounting Screws: 2 x M4 x 43mm, 2 x M4 x 50mm

Sprung: yes

Turnable, Secured With Circlip: yes

Support Lugs: no

Thickness: 10 mm

Screw Type: concealed fixings

DIN179: no

drill diameter: 7 mm

DIN18273 (fire safety): no

spindle with eccentric hole: 8x8 mm

Mounting Speed: standard

Din1906- (Gk3, Gk4 Or Uncertified): GK3

Durability: class 7

Type Of Operation: B- sprung

Corrosion Resistance: class 3

Safety: class 0
