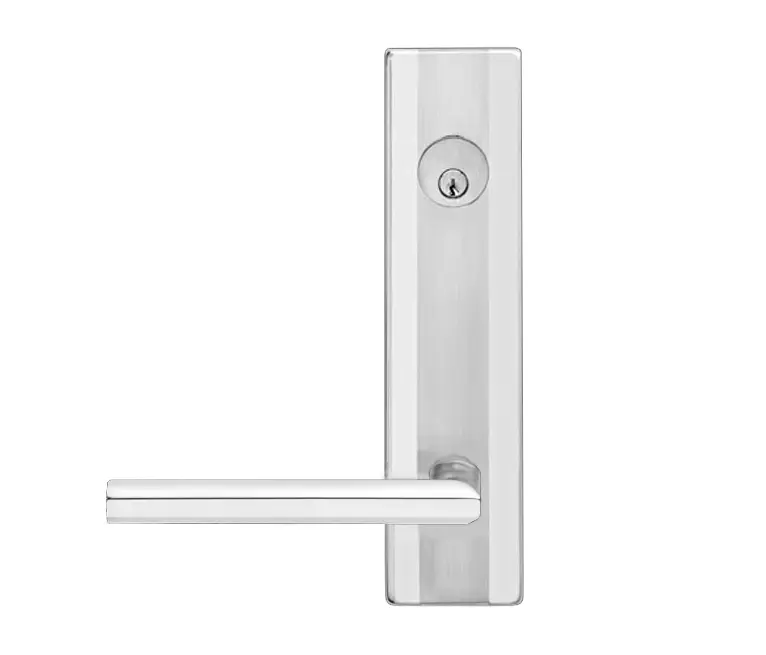

Porto UEL43 (73)

Porto on plate UEL43 73

• Lever model: ER43 Porto

• Suits on 2 1/8” (54mm) hole and center to center 5 1/2” (140mm)

• Dimensions: 9 7/8“ x 2 3/8“ x ½“ (250 x 60 x 12mm)

• Standard door thickness 2 1/8“ (55mm) and 2 9/16“ (65mm)

• Distance ring (UZ D2 71) required for 1 3/8“ (35mm) to 1 ¾“ (45mm)

• Passage latch with standard Backset 2 3/8” (60mm)

• Stainless steel T-strike plate with plastic dust cover

• Stainless steel strike plate with plastic cover

• Stainless steel latch face plate

• Entrance version and Patio Version:

Dead bolt latch: adjustable with a backset of 2 3/8″ (60 mm) and 2 3/4″- (70 mm)

• Entrance version:

Solid Brass Cylinder with 5 pins and C keyway

Functions: Entrance door plate with single cylinder deadbolt and passage lever (LA), passage (PA), Full Dummy (DUM), Pation (PAT)

Special options

• UEZ D2 71 (Distance Ring): For door thickness 1 3/8″- 1 3/4″ (35- 45 mm) a distance ring is required

• UZ2500 LS 71 Full Lip strike

• UZ2570 Passage Latch with 2 3/4” (70mm) backset

Finish: polished/satin stainless steel (finish code 73)

Karcher article no.:

UEL 43 LA 73: Entrance set with lever Porto

UEL 43 PAS 73: Passage set with lever Porto

UEL 43 DUM 73: Full Dummy set with lever Porto

UEL 43 PAT 73: Patio set with lever Porto
