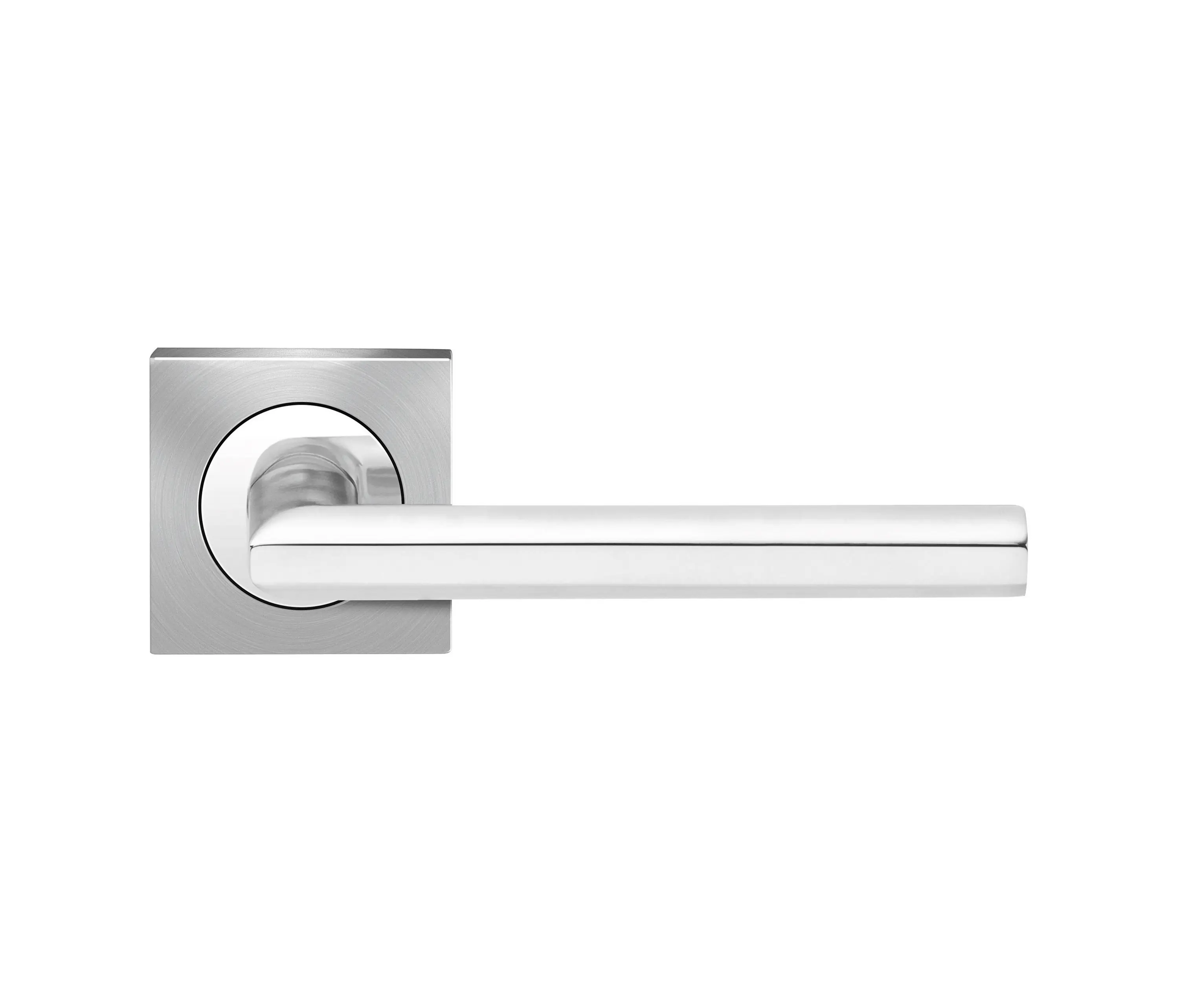

Porto ER43Q (73)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

Lever version ER48 Oregon

by KARCHER DESIGN

Solid 3-piece fixing rose

and escutcheons squared, 52 x 10 mm,

with 7mm lugs and nylon floating bearing,

sprung loaded inner plate with attached lever

Heavy duty bolt through M4 fixings

8mm offset drilled spindle,

diameter of handle: 18 x 25 mm

standard door thickness: 40- 45 mm

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

FS – supplied as fire-resisting set

Finish: satin/pol. stainless steel (finish code 73)

Karcher article no.:

ER48 OS 73 – without escutcheon

ER48 BB0 73 – supplied with lever key escutcheons

ER48 PZ0 73 – supplied with euro profile escutcheons

ER48 BAD 73 – supplied with bathroom turn/release set

ER/FS48 PZ0 73 – supplied as fire-resisting set

ER48Q OS 73 – without escutcheon with lever rose

ER48Q BB0 73 – supplied with square lever key escutcheons

ER48Q PZ0 73 – supplied with square euro profile escutcheons

ER48Q BAD 73 – supplied with square bathroom turn/release set

Finish: satin stainless steel (finish code 71)

Karcher article no.:

ER48 OS 71 – without escutcheon

ER48 BB0 71 – supplied with lever key escutcheons

ER48 PZ0 71 – supplied with euro profile escutcheons

ER48 BAD 71 – supplied with bathroom turn/release set

ER/FS48 PZ0 71 – supplied as fire-resisting set

ER48Q OS 71 – without escutcheon with lever rose

ER48Q BB0 71 – supplied with square lever key escutcheons

ER48Q PZ0 71 – supplied with square euro profile escutcheons

ER48Q BAD 71 – supplied with square bathroom turn/release set
