Joulia | Inline 3P-R

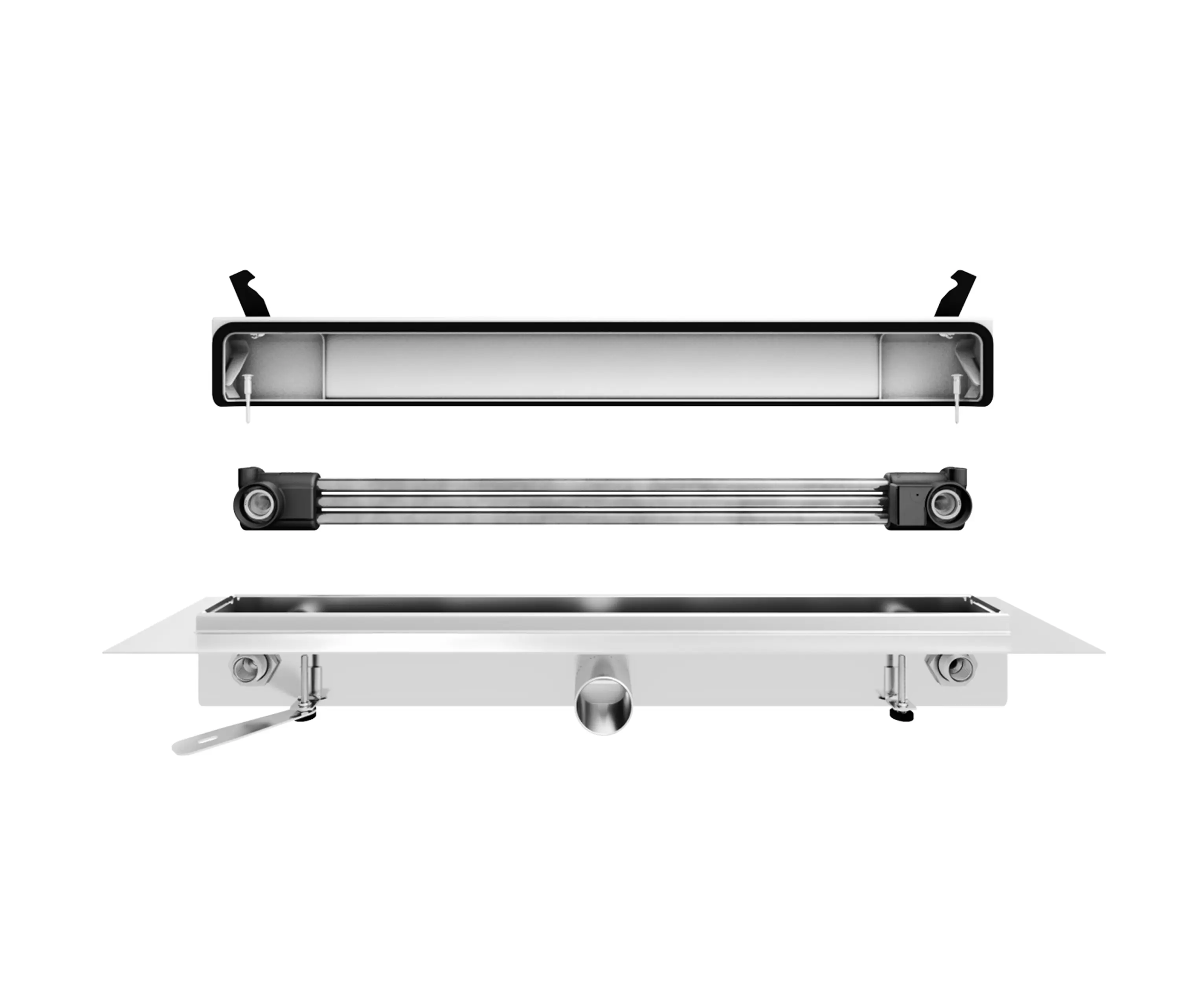

JOULIA-INLINE shower drain channel with integrated 3-pipe-heat exchanger, for room-side mounting. Stainless steel V2A channel body, stained and passivated. Length incl. sealing flange 837 mm, width 168 mm. 89 mm installation height up to top edge, 72 mm up to sealing flange (50 mm not sanded). Central positioned, horizontal waste water outlet DN50. Incl. cold water IN/OUT connection with 1/2″ female thread (pre-installed back-flow preventor), incl. stainless steel V2A siphon hood 3P-pipe green coloured, with 50 mm water trap, drain performance 48 l/min., incl. 4 levelling feet M6, adjustment height +40 mm, incl. 2 plates for room-side feet fixation, incl. acoustic leckage alarm (Buzzer), incl. protective cover, construction according EN 1253, drinking water-certified according KIWA, SVGW, WRAS & DVGW.
