About this product
Architonic ID: 20164218

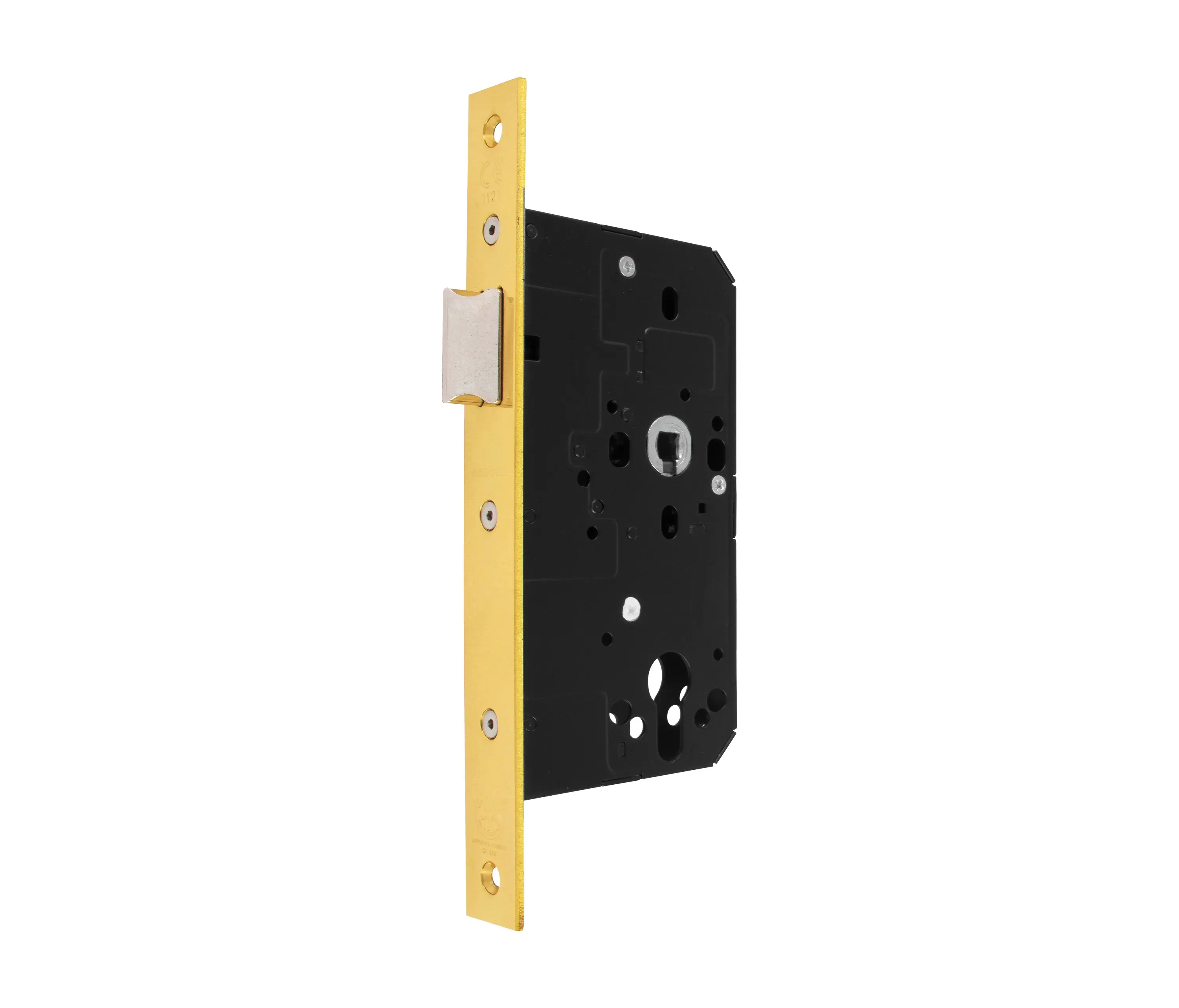

AR911 HOPPE-ARRONE mortice latch case:
Function: Latch bolt operation
Forend/strike material: Stainless steel
Forend type: Single
Certifire approved: CF530; DOP: HUK0009
BS EN 12209: 3 | X | 8 | 1* | 0 | G |- | B | 0 | 3 | 0
CE Marked(BS EN 12209)
Testing: BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
Meets dimensional recommendations of BS 8300 and ADM for locks
*The AR911 series lock case has been successfully fire tested with the use of an intumescent kit.
Product References:
60 mm backset
grade 304- square forend:
AR911-S-60-SSS-A2 upright mortice latch case in satin stainless steel
AR911-S-60-PSS-A2 upright mortice latch case in polished stainless steel
AR911-S-60-PB upright mortice latch casein polished brass
AR911-S-45-SSS-A2 45 mm backset upright mortice latch case in satin stainless steel
AR911-S-50-SSS-A2 50 mm backset upright mortice latch case in satin stainless steel
AR911-S-55-SSS-A2 55 mm backset upright mortice latch case in satin stainless steel
AR911-S-80-SSS-A2 80 mm backset upright mortice latch case in satin stainless steel
Concept
Most doors within a building require a method of either locking or latching after every closing cycle. HOPPE ARRONE range of rim and mortice locks and latches gives a wide variation of locking and latching functions for public, commercial and internal residential building door sets. Available in a DIN standard or UK standard offering, our lock and latch ranges have been tested to the requirements of BS EN12209, CE marked and CERTIFIRE approved where applicable for use on the heaviest or lightest of duty doors.
Specifications
Usage
Interior construction
Variants
2
You can visit the product page for these variants—just click on them!
Design files
9
