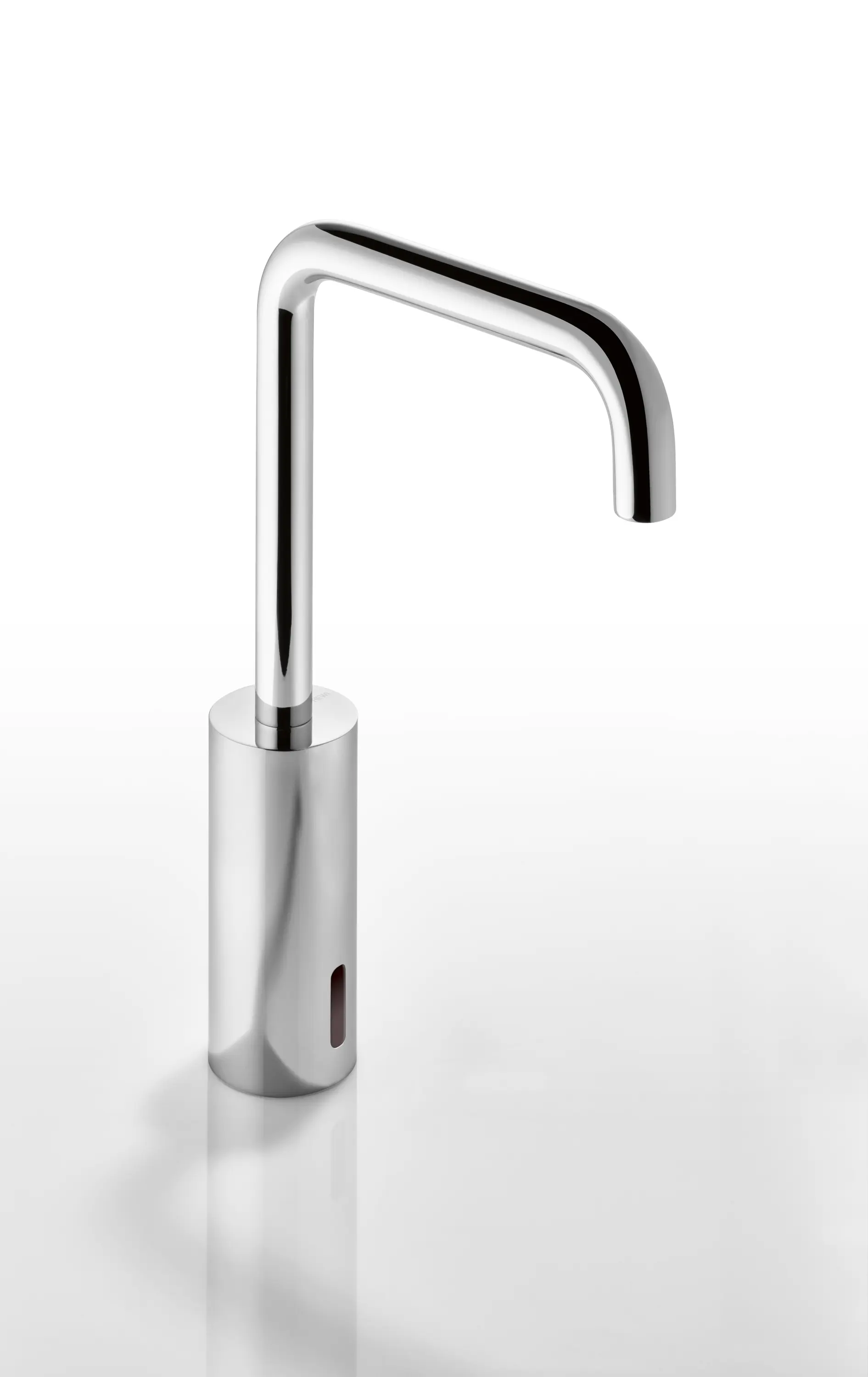

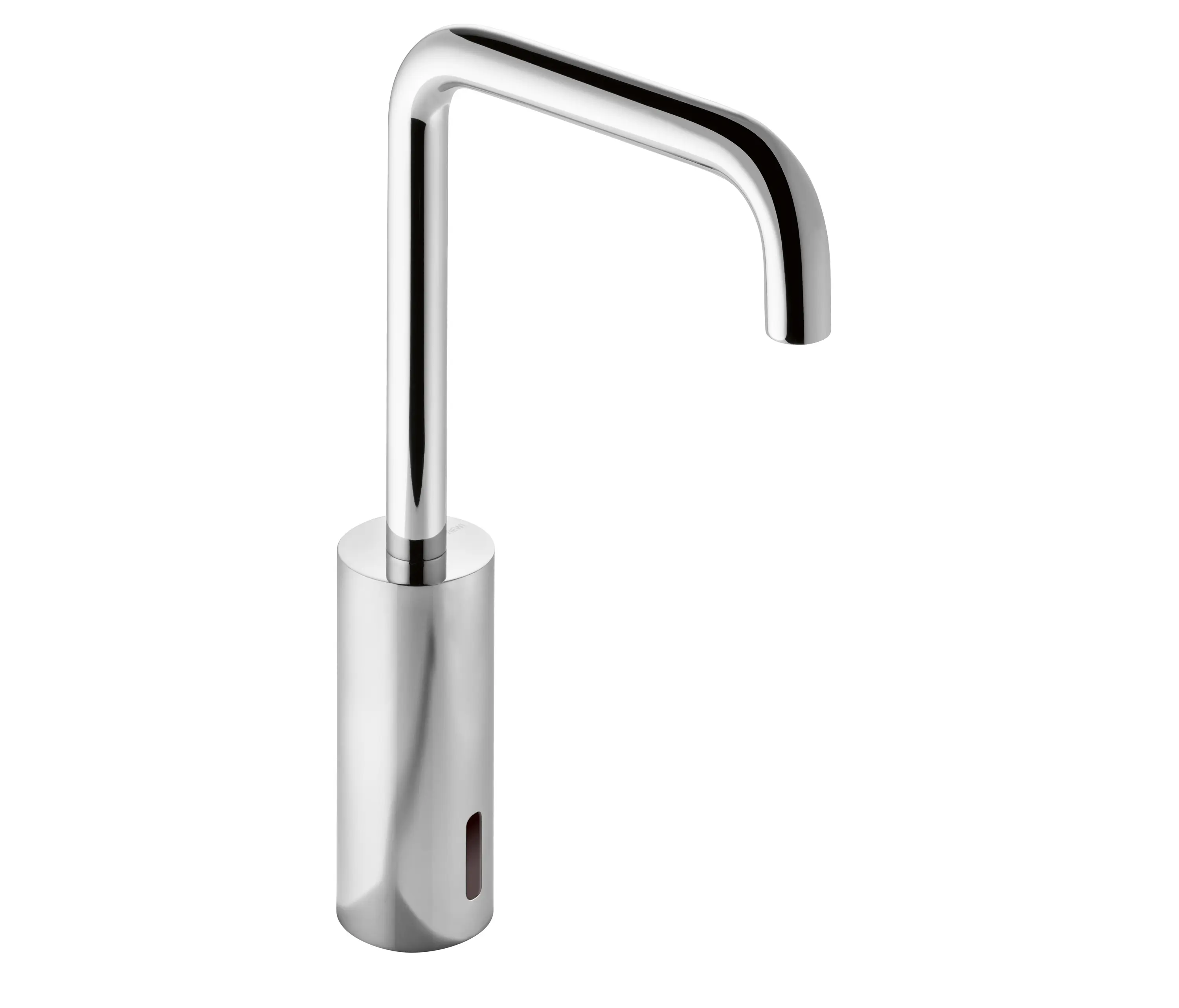

SENSORIC Electronic washbasin fitting
Architonic ID: 20179866
SKU: AQ1.12S22040
Year of Launch: 2019
Electronic washbasin fitting
- high-quality chrome-plated, round tube
- Flow rate 5 l/min
- Mains operation 230 V
- for cold and mixed water
- Cold water: 3/8" T-distributor necessary, see accessories Art. No. 111736
- Laminar jet controller with dynamic flow control 5 l/min, anti-theft protection
- adjustable, active, nuisance tripping-resistant infrared sensors
- Electronic module with adjustable sensing range, hygiene flushing, continuous flushing and cleaning mode
- Sensor parameters preset in the factory: after-run time: approx. 1-2 s, continuous running: max. 4 min, sensing range: 200 mm, cleaning mode: 60 s, hygiene flushing is deactivated
- asymmetrical sensing range, stable object detection
- settings and service also possible by means of app via smartphone, see accessories Art. No. 65713
- safety shutdown in the event of failure of the operating voltage, user-defined settings are retained
- without temperature adjustment lever: hygienic, vandal and misuse resistant
- the preset temperature lies within the comfort zone from 30°C to 36°C
- Temperature settings and adjustment can be easily made during installation due to side access
- Connection via flexible pressure hoses with woven-in hot-cold marking 450 mm long, G 3/8"
- integrated dirt trap screens
- Brass fitting body
- 301 mm high, projection 192 mm
- rigid outlet
- not including waste fittings
- Noise class 1
- suitable for thermal disinfection according to DVGW W 551
- conforms EN 15091
- with WELL Label
Article no.: HEWI AQ1.12S22040
Concept
Clarity in designdesign, security in function: HEWI System fittings combine understated design with technical precision. The reduced style creates visual calm and leaves room for design concepts in the bathroom. Whether with operating lever or sensor-controlled- both operating forms follow a common design language and enable intuitive use. High-quality materials, balanced proportions and finish options ranging from chrome to black matt make them a stylish addition to modern sanitary architecture.
This product belongs to collection:
Deck-mounting
