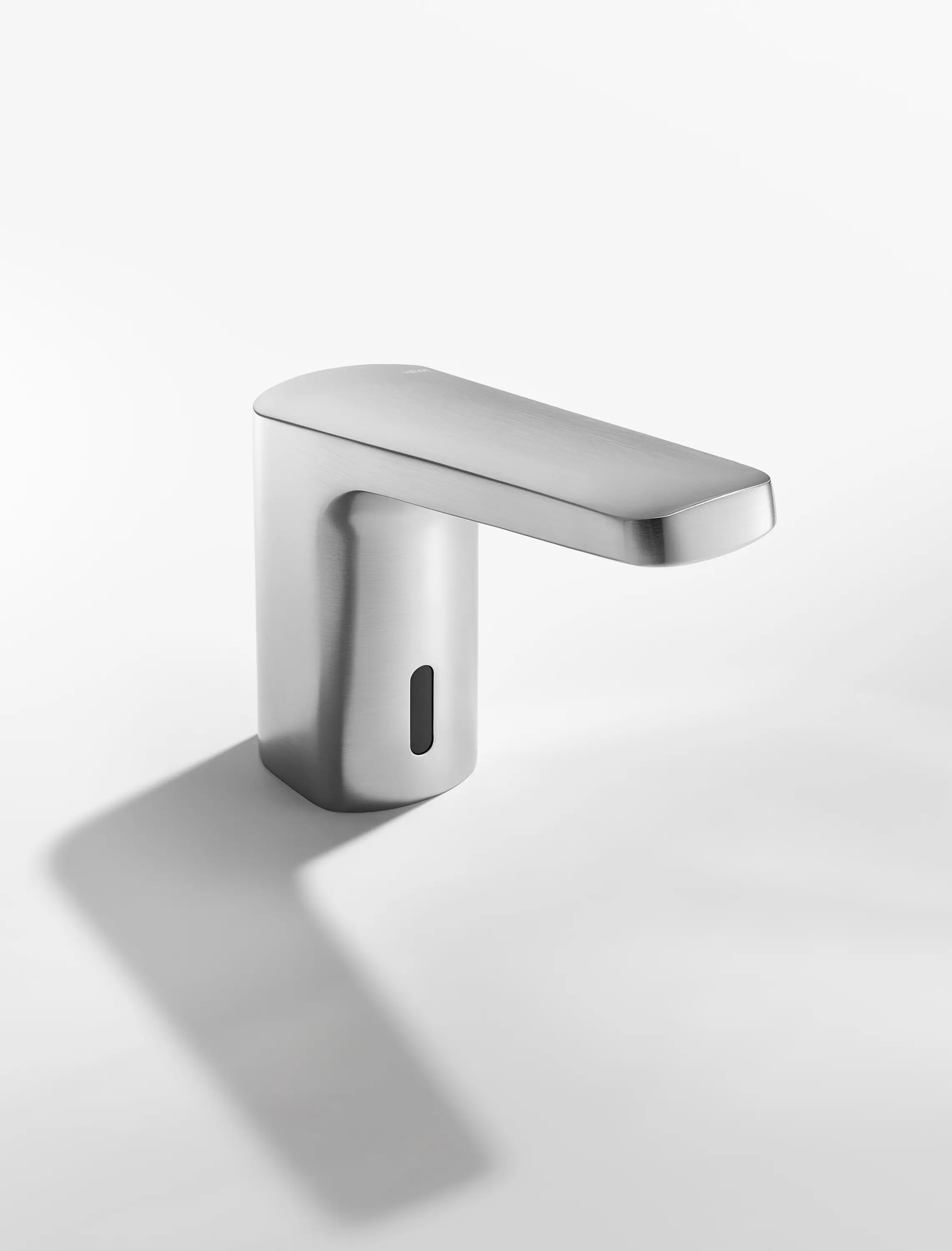

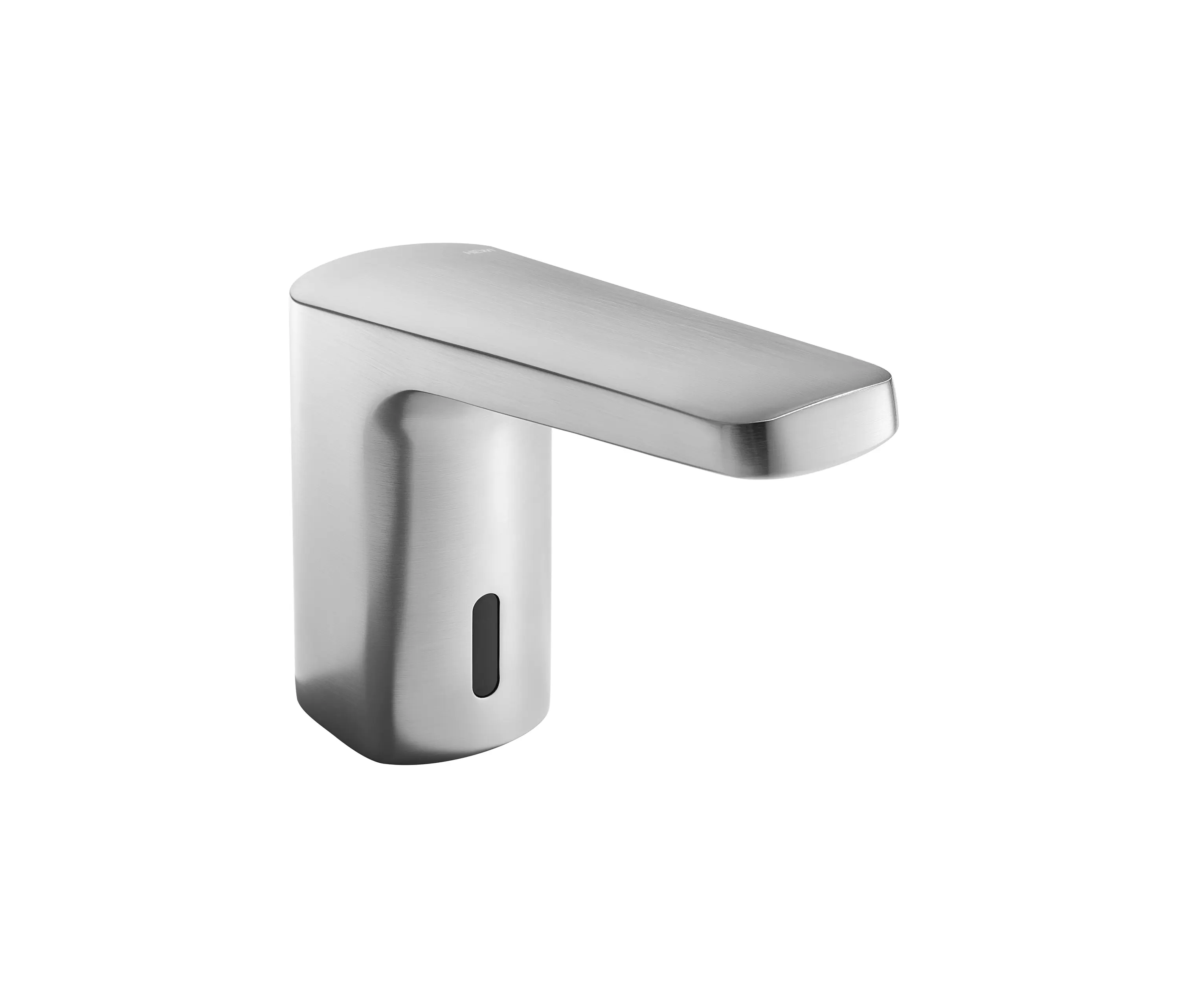

SENSORIC Electronic washbasin fitting

Available variants:

SENSORIC Electronic washbasin fittingSENSORIC Electronic washbasin fitting
Visit product on HEWI website
    Home/Wash basin taps/

    SENSORIC Electronic washbasin fitting

About this product

Architonic ID: 20179864

SKU: AQ1.12S210XA

Year of Launch: 2020

Electronic washbasin tap

- PVD coated stainless steel look, cubic

- Flow rate 5 l/min

- Mains operation 230 V

- For cold and mixed water

- Cold water: 3/8" T-distributor required, see accessories art. no. 111736

- Laminar jet regulator with dynamic flow rate control 5 l/min, angle adjustable and theft-proof

- Adjustable, active, false trigger resistant infrared sensor system

- Electronic module with adjustable detection range, hygienic flushing, continuous flushing and cleaning mode

- Sensor parameters factory-set: follow-up time: approx. 1-2 s, continuous operation: 4 min, detection range: 200 mm, cleaning mode: 60 s, hygienic flushing is deactivated

- Asymmetrical detection range, stable object detection

- Settings and service also possible via app on smartphone, see accessories art. no. 65713

- Safety cut-out in case of operating voltage failure, user-defined settings are retained

- Without temperature adjustment lever: High hygiene, vandal and misuse proof

- the preset temperature lies in the comfort zone of 30°C to 36°C

- Temperature can be set and adjusted easily during assembly thanks to access on the side

- Connection via flexible pressure hoses with interwoven hot/cold marking 450 mm long, G 3/8"

- integrated dirt strainers

- Brass fitting body

- 145 mm high, 193 mm projection

- rigid spout

- without drain set

- Noise class 1

- suitable for thermal disinfection according to DVGW W 551

- corresponds to DIN EN 15091

- WELL Label in preparation

Article no.: HEWI AQ1.12S210XA

Concept

Clarity in designdesign, security in function: HEWI System fittings combine understated design with technical precision. The reduced style creates visual calm and leaves room for design concepts in the bathroom. Whether with operating lever or sensor-controlled- both operating forms follow a common design language and enable intuitive use. High-quality materials, balanced proportions and finish options ranging from chrome to black matt make them a stylish addition to modern sanitary architecture.
