LED Adjustable mirror
Architonic ID: 20193900
SKU: 802.01.400R
Year of Launch: 2021

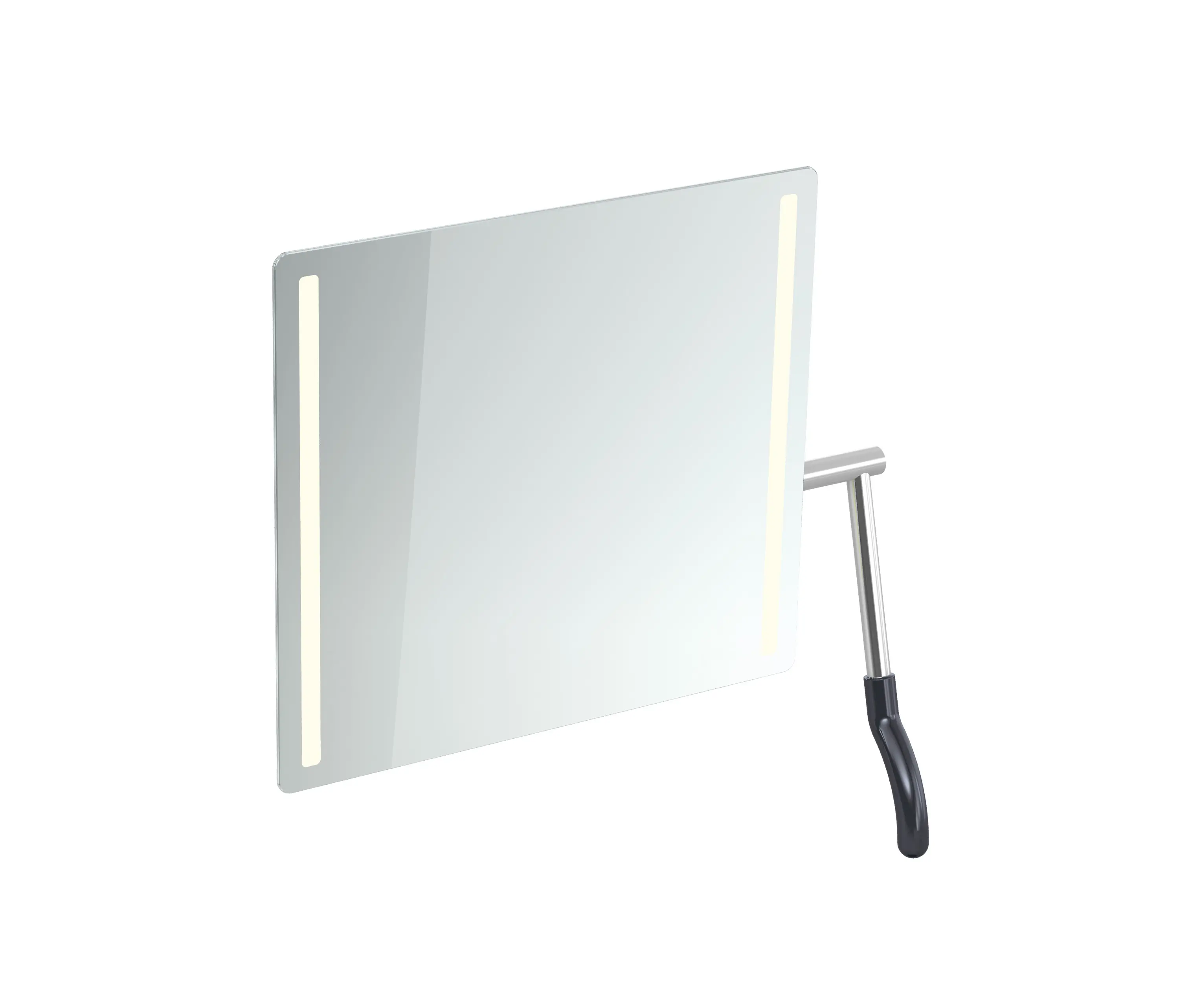

LED tiltable mirror of the 802 LifeSystem range (right lever)
- rectangular illuminated composite mirror with polished edges
- integrated shatter protection and integrated LED lighting on the right and left sides
- easy adjustment of the tilt while seated from 0 to 28°
- for wall mounting
- direct connection 200-240 V
- with two high-quality LED lighting profiles made of aluminium, fixed to the rear of the mirror
- long-life LED in neutral white light colour, approx. 4000 Kelvin, total output approx. 9.6 W
- LED and ballast protected, protection class II, degree of protection IP 44
- mirror 600 mm wide, 540 mm high and 6 mm thick
- mirrors made of laminated glass
- Energy efficiency class A++, A+, A according to Regulation (EU) 874/2012
- lever right
- 725 mm wide, 741 mm high and 69 mm deep, clear dimension wall distance handle 172 mm, 310 mm dimension handle with 28° tilt
- simple and concealed installation with the enclosed corrosion-free HEWI fixing material
- chrome-plated aluminium handlebar
- axle in powder coated matt aluminium
- with ergonomically shaped polyamide handle in selected HEWI colours
- CE marking according to EMC 2004/108/EV
- l/r version from the viewing direction of the user
Article no.: HEWI 802.01.400R
Concept
HEWI LifeSystem combines functional intelligence with design clarity. The system has a modular structure, can be used flexibly and is designed for different equipment scenarios. The elements can be adapted, supplemented and precisely aligned to the user. Ergonomic details, restrained design, robust materials and a clear color system create security, comfort and convenience and visual calm in the room. LifeSystem supports care processes as well as independence- technically well thought-through, creatively consistent.
This product belongs to collection:
Luminous, Wall-mounted
Inclusive design
