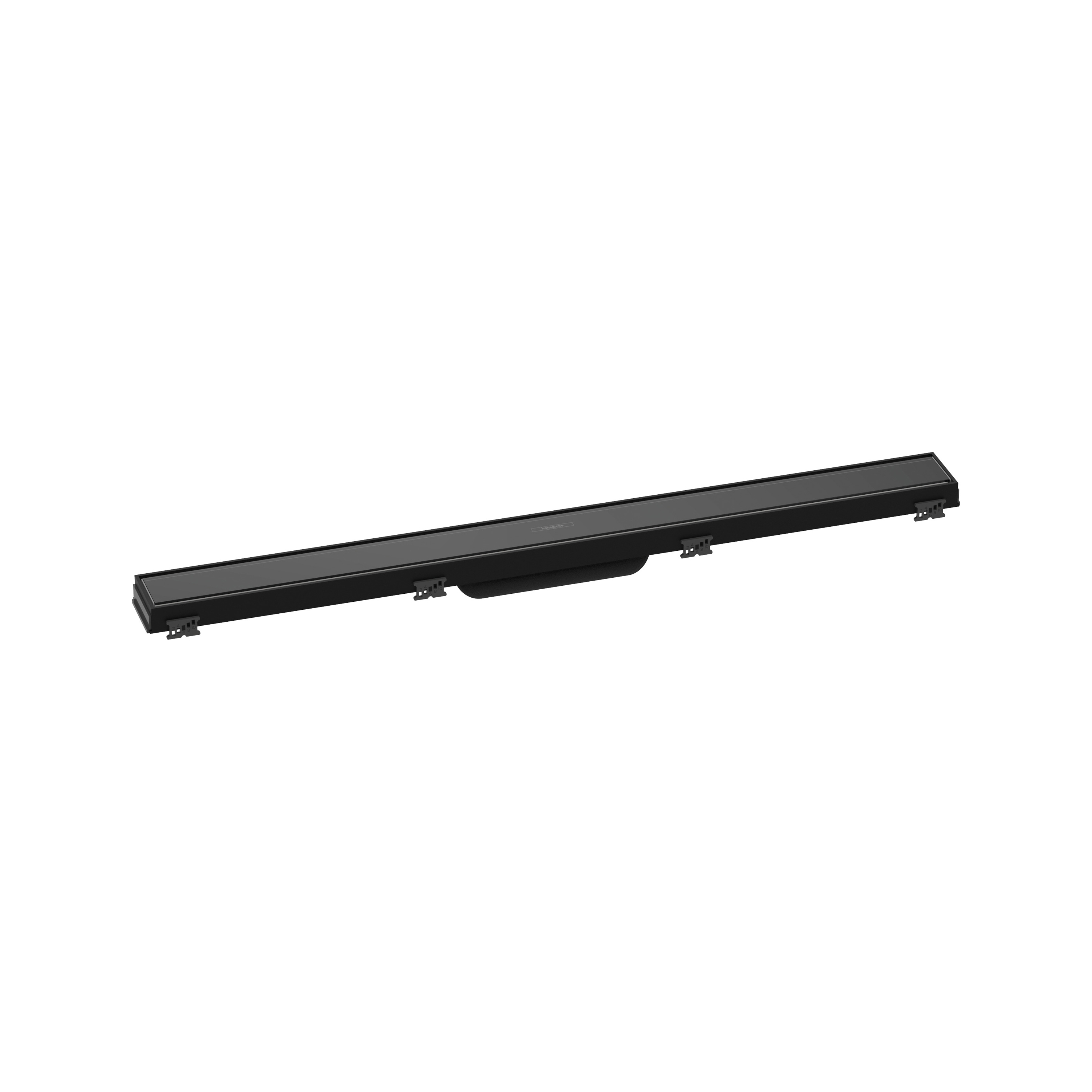

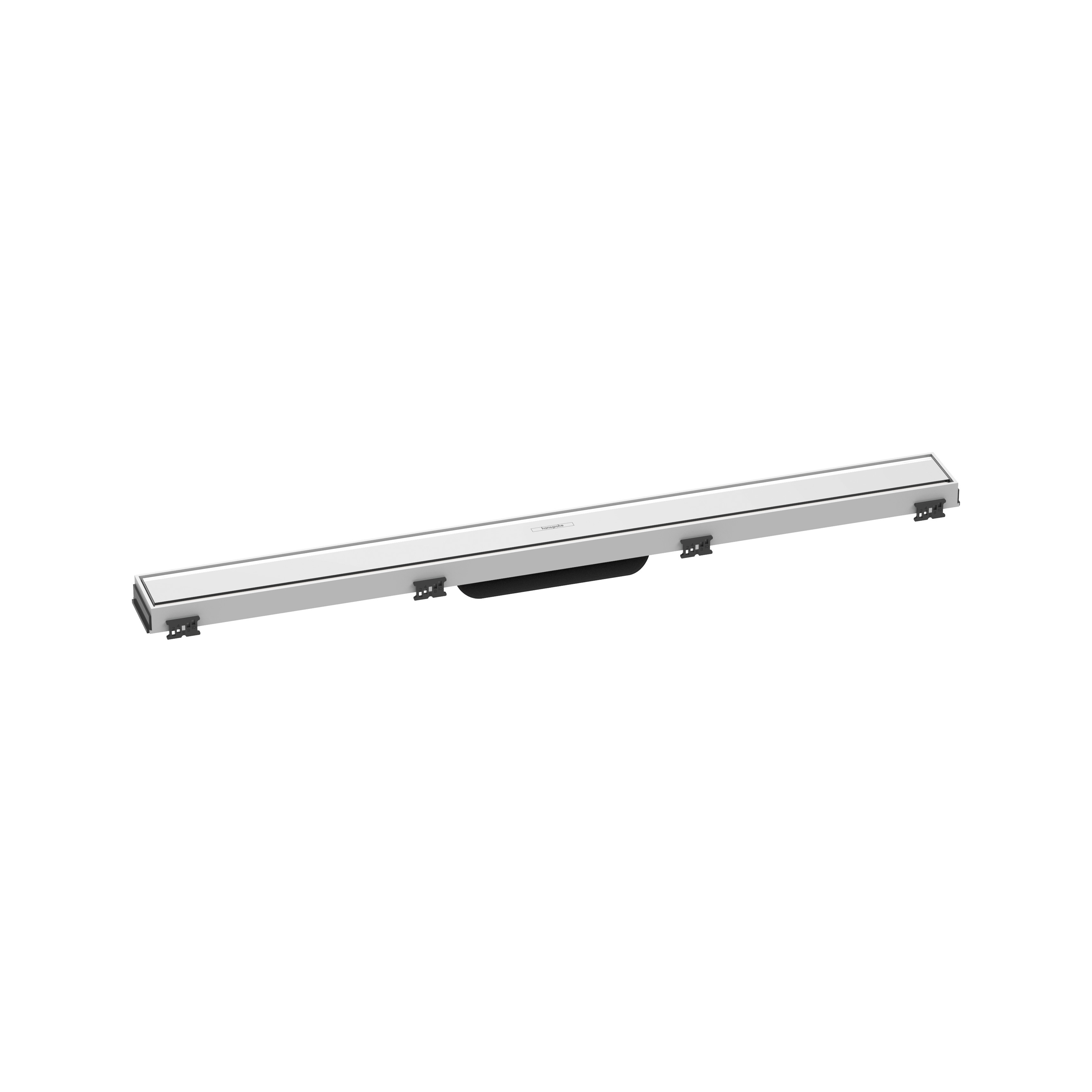

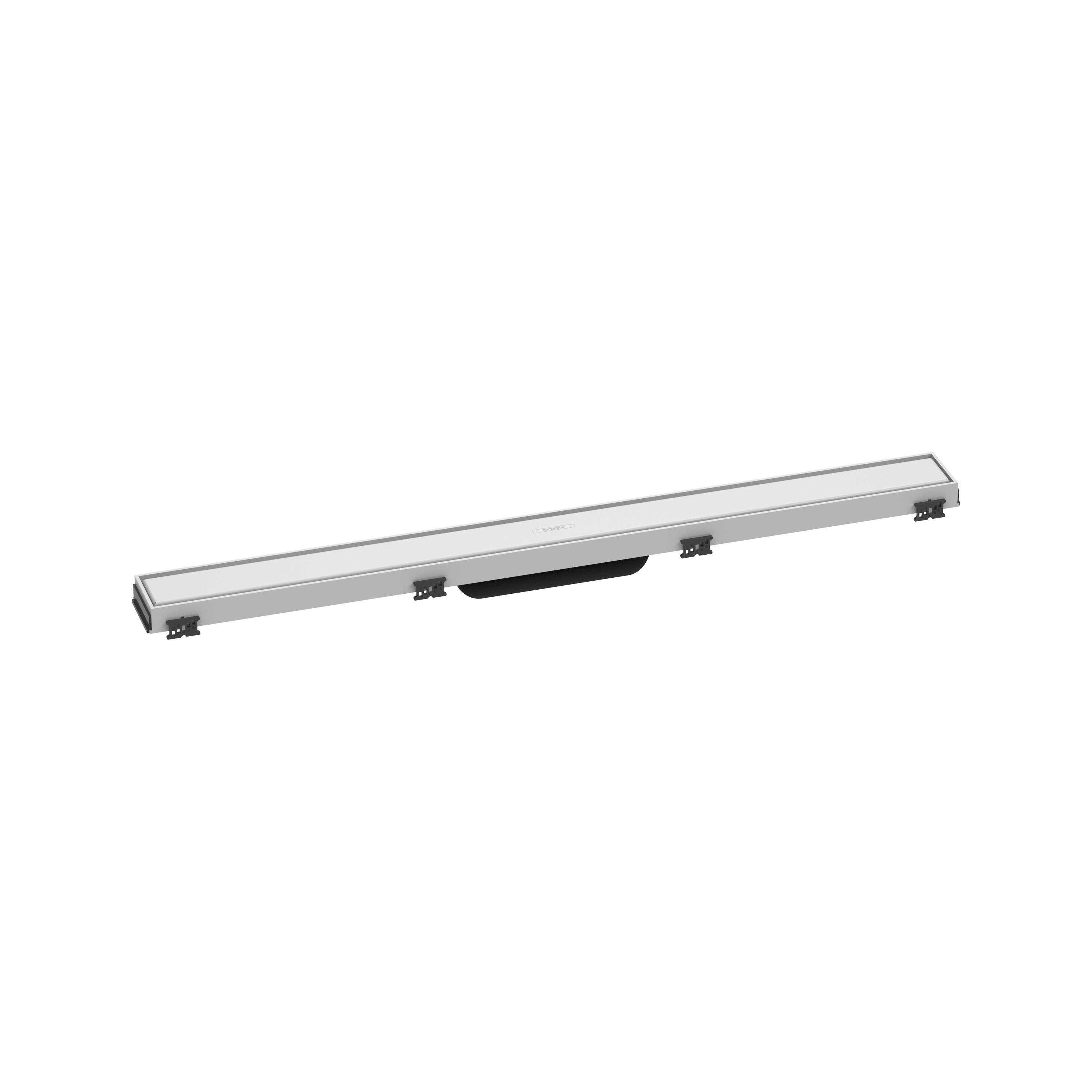

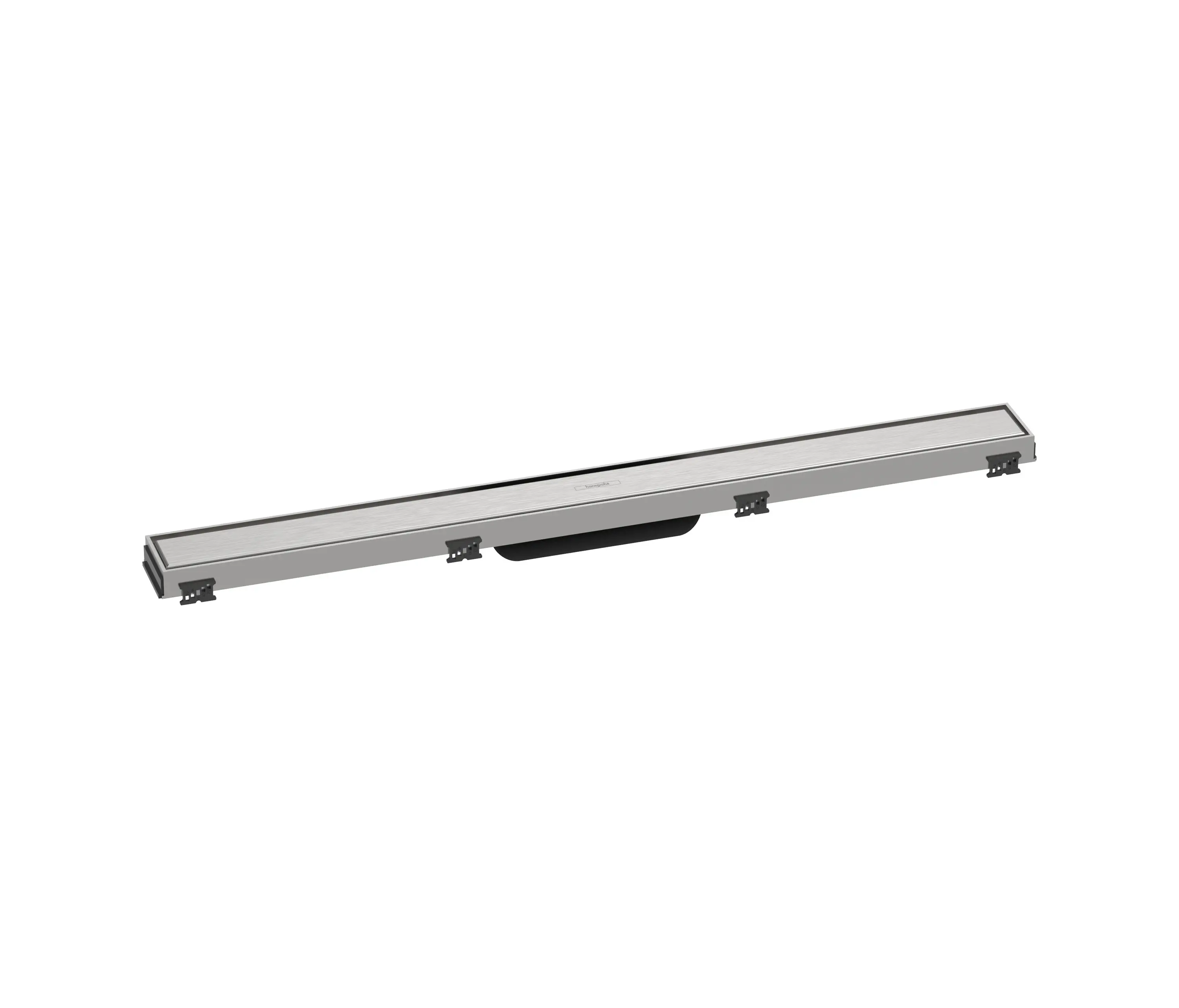

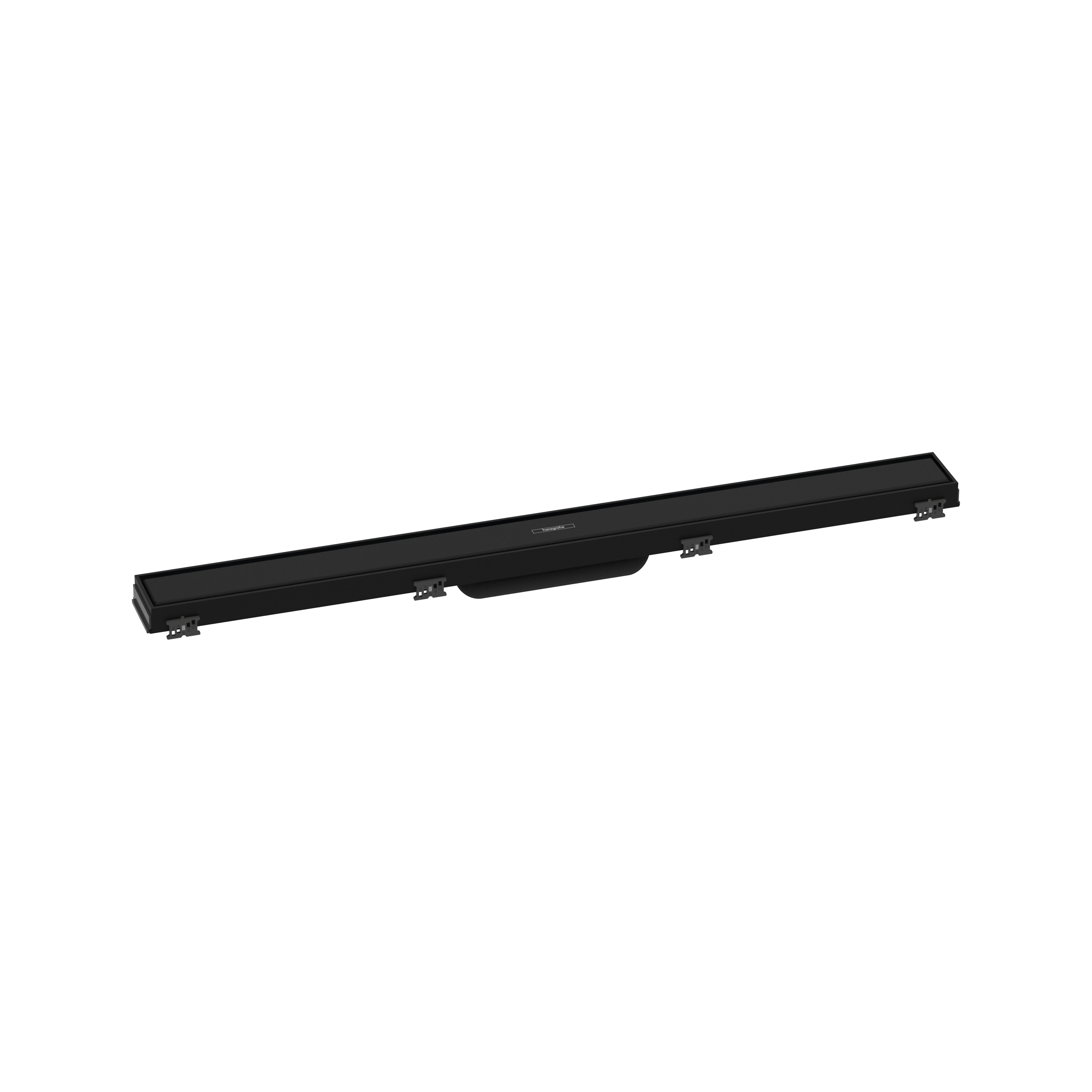

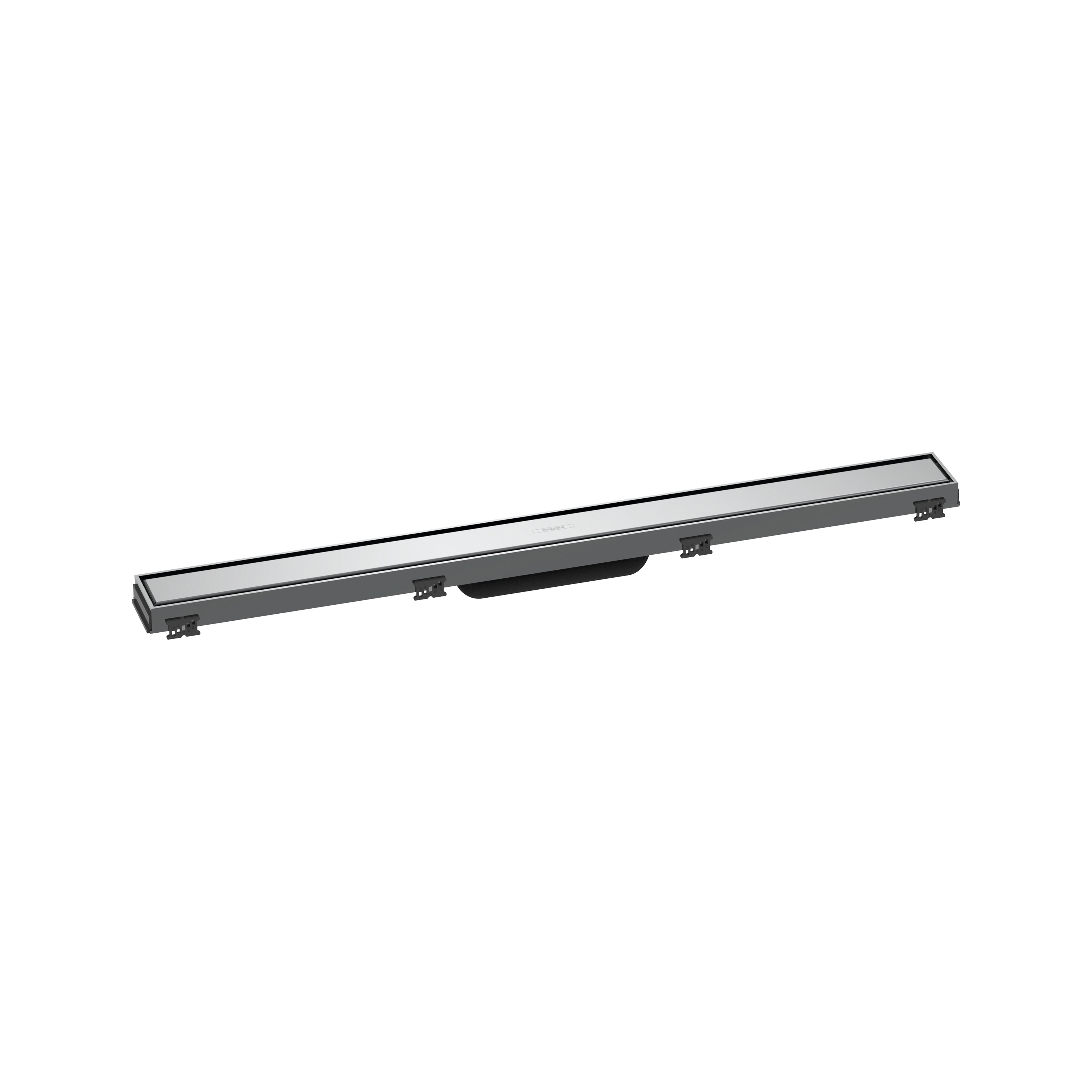

RainDrain Match Finish set shower drain 800 with height adjustable frame

• consists of: design grate, height adjustable frame, wall installation flange, Dryphon

• mounting type: wall-mounted, free in the floor

• easy to clean surface

• easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)

• tile thickness: up to 18 mm

• suitable for any type of tile

• up to 60 l/min drainage capacity

• where to use: new construction, renovation

• grate removal tool allows easy removal of the finish set

• type of odour seal: mechanical

• Dryphon enables waterless siphon system

• minimal installation height: 84 mm (flat uBox), 102 mm (standard uBox)

• wall mounting possible

• tile inlay depth: 12 mm

• grate material: Stainless Steel 304 (1.4301)

• suitable for primary and secondary drainage

• frame width: 62 mm

Color : Brushed Stainless Steel

Height : 25

Width : 81

Length/Depth : 755

Weight (net) : 1.99KG

Volume : 13.633 CDM
