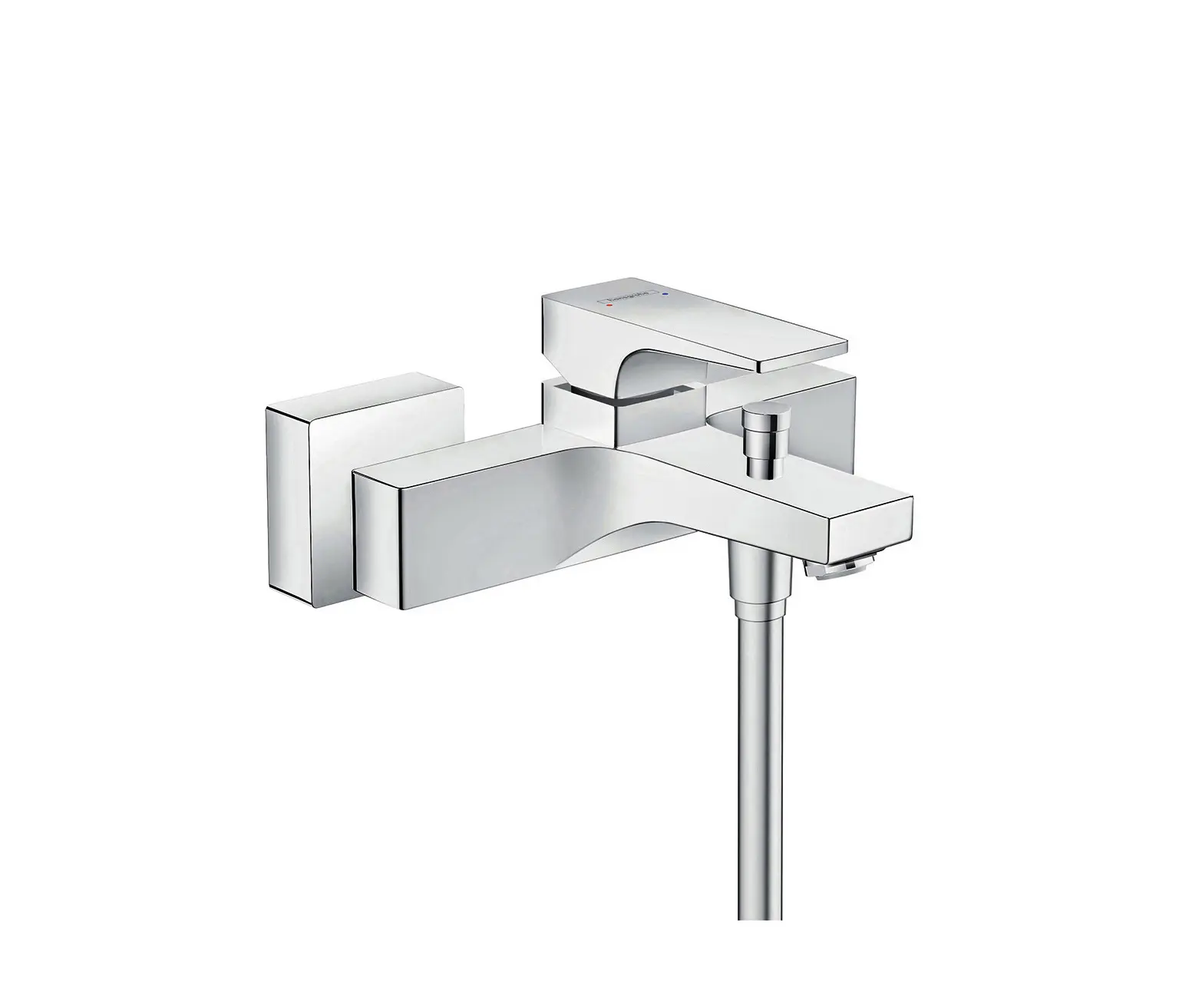

Metropol Single lever bath mixer for exposed installation with lever handle

• 2 functions

• projection: 180 mm

• centre distance: 150 ± 12 mm

• spray type mixer: normal spray

• maximum flow rate at 3 bar: 22 l/min

• flow rate for bath spout at 3 bar: 22 l/min

• flow rate of hand shower at 3 bar: 16 l/min

• ceramic cartridge

• temperature limitation adjustable

• diverter with automatic resetting

• protected against backflow, according to DIN EN 1717

• suitable for continous flow water heaters

• connection dimension: DN15

• connection type: S-connections

• wall-mounted

• min. operating pressure: 1 bar

• max. operating pressure: 10 bar

Color : Chrome

Height : 159

Width : 219

Length/Depth : 193

Weight (net) : 2.619KG

Volume : 6.528 CDM
