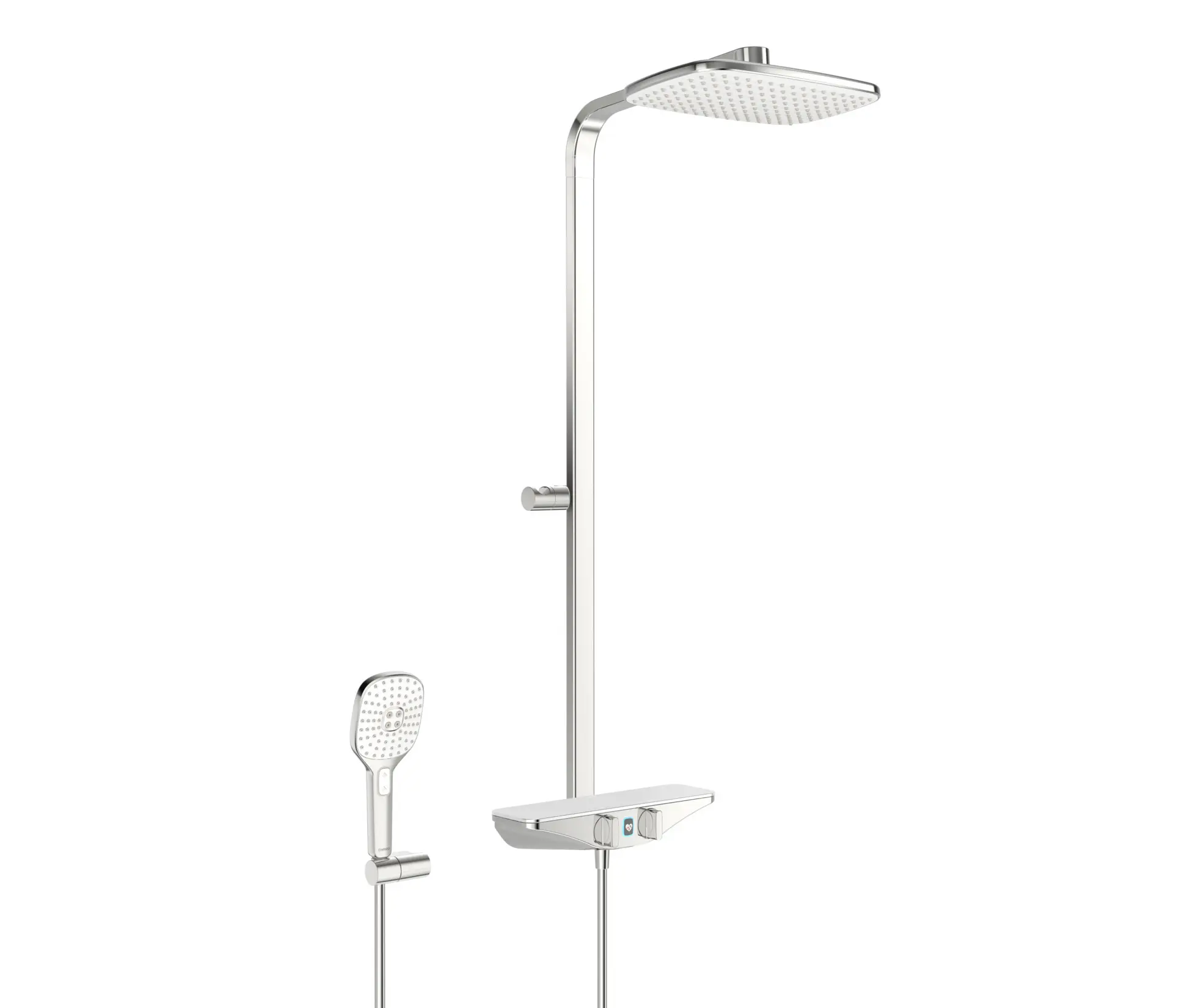

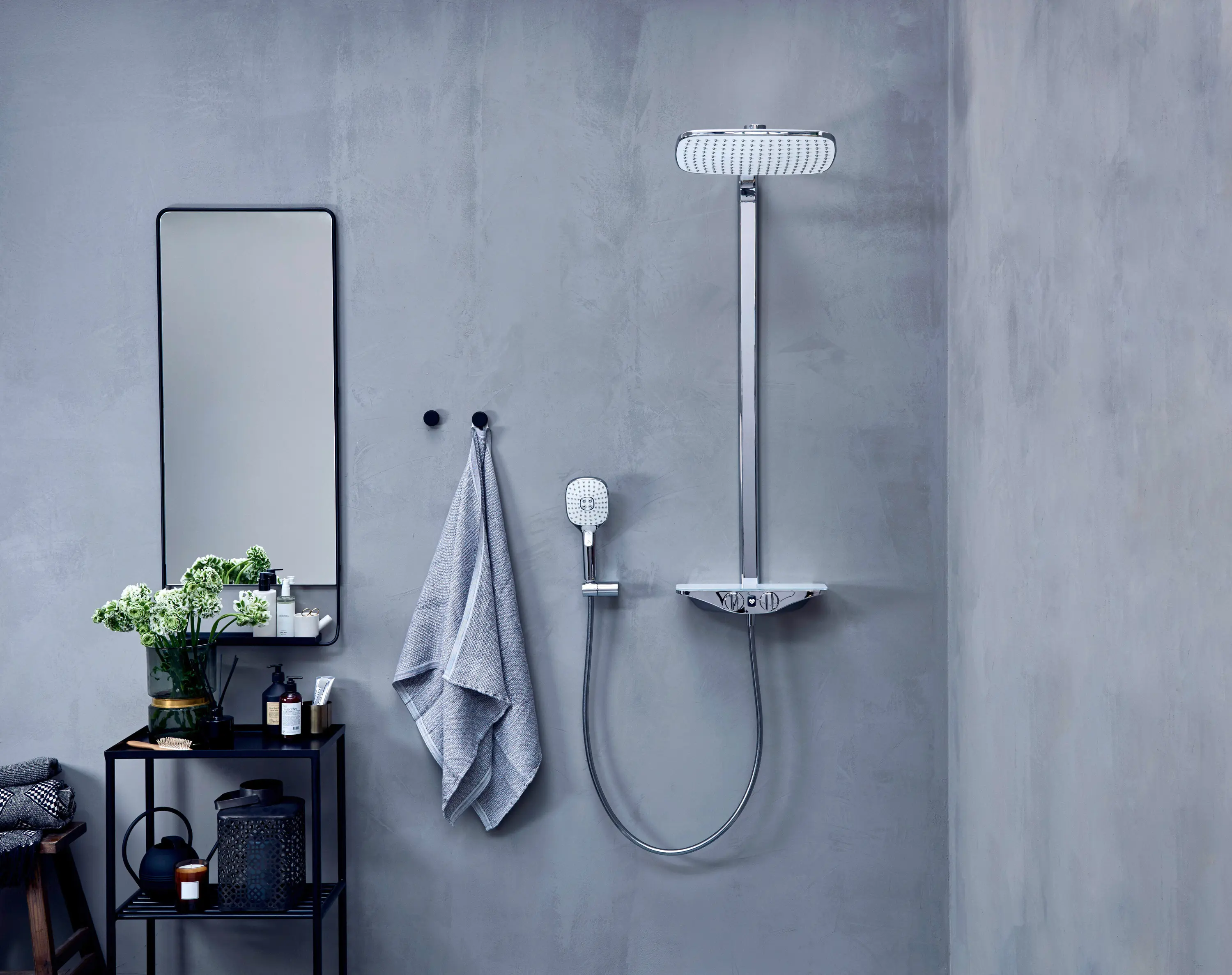

HANSAEMOTION | Shower system, 6 V

GENERAL ATTRIBUTES:

- Product group: Shower system

- Installation type: Wall mounted

- Key features: Thermostatic, Battery-operated, Bluetooth®

- Surface treatment: Chrome/White

- BIM Daten vorhanden: Ja

PRODUCT FEATURES:

- Connection type: Ball eccentric coupling(s)

- Lever/Handle type: Temperature control handle, Flow control handle

- Shower parts: Hand shower, Overhead shower, Shower holder, Shower hose (1750 mm), Rotatable ball joint connection

- Diverter type: Turn operated diverter, Integrated into flow control handle

- Shower spray type: Pulsating, Intense, Sensitive

- Number of shower sprays: 3 shower sprays

- Temperature adjustments: Safety stop against scalding at 38°C, The housing of the fittings conducts minimal heat

- Mechanical parts: Thermostatic cartridge for automatic temperature control, Non-return valve(s)

- Electronic parts: Solenoid valve, External control unit, Light indicated function(s), Low battery indicator

- Advanced features: Safety glass, Software settings adjustable via App

- Additional features: protected against back-flow in domestic use (according to DIN EN 1717)

FLOW PROPERTIES:

- Flow-rate at 300 kPa: 12,00 l/min

ELECTRONICAL ATTRIBUTES:

- Battery: AA 1.5 V Lithium x 4

- Bluetooth version: 4.x

REGULATIONS:

- EMC Directive: 2014/53/EU

- EN standard: EN 1111, EN 15091

- Noise class: I (ISO 3822) Oras lab.

- Protection class: IP 55

APPROVALS:

- Declaration of conformity (CE): RED

TECHNICAL FEATURES:

- DN-size (nominal dimension): DN15

- Material: Brass

- Operating voltage: 6 V

- Hot water supply: max. +70°C

- Working pressure: 100- 1000 kPa

- Connection size: G1/2

- Installation width: CC150± 15 mm

- Backflow prevention (EN1717): EB

LOGISTICS:

- Sales Package Gross Weight: 8.6 kg

- Sales Package Dimensions (L x W x H): 1017.0 x 230.0 x 144.0
