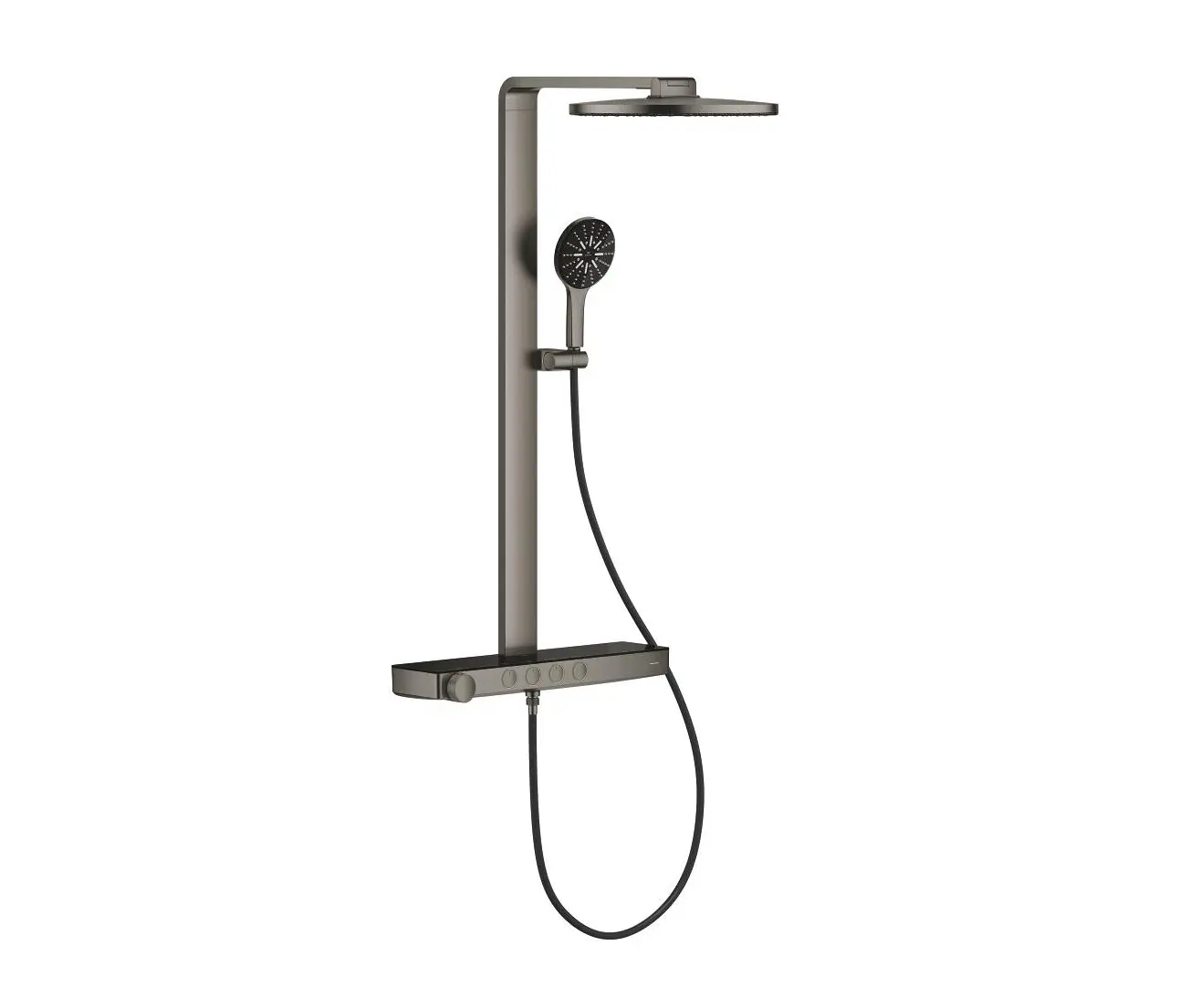

Rainshower Aqua Pure Shower system with thermostat for wall mounting

Consisting of:

horizontal 435 mm shower arm

exposed SmartControl thermostat with metal housing

allows change between:

head shower Rainshower Aqua Duo round, 360 mm, black acrylic spray plate

swing angle 0°- 30°

2 spray patterns:

GROHE PureRain, ActiveRain

hand shower Rainshower Aqua 130 (101 676), black acrylic spray plate

3 spray patterns:

GROHE Rain, Rain+ and ActiveMassage

adjustable height via gliding element

initial Rainshower Aqua Pure unit (101 672 9990) enclosed

shower hose 1750 mm

GROHE Rainshower Aqua Pure removes chlorine and odor (hand shower)

GROHE SmartTip showering spray selection via push of a ring

GROHE Water Saving- Less water, perfect flow

maximum flow rate (at 3 bar): 8.7 l/min

GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE Water Saving to full flow

GROHE ProGrip Metal with knurl structure

GROHE TurboStat compact cartridge with wax thermoelement

GROHE SafeStop safety button at 38°C (calibration required)

GROHE SafeStop Plus optional temperature limiter at 43°C included

integrated GROHE EasyReach shower tray (black glass)

GROHE DreamSpray perfect spray pattern

GROHE Long-Life finish

SpeedClean anti-limescale system

Inner WaterGuide for a longer life

TwistStop preventing the hose from twisting

GROHE CoolTouch prevents scalding on hot surfaces

suitable for instantaneous heaters from 18 kW/h

minimum flow rate 5 l/min.

min. recommended pressure 1.0 bar

internal 6 V lithium battery (42 886 000) type CR-P2

battery lifetime approx. 10 years

replacement filter: Rainshower Aqua Pure unit (101 672 9990)

optional: Rainshower Aqua glass shelf (101 677)

to change the filter, a minimum distance of 20 cm from the right-hand side wall must be maintained
