Gothic 110 two-way illumination
- Home/Bollard lights/

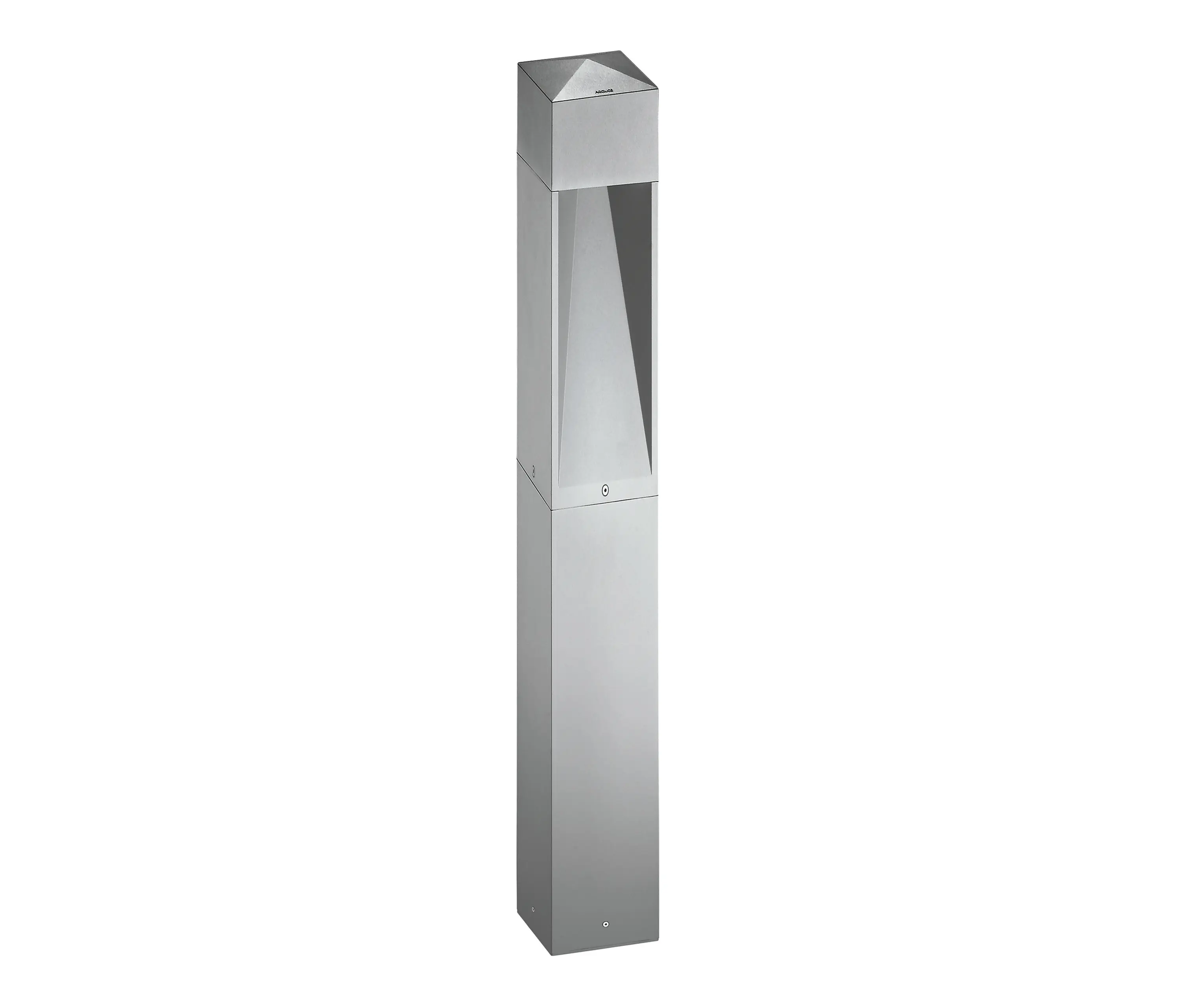

Gothic 110 two-way illumination
About this product
Architonic ID: 1164019
Year of Launch: 2014
Die-cast aluminium body (EN 47100).
Extruded aluminium pole.
Galvanized and painted steel base plate with galvanized steel stud bolts.
Silicone rubber gaskets.
AISI 316 stainless steel external screws.
Double layer polyester powder paint resistant to corrosion and salt spray fog.
PG13,5 engineering plastic cable gland.
Driver protected against voltage surges.
Nominal LED efficacy up to 95 lumen/Watt (4000K- 500mA- CRI>80- Tj=85°C).
LED life time: >50000h with L70.
High colour consistency: <3 SDCM.
LED module protected against overheating.
Screen made of 5mm thermal-shock resistant tempered glass.
It complies with standards EN 60598-1 and EN 60598-2-1.
Concept
A bollard featuring a unique, square-shaped design, whose slender lines and acute angles- in spite of their modernity- remind of Gothic style, thus representing the ideal solution for classical and modern architectural styles alike.
This product belongs to collection:
Specifications
Usage
Urban space
