Ginko 4.0

Name: Ginko 4.0
Brand: L&L Luce&Light

Outdoor wall lightsbyL&L Luce&Light

Home

Outdoor wall lights

Ginko 4.0

About this product

Architonic ID: 20231109

Year of Launch: 2020

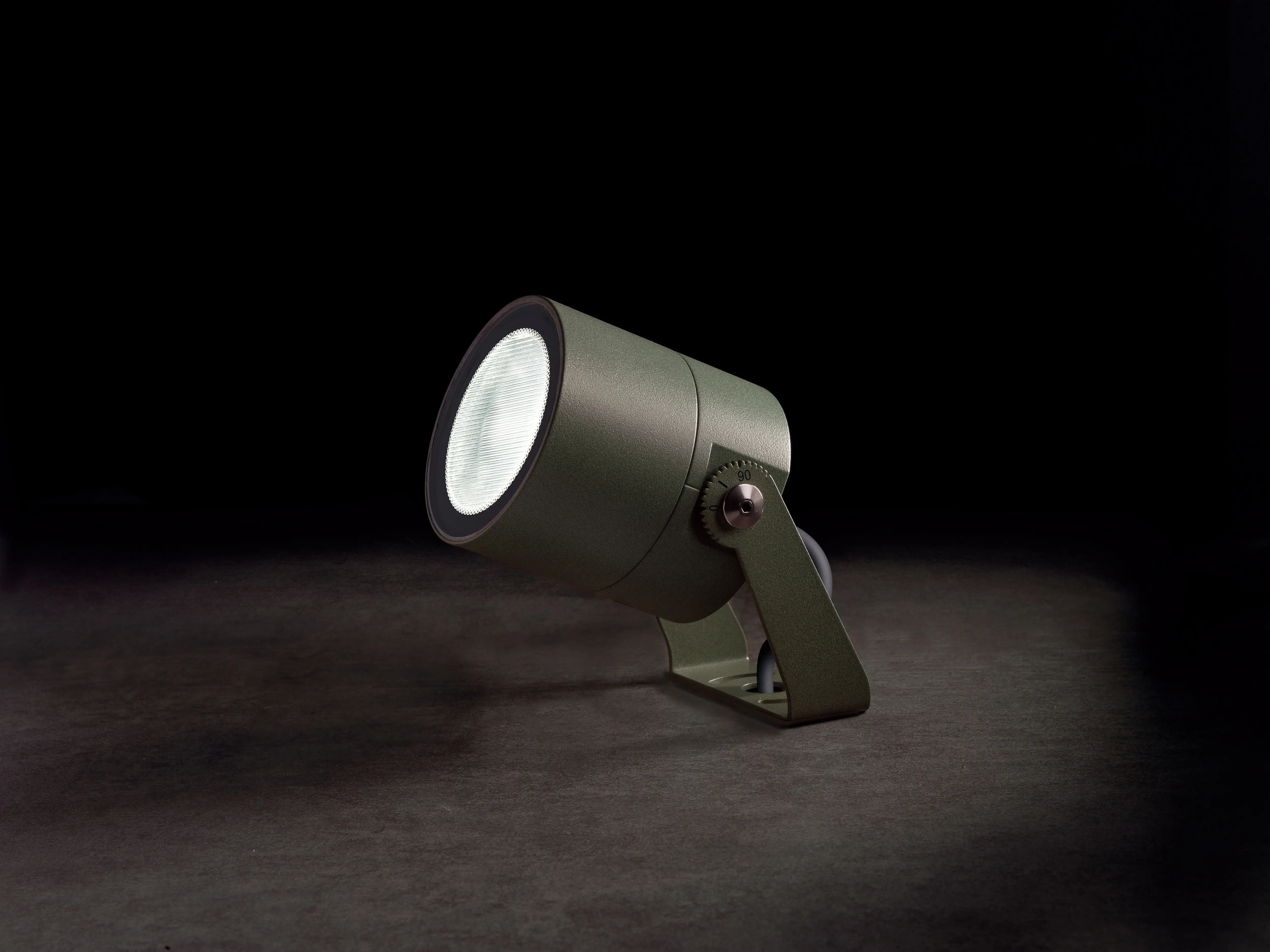

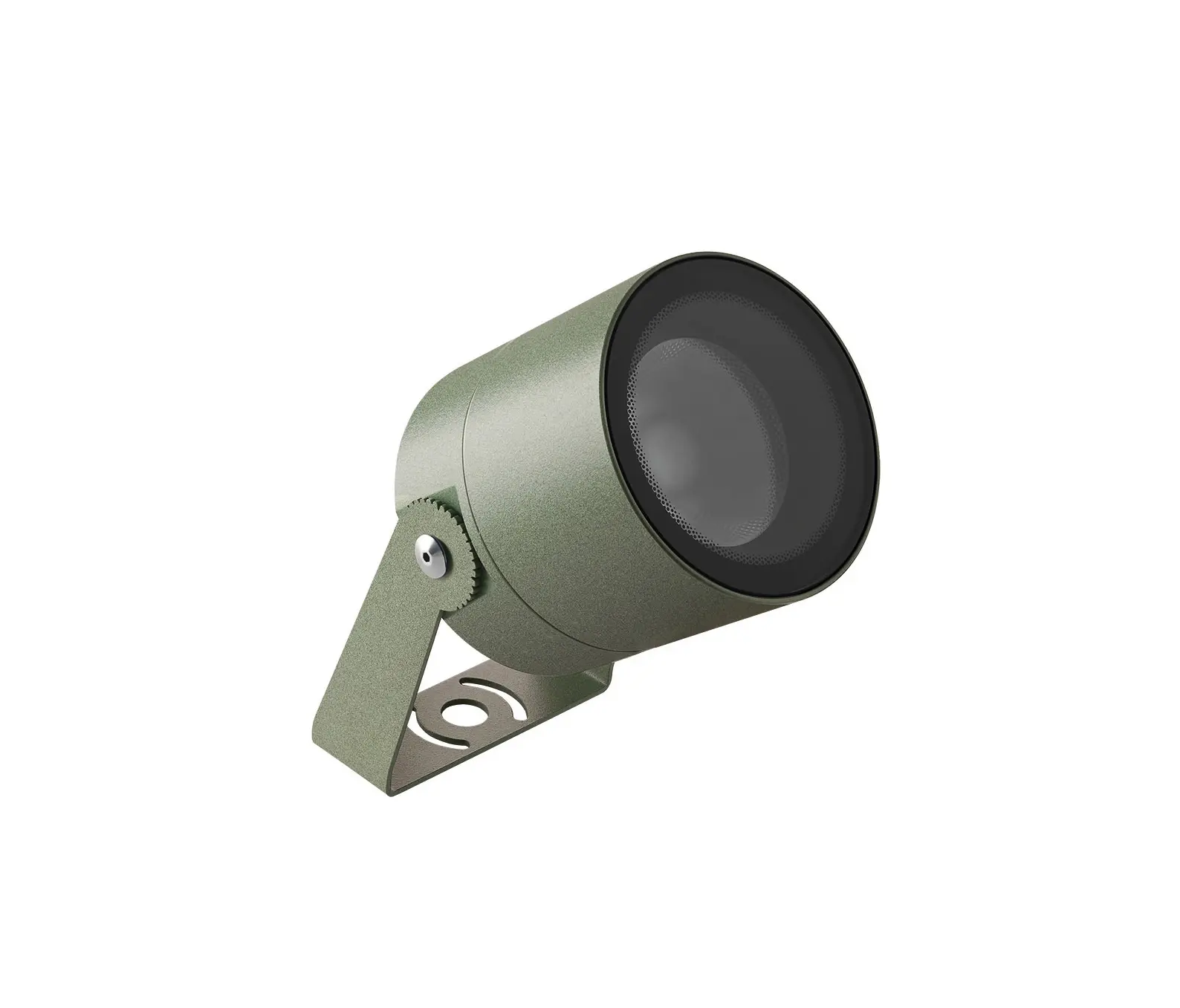

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 25W; Power supply: 24Vdc; Lumen output at source: 1860 lm (3000K, CRI >90), 2302 lm (3000K, CRI 80); Delivered lumen output: 1724 lm (3000K, 12°, CRI >90), 2133 lm (3000K, 12°, CRI 80); 1 high power density COB LED, 2-step MacAdam, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 12°, 26°, 34°, sharp 38°, 55°, adjustable 13°x65°, adjustable 24°x69°; CRI Colour Rendering Index: 80, >90; Body material: body in anticorodal aluminium, AISI 316L stainless steel bracket; Finishes: anthracite, cor-ten, white, anodized black, grey, jasper green; Screen material: screen in serigraphed, tempered, transparent extra-clear glass; power supply unit not included; Ingress protection: IP66, IP69K; Impact resistance: IK08; 13°x65°, 24°x69° optics adjustable through 360° using the magnet provided; Protection systems: IPS (Intelligent Protection System); Appliance class: class III; Weight: 2100 g; Dimensions: Ø109x110 mm

Concept

Multiple optics for flexible creation

Family of outdoor projectors in three sizes, wattages ranging from 2.5W to 15W and versions with a manual zoom lens to adjust the light beam.

Each version offers the possibility of choosing between two wattages and a wide range of optics, including very narrow 5°, and elliptical optics. Sharp optics are also available, which create light beams with pin-sharp edges. The largest version has elliptical optics, adjusted manually using a magnet, and a shadow-effect filter that recreates the natural dappled effect of light shining through foliage.

Versions with a manual zoom lens to adjust the light beam available with graduations pad-printed onto the trim to allow precise adjustment of the optics’ opening angle.

The projectors use High Intensity LEDs or COB LEDs, according to the model, in the colour temperatures 2700K, 3000K and 4000K or in RGB, and a choice between CRI 80 and 90, for improved colour rendering.
