- Home/Outdoor wall lights/

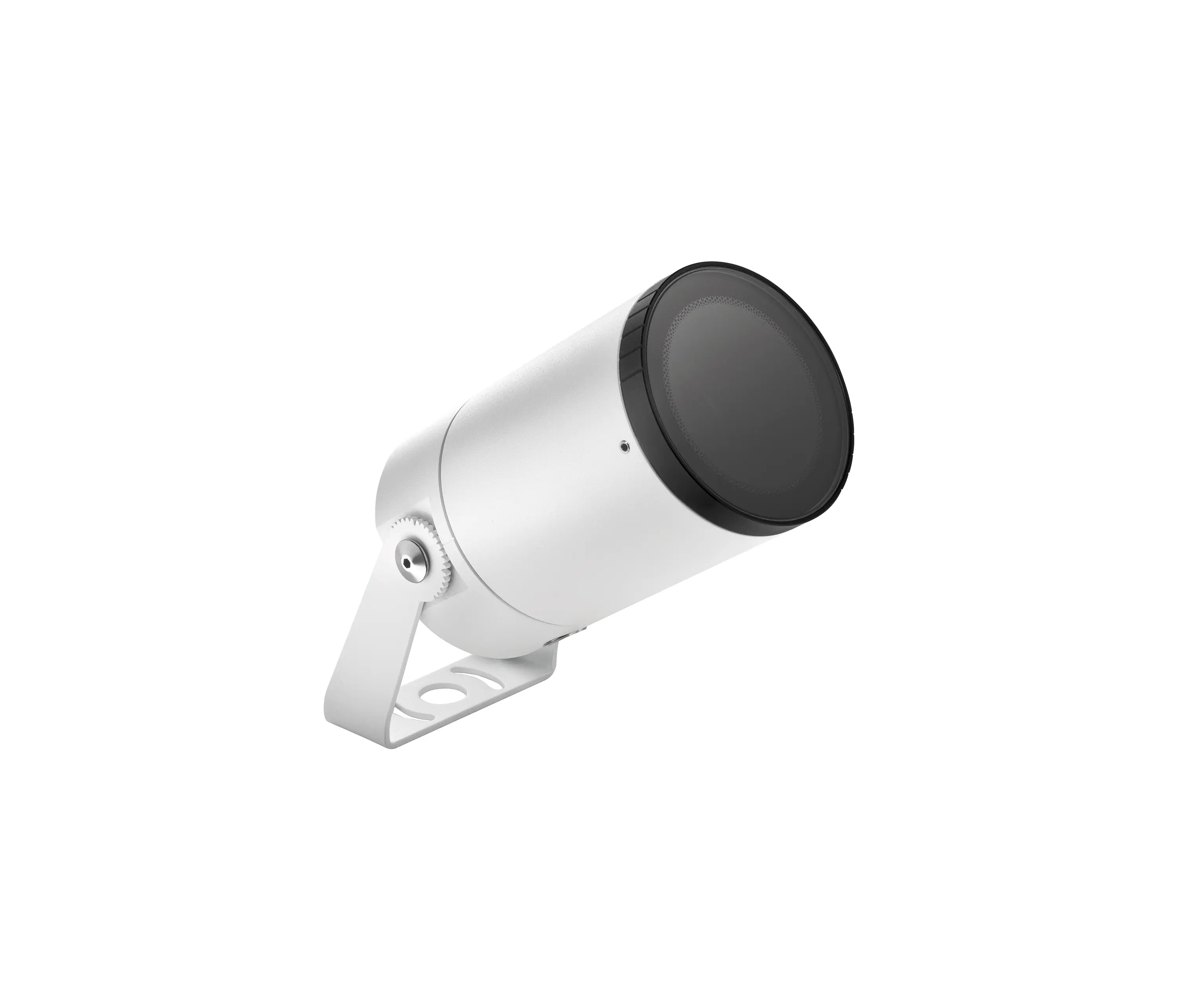

Ginko 3.4
About this product
Architonic ID: 1562779
projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); 10W, 15W; 24Vdc; Lumen output at source: 1096 lm (3000K, 10W, CRI 80), 886 lm (3000K, 10W, CRI 90), 1662 lm (3000K, 15W, CRI 80), 1343 lm (3000K, 15W, CRI 90); Delivered lumen output: 750 lm (3000K, 42°, 10W, CRI 80), 609 lm (3000K, 42°, 10W, CRI 90), 1162 lm (3000K, 42°, 15W, CRI 80), 945 lm (3000K, 42°, 15W, CRI 90); 1 high power density COB LED, 2 step MacAdam, 50000h L95 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 30°, 42°, sharp 48°, 58°, adjustable 12°x64°, adjustable 28°x72°; optical range 8°÷38°, adjustable optical range 8°x66° ÷ 36°x70°; CRI: 80, 90; body in AISI 316L stainless steel or anticorodal aluminium, AISI 316L stainless steel bracket, screen in tempered, transparent extra-clear glass; Finishes: jasper green, white, anthracite, stainless steel, black anodized, cor-ten, grey; Ingress protection: IP66; Impact resistance: IK09; 12°x64°, 28°x72° optics and shadow-effect filter, adjustable through 360° using the magnet provided; Protection systems: IPS; Appliance class: III; Weight: 1040 g; Dimensions: Ø84x88 mm
Concept
Multiple optics for flexible creation
Family of outdoor projectors in three sizes, wattages ranging from 2.5W to 15W and versions with a manual zoom lens to adjust the light beam.
Each version offers the possibility of choosing between two wattages and a wide range of optics, including very narrow 5°, and elliptical optics. Sharp optics are also available, which create light beams with pin-sharp edges. The largest version has elliptical optics, adjusted manually using a magnet, and a shadow-effect filter that recreates the natural dappled effect of light shining through foliage.
Versions with a manual zoom lens to adjust the light beam available with graduations pad-printed onto the trim to allow precise adjustment of the optics’ opening angle.
The projectors use High Intensity LEDs or COB LEDs, according to the model, in the colour temperatures 2700K, 3000K and 4000K or in RGB, and a choice between CRI 80 and 90, for improved colour rendering.
