Name: fecophon wood
Brand: feco. Die Systemwand.

Sound absorbing wall systemsbyfeco. Die Systemwand.

View on feco. Die Systemwand.'s site

Home

Sound absorbing wall systems

fecophon wood

About this product

Architonic ID: 1185162

• System-integrated acoustic elements for sound absorption

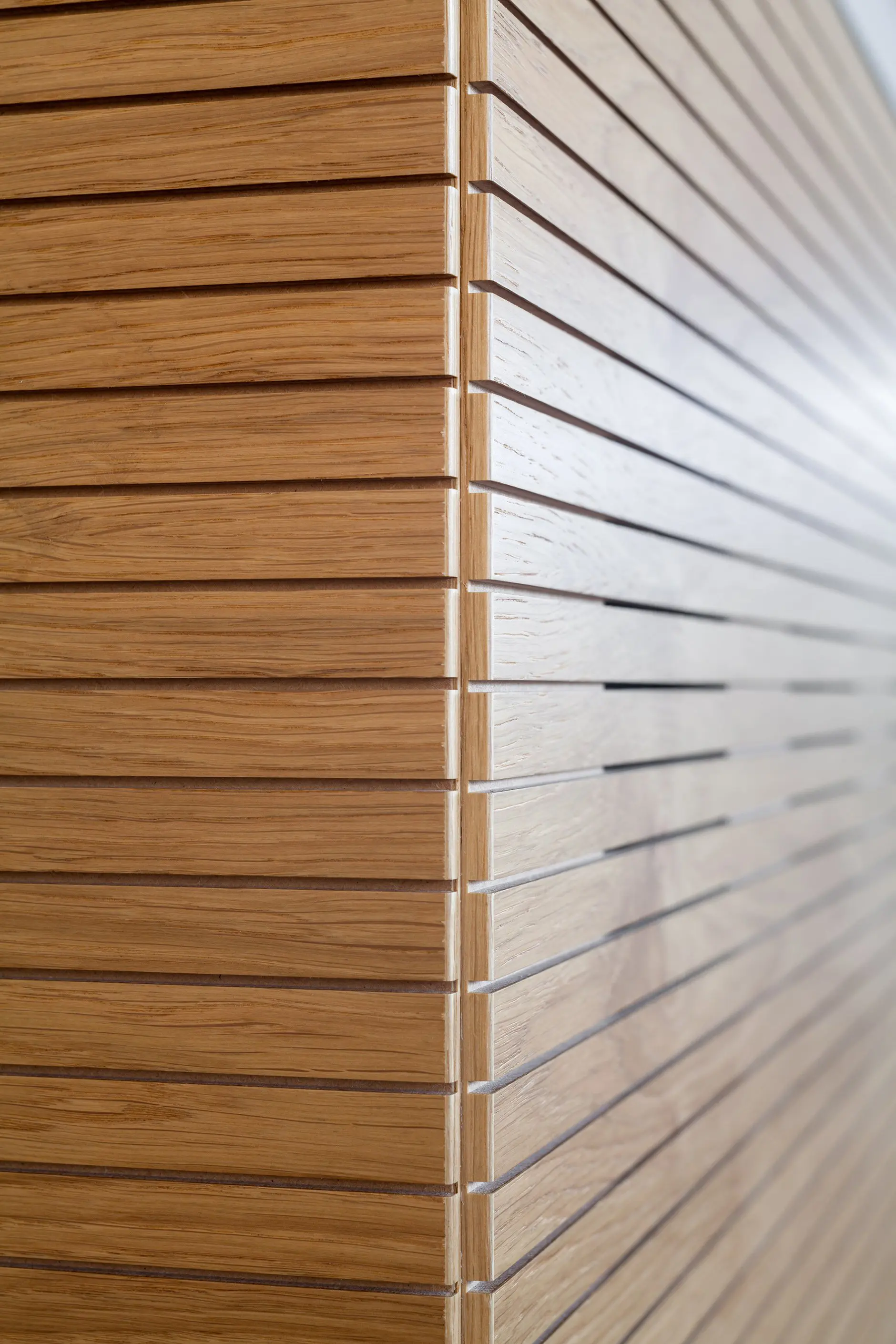

• Structures with perforation, slits or micro-perforation

• Covering made from wood-based materials, normally MDF

• Surface made from melamine, laminate, real wood veneer or varnish

• Acoustic element optionally on one or both sides of the wall

• Consistent wall thickness of 105 mm

• Sound absorption test certificates for fecophon αw = 0,5 up to 0,8

• Sound insulation test certificates for one-sided acoustics Rw,P = 42 dB up to 47 dB

• Sound insulation test certificates for double-sided acoustics Rw,P = 37 dB up to 47 dB

Concept

Quiet in the office.

Peace and quiet for concentrated working.

Glass and concrete, which are extensively used in architecture, are sound-reflecting surfaces that result in long reverberation periods in offices. In addition, component activation does not permit the installation of large-area sound-absorbing suspended ceilings. As a result, system walls with acoustically effective wall surfaces have gained enormous importance.

Slotted, perforated as well as textile absorber elements improve room acoustics. With the uniform wall thickness of 105 mm, sound-absorbing surfaces with a weighted sound absorption coefficient αw down to 0.85 and sound insulation values to Rw,P = 47 dB can be realized on one or both sides.

By reducing reverberation periods, speech intelligibility is improved. Understanding becomes easier and talking more quiet. The improved acoustics have a positive effect on productivity.
