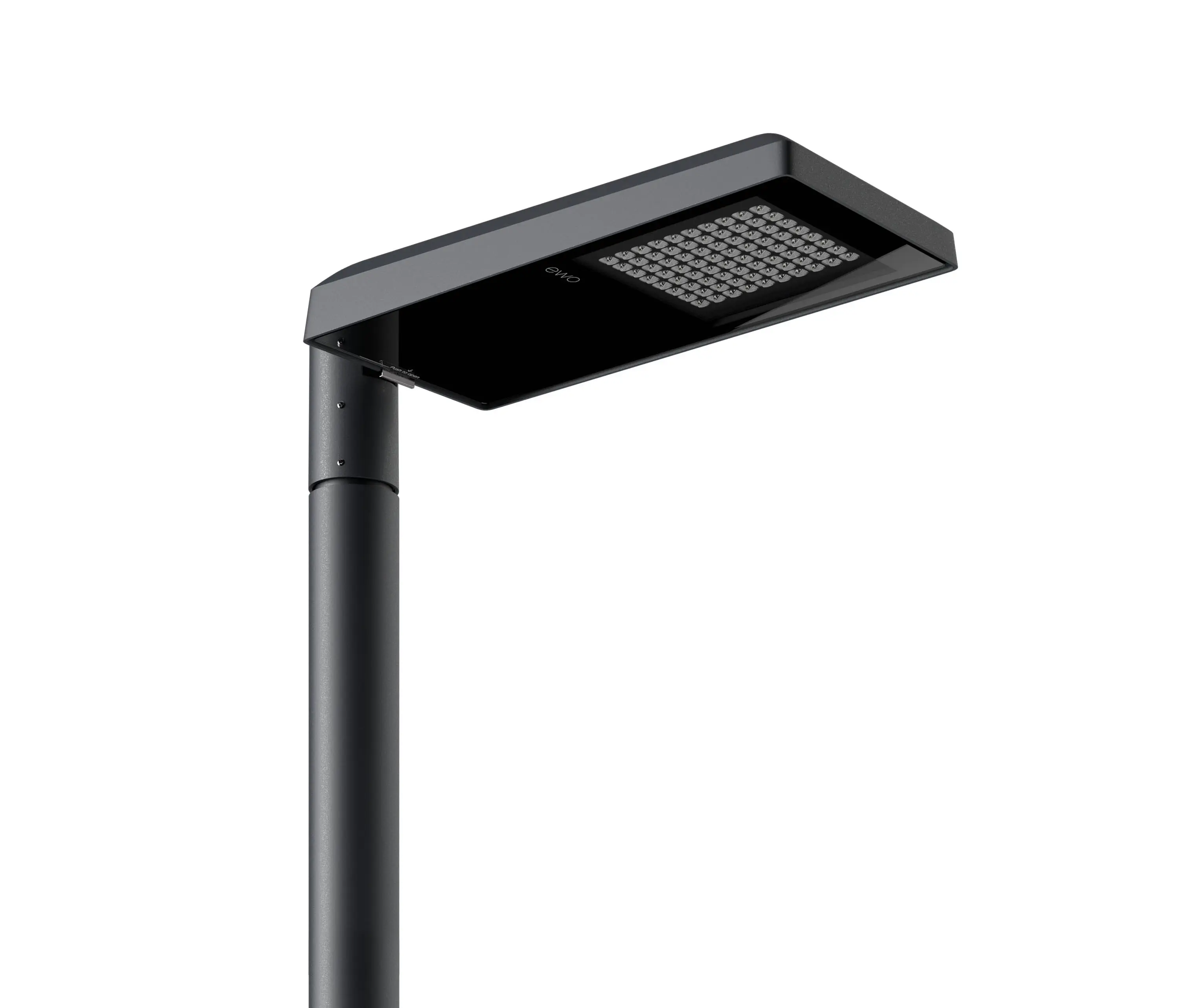

F-System S

̶ Housing accommodates up to 5 LED lighting units (LED Board: 32 / 48 / 64 / 80 LED)

̶ Current feed: 200 mA–700 mA, depending on ambient temperature (F5 max. 600 mA)

̶ Electronic operating device with DALI interface, 1–10 V or stand-alone programming

̶ Various light distributions for area, high bay, street or walkway lighting

̶ AH02, AP07, AS06, AS07, AS08 (also available in satiné version)

̶ Lens made from PMMA, with aluminum support plate

̶ Cover in single-pane safety glass (ESG)

̶ Die-cast aluminum housing, pole adapter made of aluminum, swivels from 0 to 90° in 5° increments, for pole diameter 76 mm or diameter 60 mm

̶ Finish: polyester powder coating, anthracite (DB 703), other colours upon request
