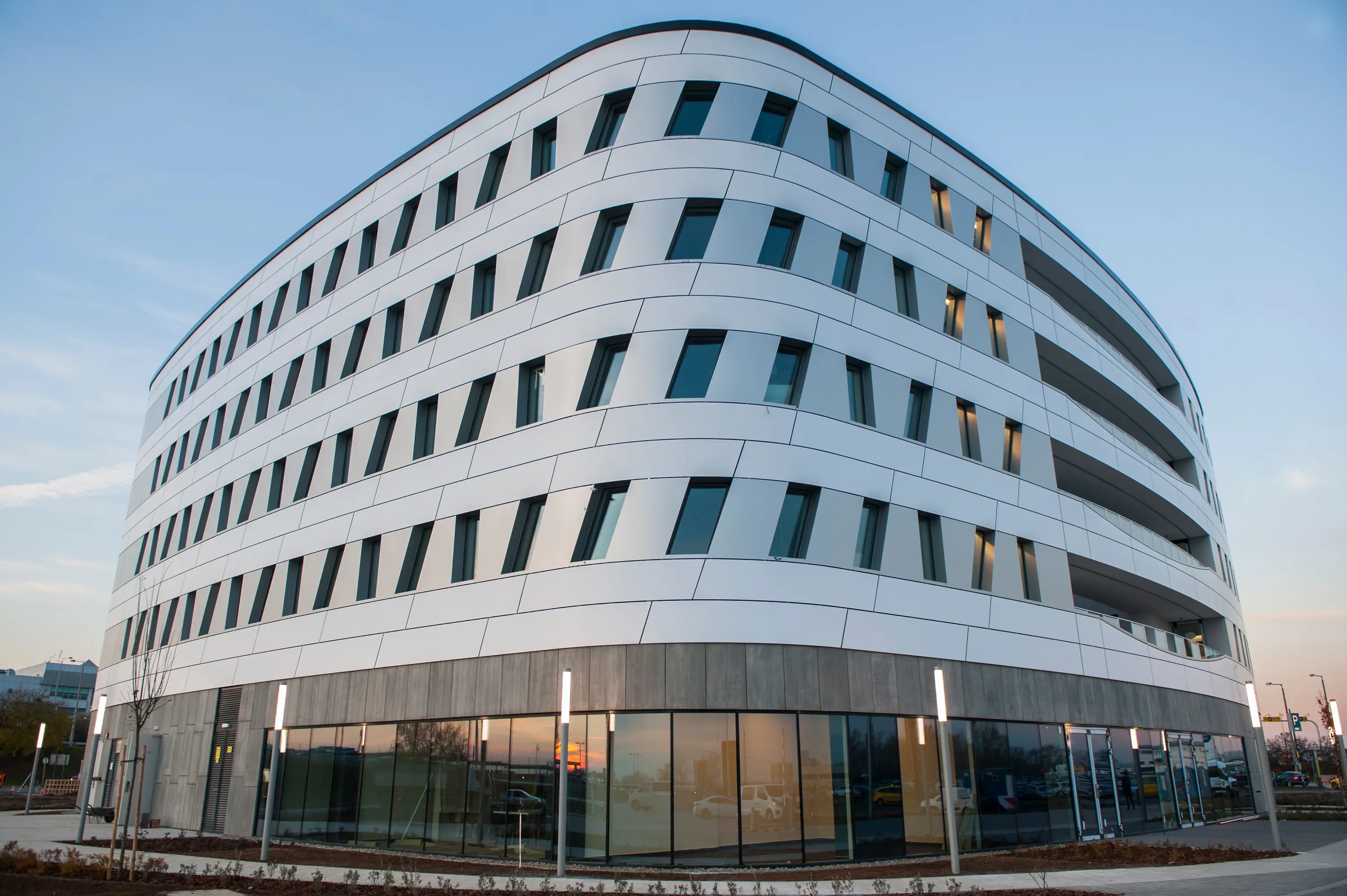

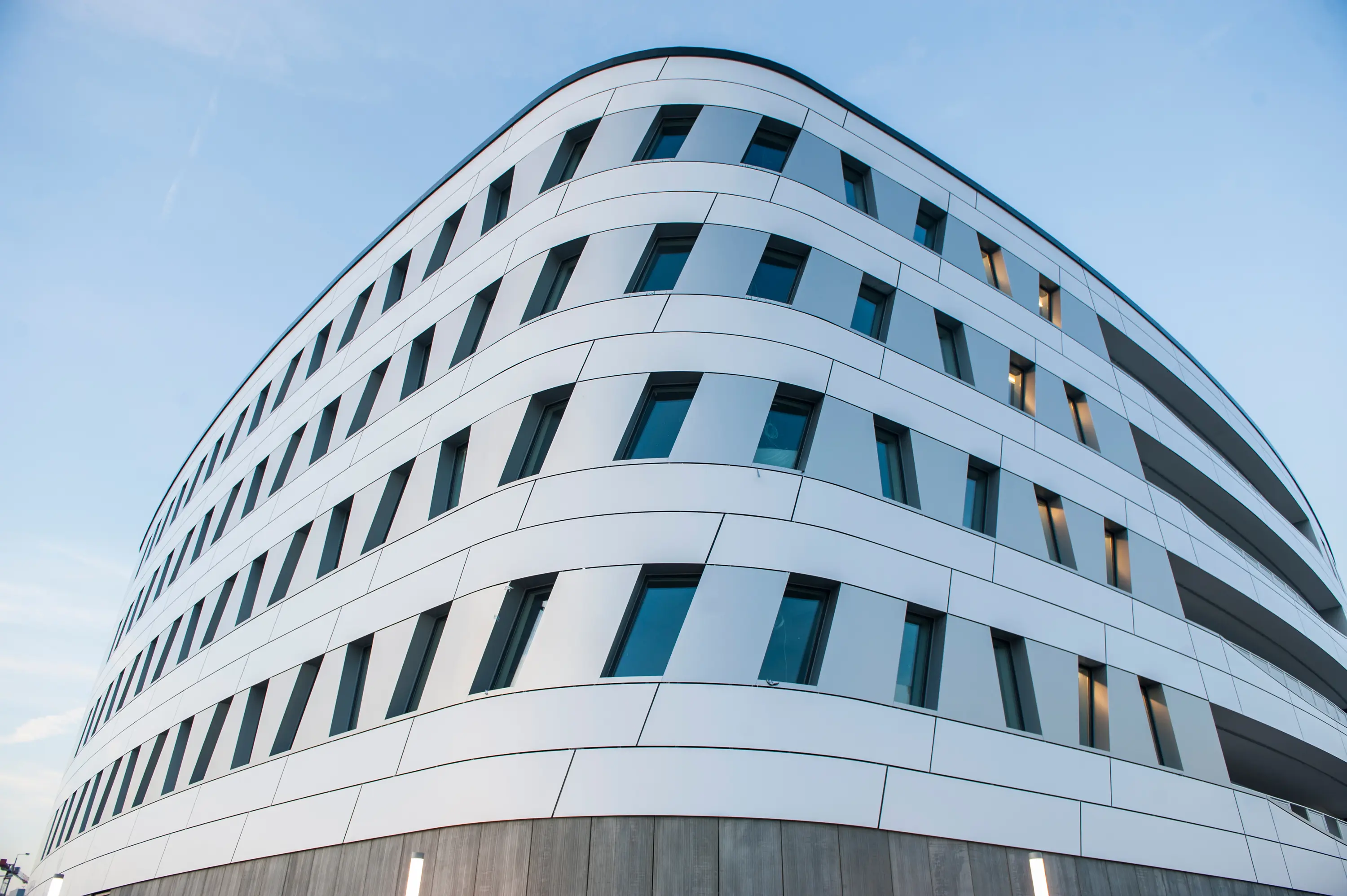

Facades | E97 BRAVO
About this product
Architonic ID: 20711438
E97 BRAVO is a ventilated façade subframing system, ideal for large and flat surfaces, cladded with metal sheets (e.g. etalbond). It provides:
- solutions with hangers which allow adjustments to three dimensions;
- tolerances that allow the thermal expansion movements;
- fast and secure installation.
Cladding material thickness range: 0,7mm ÷ 4mm
Max. cladding material weight: 8kg/m2
Mounting method: hangers, slots, rivets
Max. span length (height): 1.500mm
Max. span length (width): 6.000mm
Distance range from the wall: 40mm ÷ 270mm
This product belongs to collection:
Specifications
Category
Panel systems, Ventilated facade systems
Usage
Building construction
