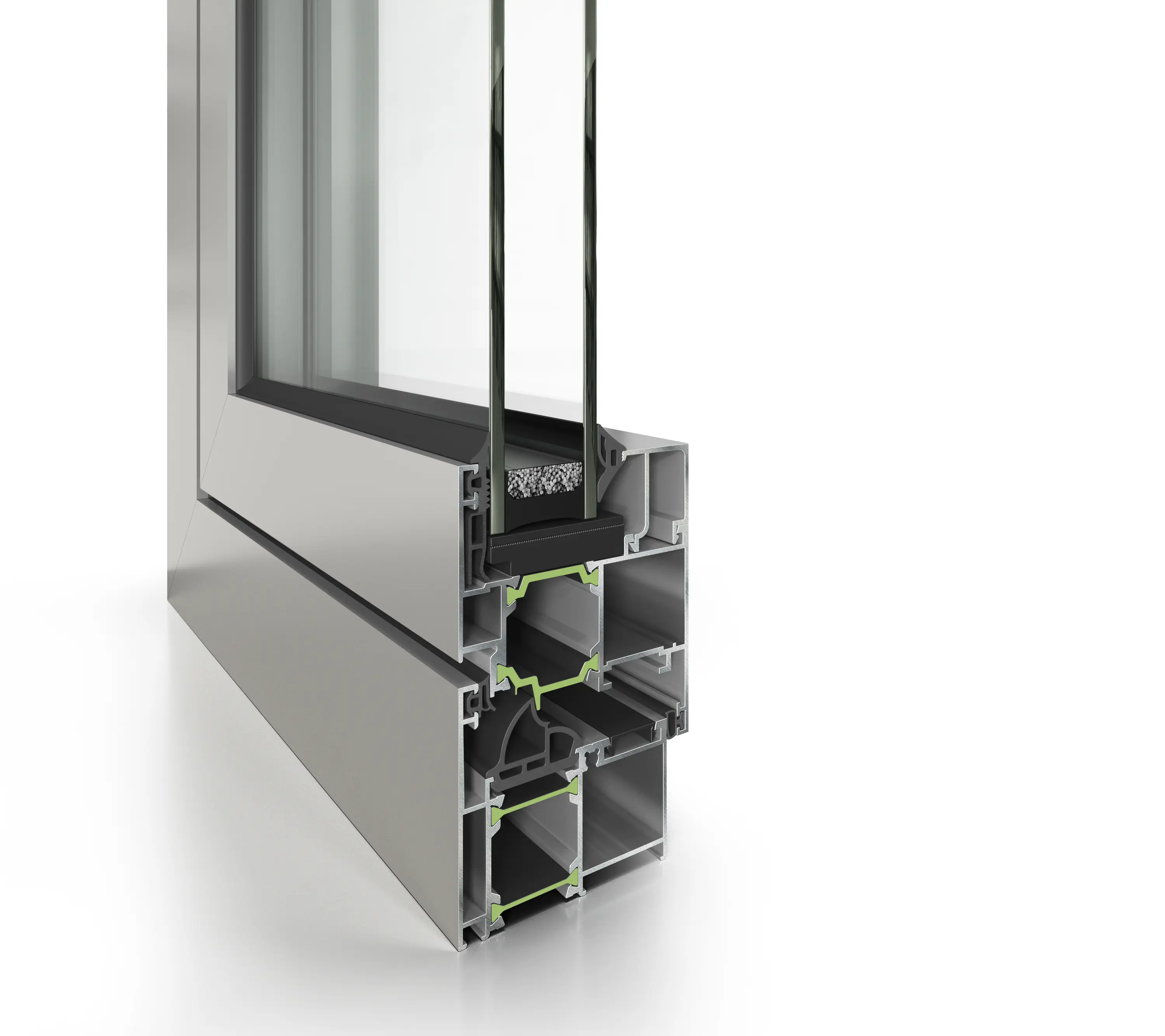

Doors & Windows | E45

E45 is an opening window and door system with thermal break. It provides:

- wide range of profile options for inward and outward opening windows and doors;

- solutions for several configurations;

- accommodation to glazed infills as well as non-transparent panels;

- special hidden vent solution;

- integration with shutter and rolling shutter.

Frame width: 60mm

Min. frame height: 45mm

Min. casement height (f+v): 71mm / 83mm

Glazing infill: up to 40mm

Max. vent height: 2.300mm

Max. vent width: 1.600mm

Max. vent weight: 140kg

Uf ≥ 1,9 W/(m2K)
