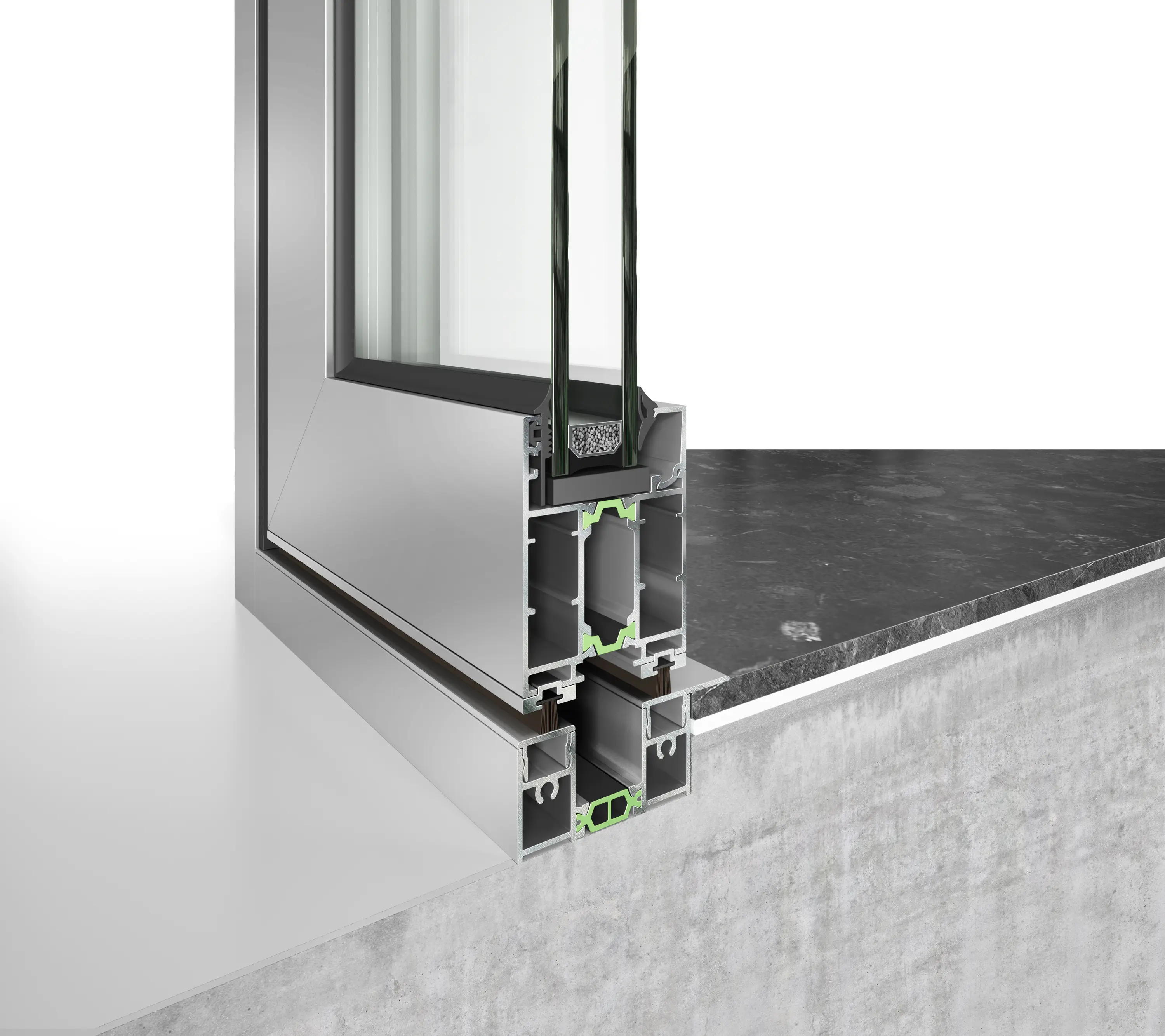

Doors & Windows | E39

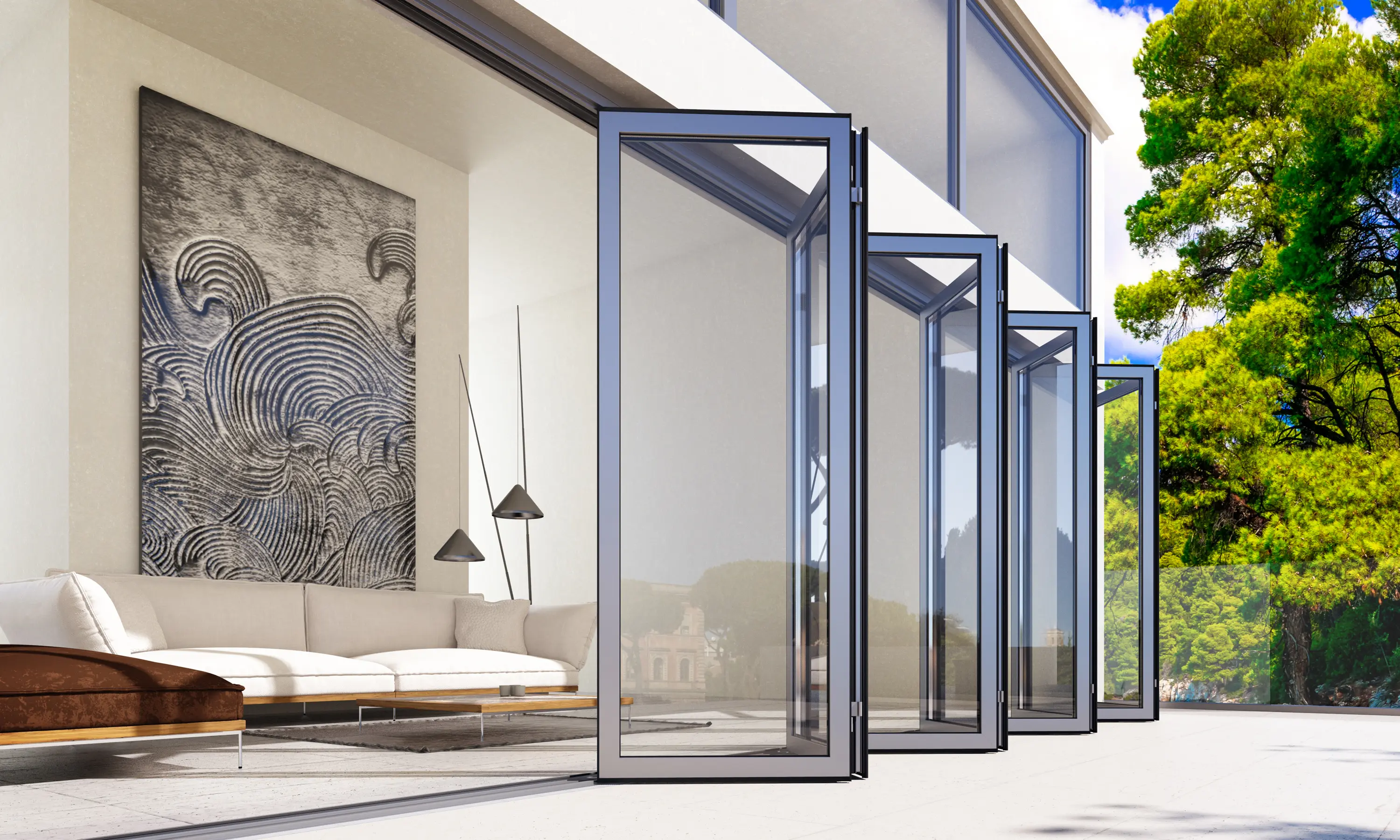

E39 is a slide and folding system with thermal break for openings with very large width. It provides:

- flush surface between the frame and the sash;

- stainless steel rail, ensuring smooth sliding;

- large variety of bottom rails that are either floor integrated or external, depending on the requirement.

Vent width: 50mm

Vent height: 65mm

Top rail height: 90mm

Glazing infill range: 6 ÷ 34 mm

Max. vent width: 1.000mm

Max. vent height: 2.800mm

Max. vent weight: 110kg

Uf ≥ 2,7 W/(m2K)
