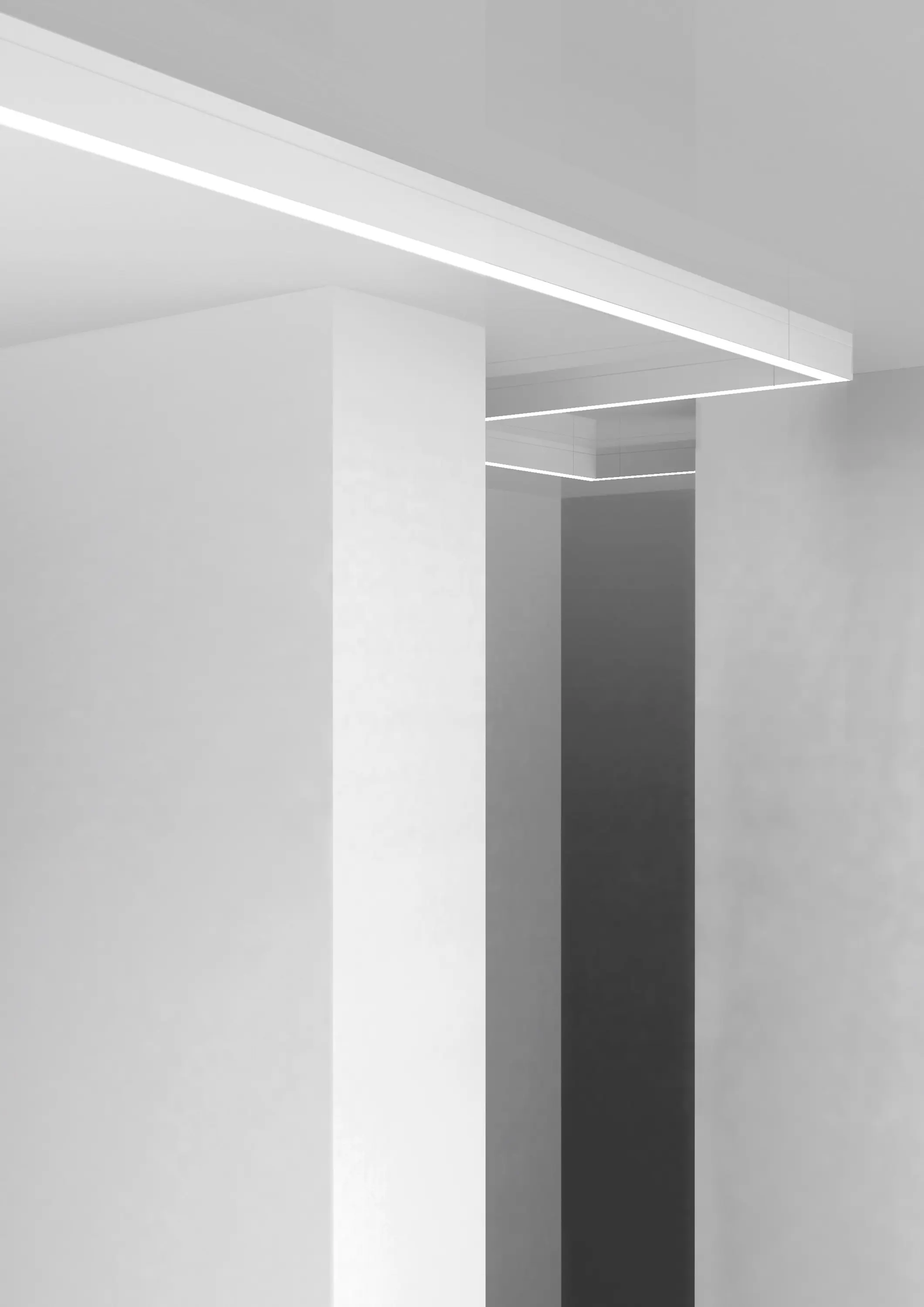

Rail Sistema ceiling/wall

Recessed modular system for diffused

light, for plasterboard false ceilings and walls.

Profile in extruded aluminum, matt white finish

RAL 9016 (semi-matt black RAL 9005 on

request). End pieces in white painted molded

methacrylate.

To be ordered separately: satin polycarbonate

diffuser, end pieces and converters.

Linear elements are available in different lengths

from 60 to 300cm with a 10cm modularity

(see table).Joints: 90° Angle, T shaped and

cross shaped.

Simplicity and easiness of installation are

among the strong points of this system, the

reduced mini-trim allows to skip difficult and

costly plastering operations.

LEDs are available in white 2700K, 3000K,

4000K.

Other light tones, powers or dimmable

versions PUSH, 1...10V and DALI can be

supplied on request.
