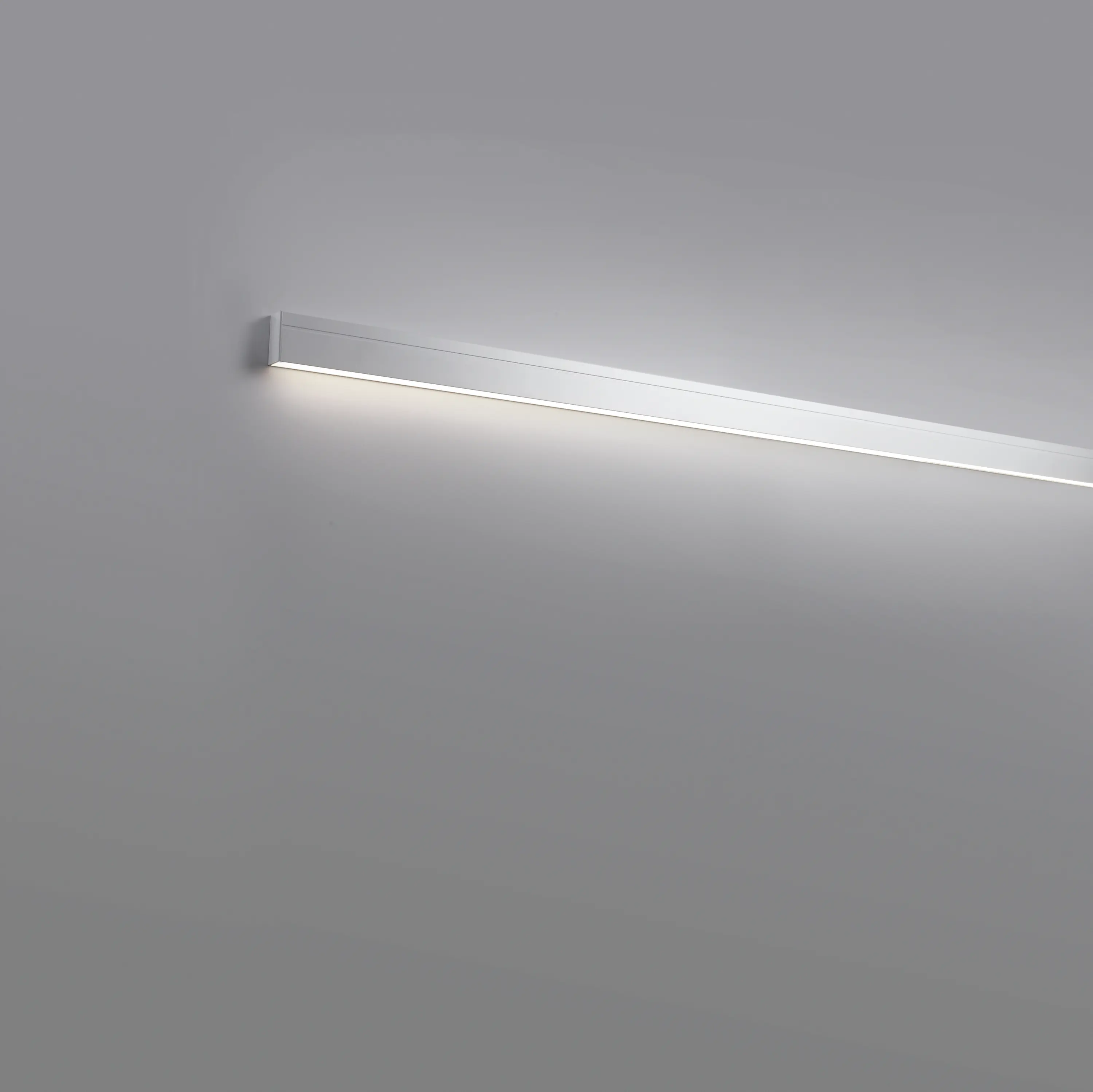

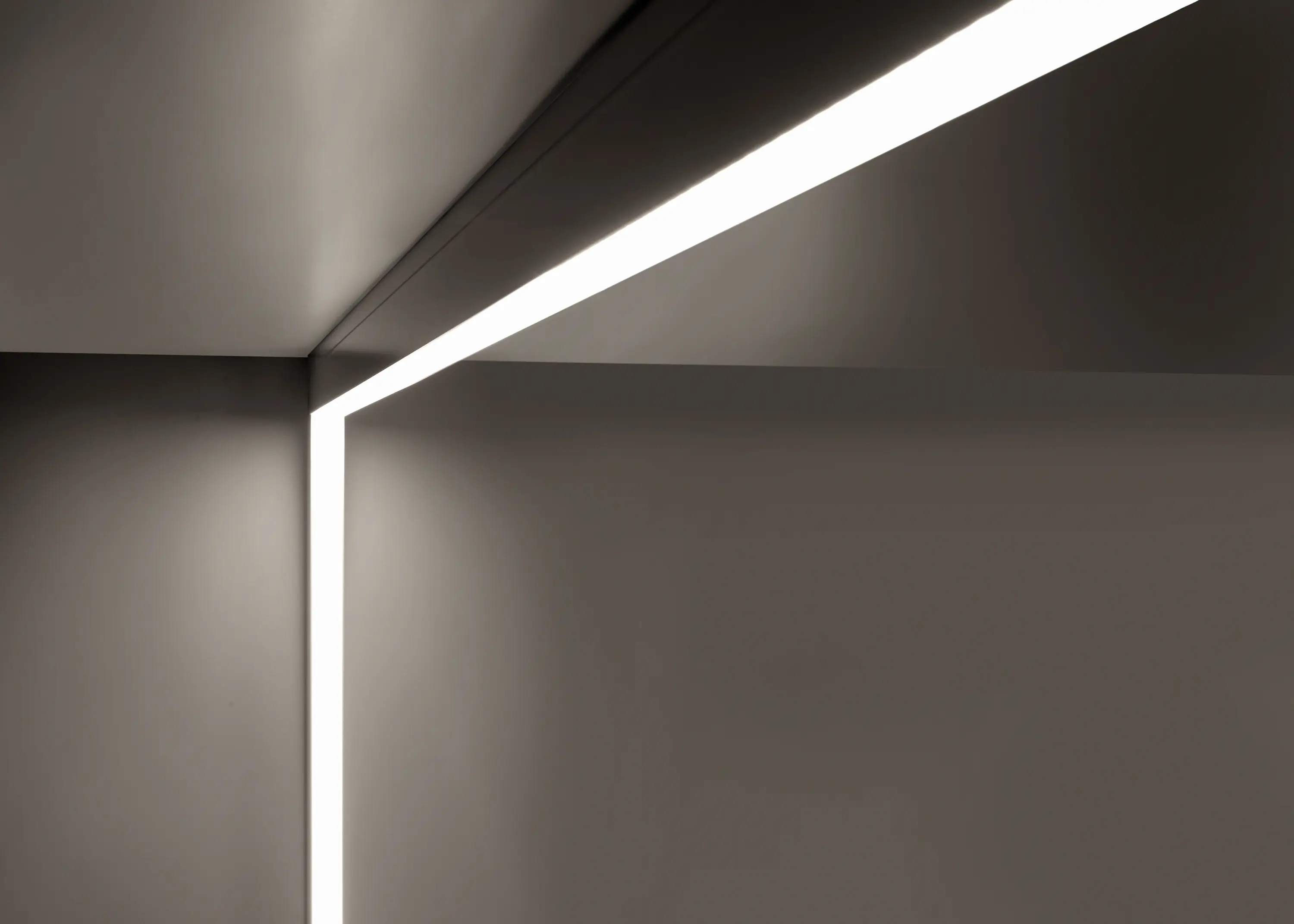

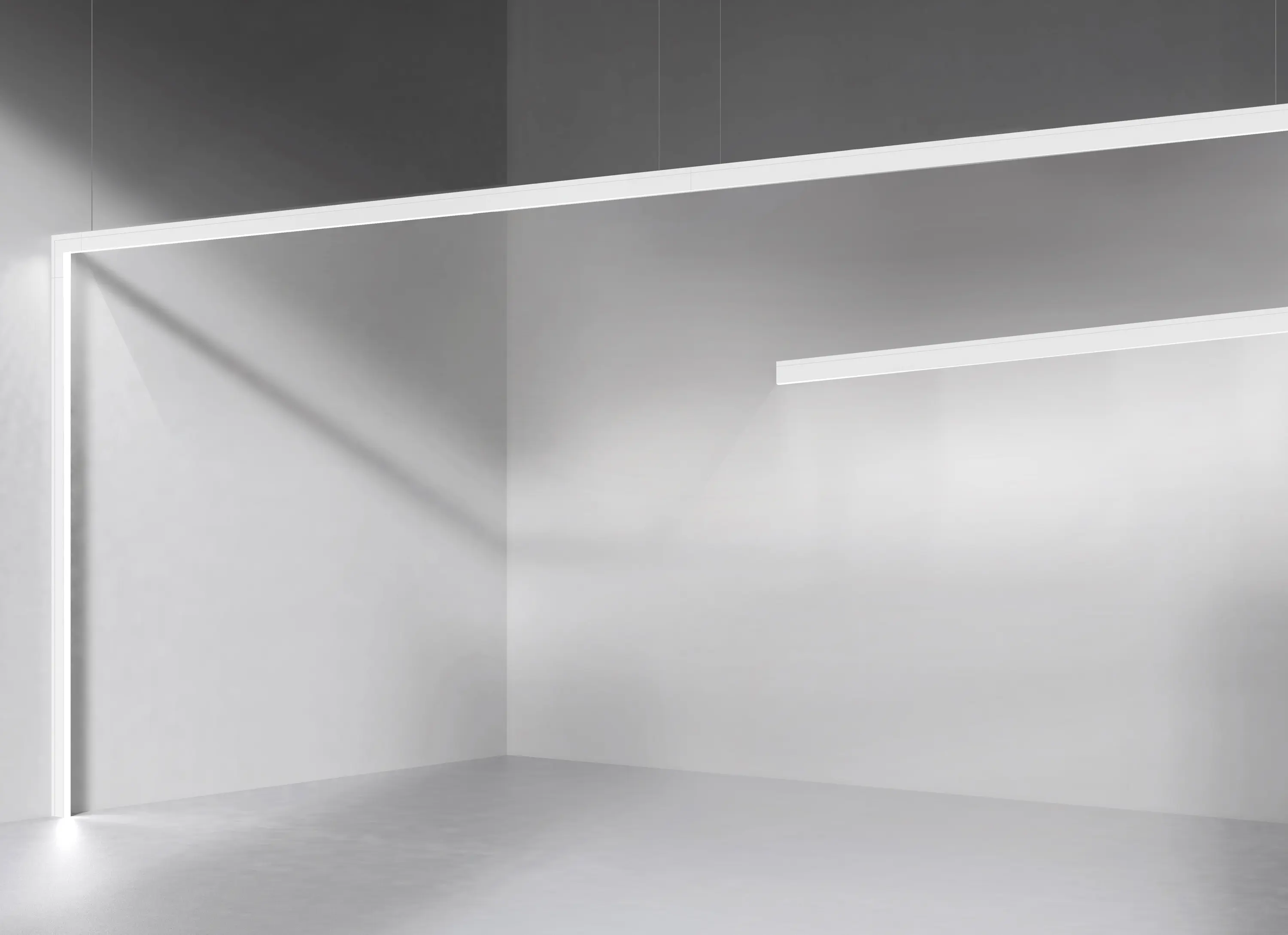

Rail Sistema
About this product
Architonic ID: 1513701
SKU: 4580/4581
Year of Launch: 2016
Typology: wall lamp
Materials: aluminium body
Finish: white
Dimensions: h. 6,8 cm
Light: diffuse
Source: w. 81,5 cm
/W 4000K LED 12W 1808lm
/WW 3000K LED 12W 1616lm
/XW 2700K LED 12W 1512lm
w. 151,5 cm
/W 4000K LED 22,5W 3390lm
/WW 3000K LED 22,5W 3030lm
/XW 2700K LED 22,5W 2835lm
Concept
Recessed modular system for diffused
light, for plasterboard false ceilings and walls.
Profile in extruded aluminum, matt white finish
RAL 9016 (semi-matt black RAL 9005 on
request). End pieces in white painted molded
methacrylate.
To be ordered separately: satin polycarbonate
diffuser, end pieces and converters.
Linear elements are available in different lengths
from 60 to 300cm with a 10cm modularity
(see table).Joints: 90° Angle, T shaped and
cross shaped.
Simplicity and easiness of installation are
among the strong points of this system, the
reduced mini-trim allows to skip difficult and
costly plastering operations.
LEDs are available in white 2700K, 3000K,
4000K.
Other light tones, powers or dimmable
versions PUSH, 1...10V and DALI can be
supplied on request.
This product belongs to collection:
Specifications
Material
Aluminium, Metal
