    °ledline 25

About this product

Architonic ID: 20743845

SKU: 03601.--

Year of Launch: 2022

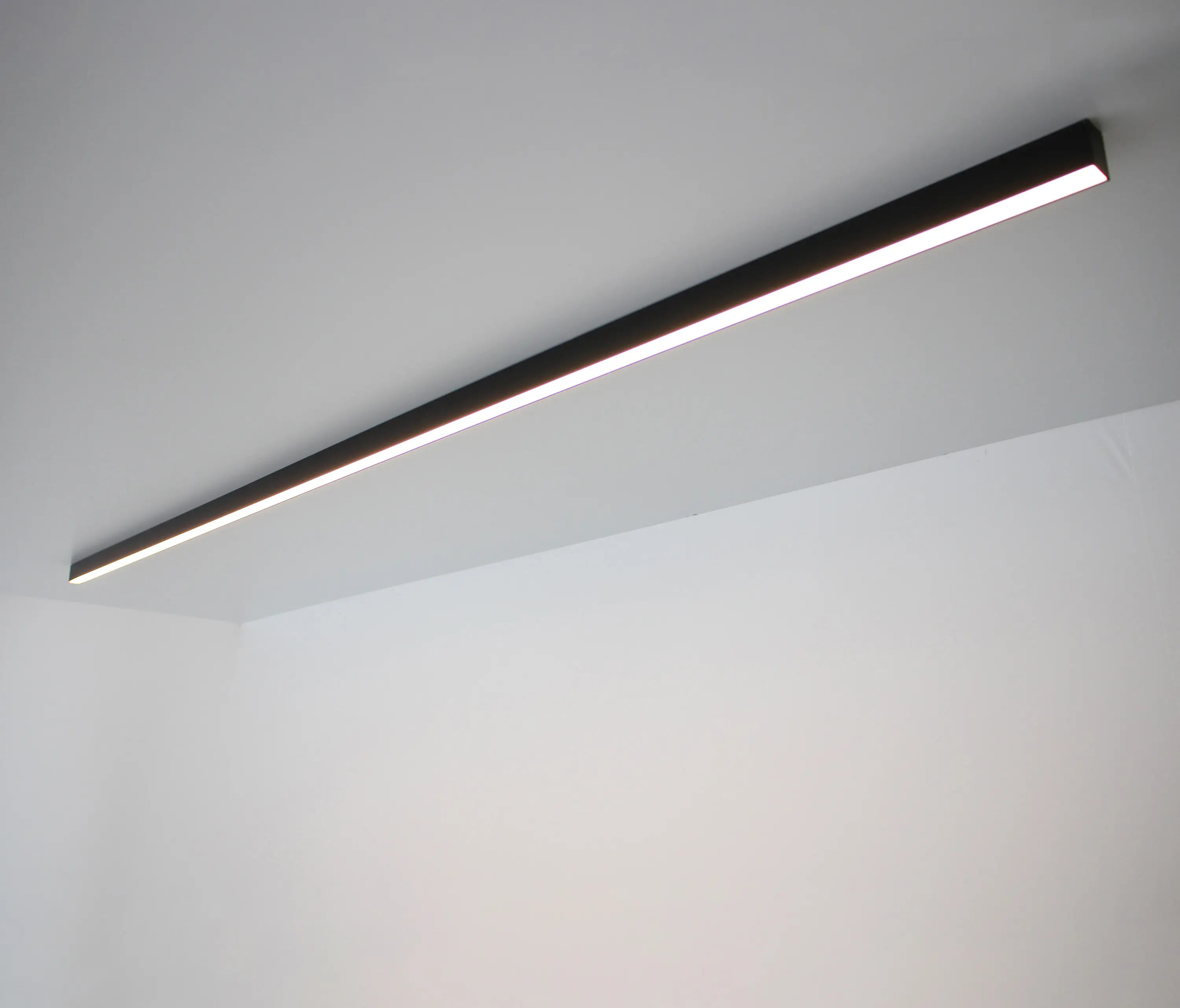

°ledline 25 is a thin LED profile with spots.

3 standard lengths: 1100/1950/2800mm with 1/2/3 spots resp.

Matérial: coated aluminium

Finishes: White/ Black / Aluminium / Brass / Bronze / Dark bronze

Dimming: DALI, Casambi

LED: 2700/3000K

Beam angles: 20°/35°/60°

Dimensions: 25x35mmx2000mm.

Weight: 0,8 kg / m

Wattage: 26W per spot

Flux: 1500lm/m to 1700lm/m

Voltage: 48 VAC or110-240Vac

Durability: +50.000 h

IP rating : 20

Protection class : 3

Certification: CE, RoHs, EAC

Concept

Continuous lines of light, without limits. Each led module can be cut every 8 cm, this gives architects and lighting designers a lot of flexibility. The new version has spotlights with antiglare reflectors. Led line has a very good efficiency. A high tech diffusor was implemented to block as less light as possible and still give an opal look. Led line can be installed recessed, surface mounted and pendant. It offers two control possibilities: DALI and 1-10V. Available in black, white, aluminum, brass, bronze or dark bronze.
