Doors & Windows | E38

E38 is a basic opening window and door system with thermal break. It provides:

- cost effective solutions;

- wide range of profile options for inward opening windows and doors;

- solutions to several configurations;

- accommodation to glazed infills as well as non-transparent panels;

- integration with shutter and rolling shutter."

with thermal break. It provides:

cost effective solutions;

wide range of profile options for inward openingwindows and doors;

solutions to several configurations;

accommodation to glazed infills as well as non-transparent panels;

either PVC-groove or Euro-groove mechanism;integration with shutter and rolling shutter.

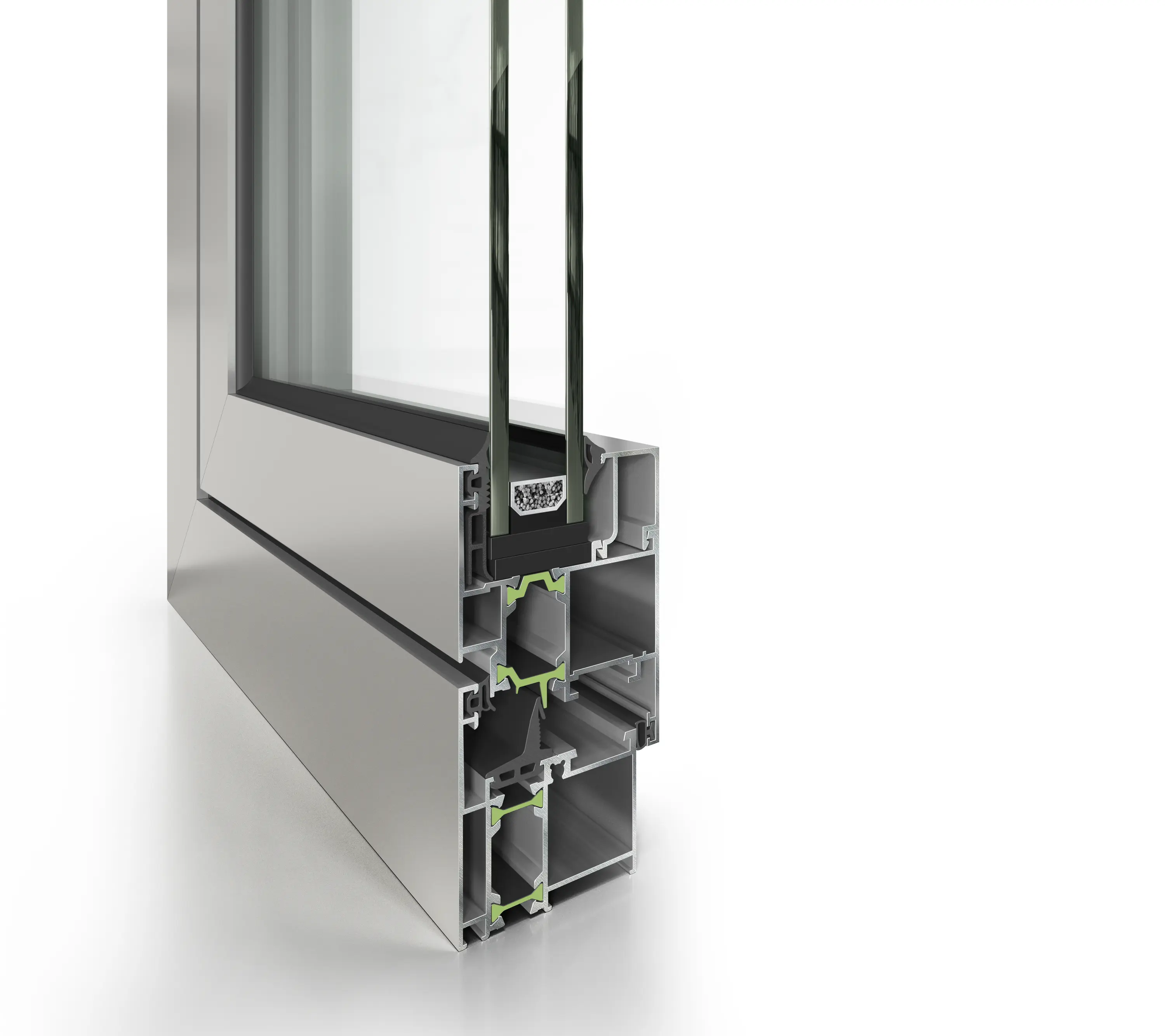

Frame width: 50mm

Frame height: 58mm

Casement height (f+v): 127mm

Glazing infill: up to 30mm

Max. vent height: 2.300mm

Max. vent width: 1.600mm

Max. vent weight: 140kg

Uf ≥ 2,6 W/(m2K)
