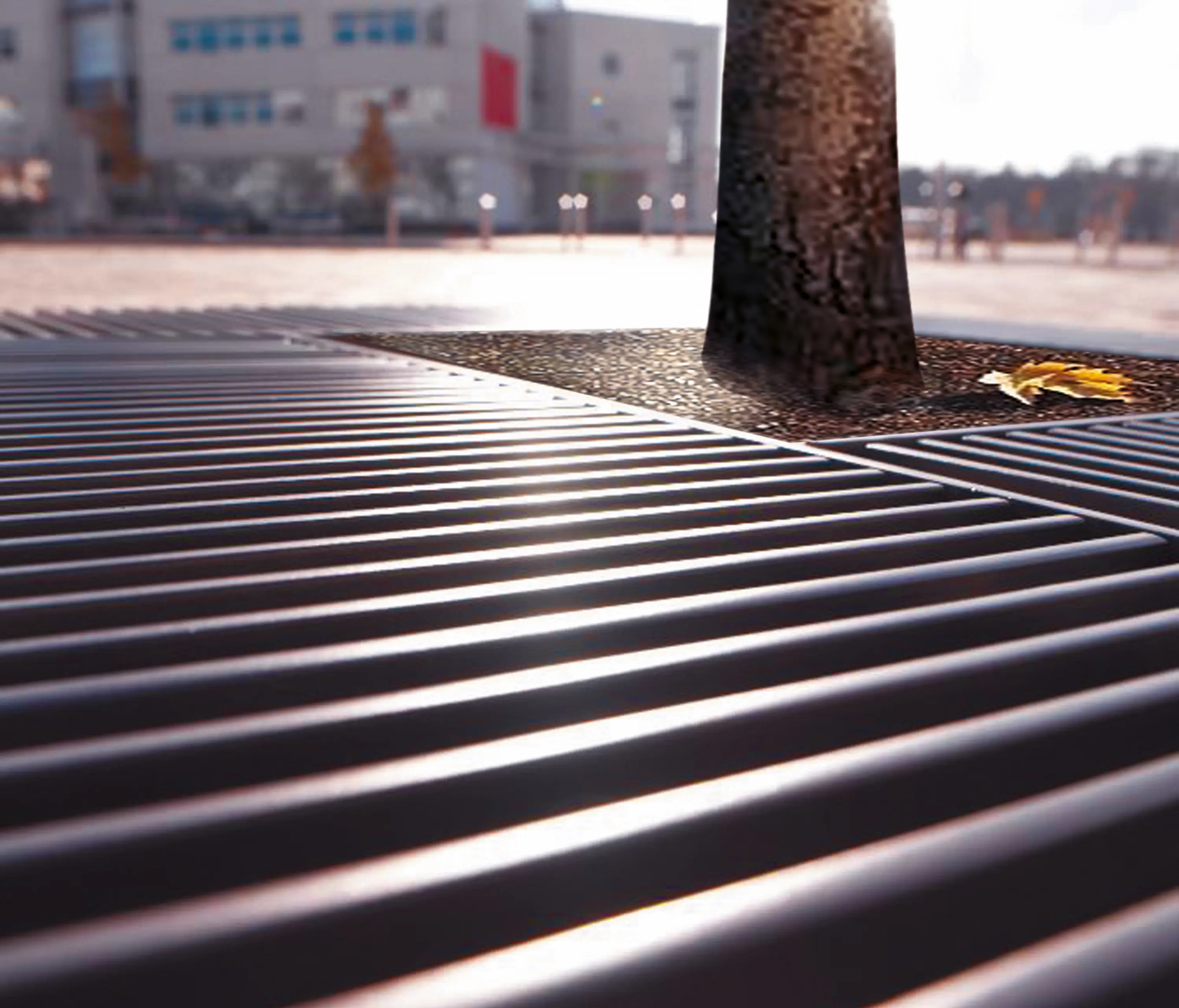

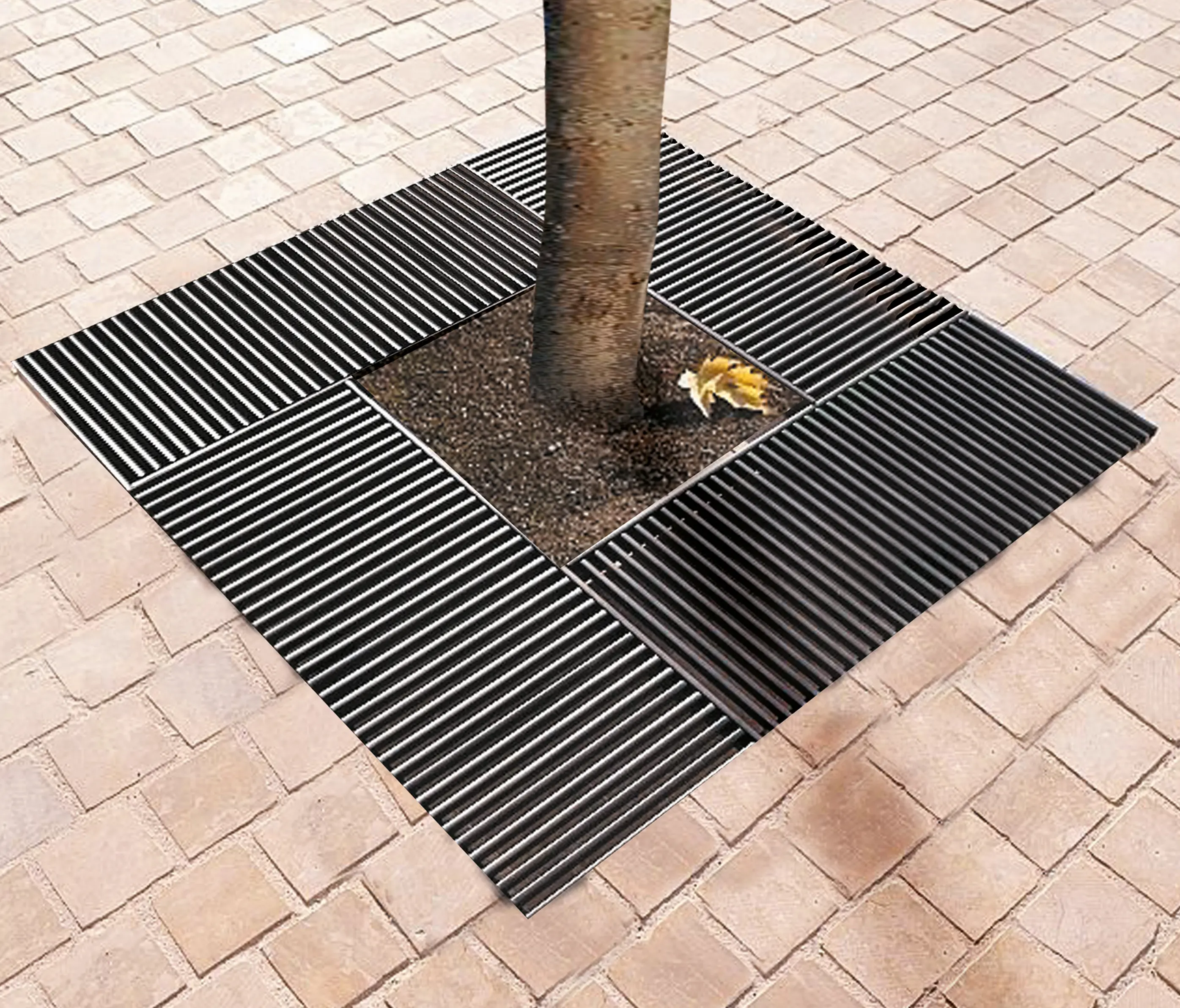

Basic tree grate

Grate composed of 4 panels made of flat steel bar : 10 x 20mm

Central opening made of flat steel bar : 10 x 60mm or 10 x 80mm (relative to the dimensions)

Angle-steel frame : Galvanised steel 45 x 45 x 4.5 mm fitted with studs to prevent lifting.

4 panels secured by bolts in the interior opening.

Finish : polyzinc + polyester powder coating, RAL colour of choice.

Load resistance : The grate resists a load of 600kg over total surface area.

Exterior sizes:

100 x 100 cm

120 x 120 cm

150 x 150 cm

180 x 180 cm

200 x 200 cm

Interior sizes:

56 x 56 cm

60 x 60 cm

64 x 64 cm
