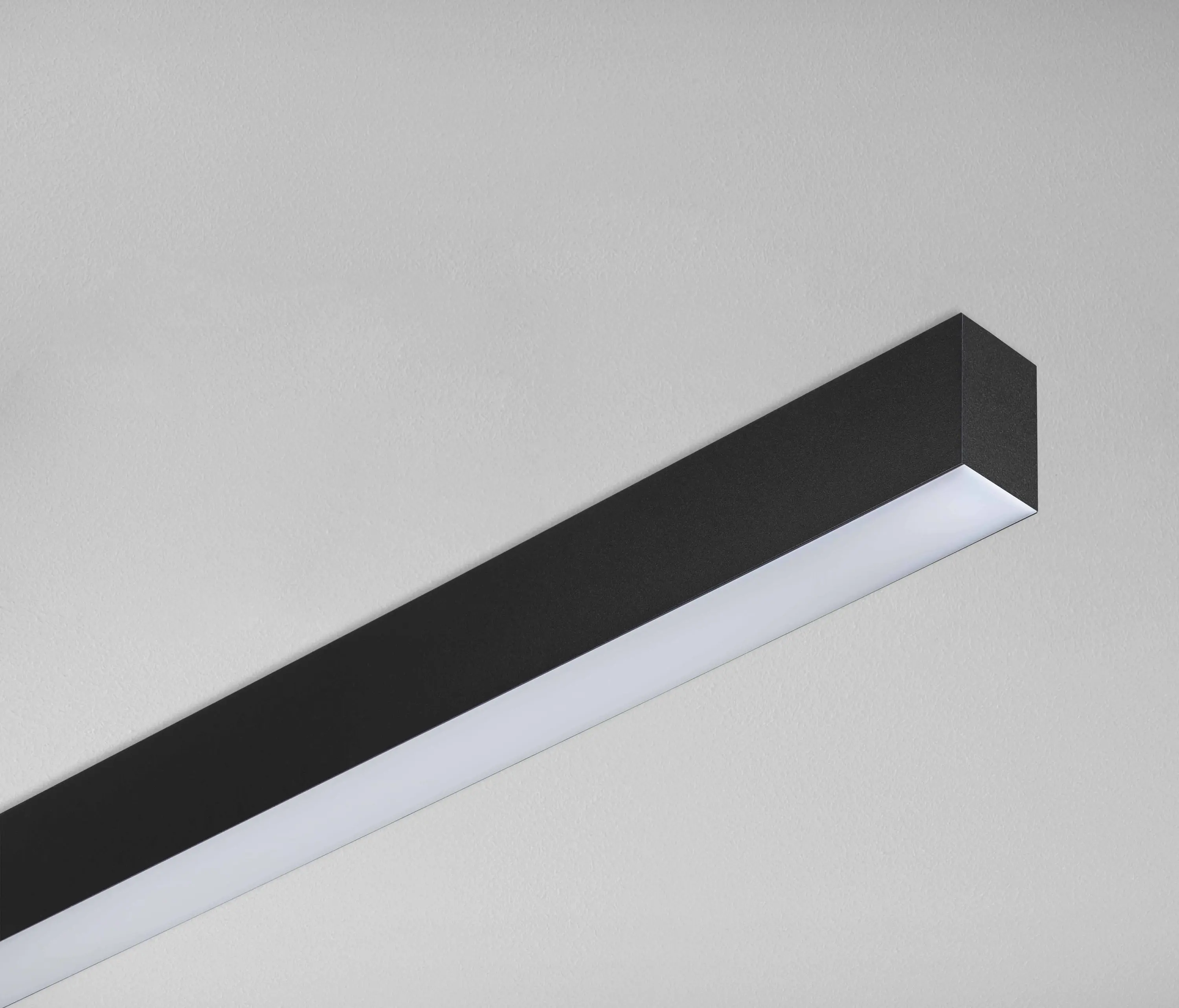

BRI READY OPAL LINE HIGH POWER

General data:

Mounting type: surfaced, suspended

Luminaire body: aluminum

operating temperature range: from -20° to +35°

Lifetime L80B10: 100 000h

Ingress protection IP: IP44

Optical data:

Light distribution: symetrical

Contains light source: yes

optical system: opal diffuser

Material: PMMA

Protection class: I

Lighting data:

colour rendering index: CRI≥80 (on request: CRI≥90)

glare indicator UGR: 22

Type of source: LED

Electrical data:

nominal voltage: 230-240V AC

nominal voltage: 50-60Hz

Dimming: DALI, Casambi, on-off

1558lm/ 18W/ 3000K/ L=566mm

1623lm/ 18W/ 4000K/ L=566mm

2337lm/ 26W/ 3000K/ L=846mm

2435lm/ 26W/ 4000K/ L=846mm

3117lm/ 33W/ 3000K/ L=1126mm

3246lm/ 33W/ 4000K/ L=1126mm

3895lm/ 42W/ 3000K/ L=1406mm

4058lm/ 42W/ 4000K/ L=1406mm

4675lm/ 50W/ 3000K/ L=1686mm

4869lm/ 50W/ 4000K/ L=1686mm

5454lm/ 58W/ 3000K/ L=1966mm

5681lm/ 58W/ 4000K/ L=1966mm

6233lm/ 66W/ 3000K/ L=2246mm

7791lm/ 82W/ 3000K/ L=2806mm

8116lm/ 82W/ 4000K/ L=2806mm

9350lm/ 98W/ 3000K/ L=3366mm

9739lm/ 98W/ 4000K/ L=3366mm
