About this product
Architonic ID: 1201367
Recessed for outdoor applications, single or double beam; recessed (ceiling, wall, ground); body and trim in AISI 316L stainless steel or aluminium, screen in opal polycarbonate or tempered glass; finishes: stainless steel, anthracite, grey; power LEDs, RGB: 3 LED; max 2W, 3W- max 350mA, 500mA, 700mA; RGB: max 350mA; delivered lumen output: single beam: 70 lm (3000K, 500mA), 107 lm (3000K, 700mA), double beam: 51 lm (3000K, 350mA) per emission; optics: 8°, 26°, 44°, diffuse, radial; LED colour: white- 2700K, 3000K, 4000K, 5000K; blue; RGB; ingress protection: IP67; impact resistance: IK06, IK09; equipped with IPS; appliance class: III; weight 0,25 kg; body dimensions Ø60x59 mm, 60x60x59 mm
Concept

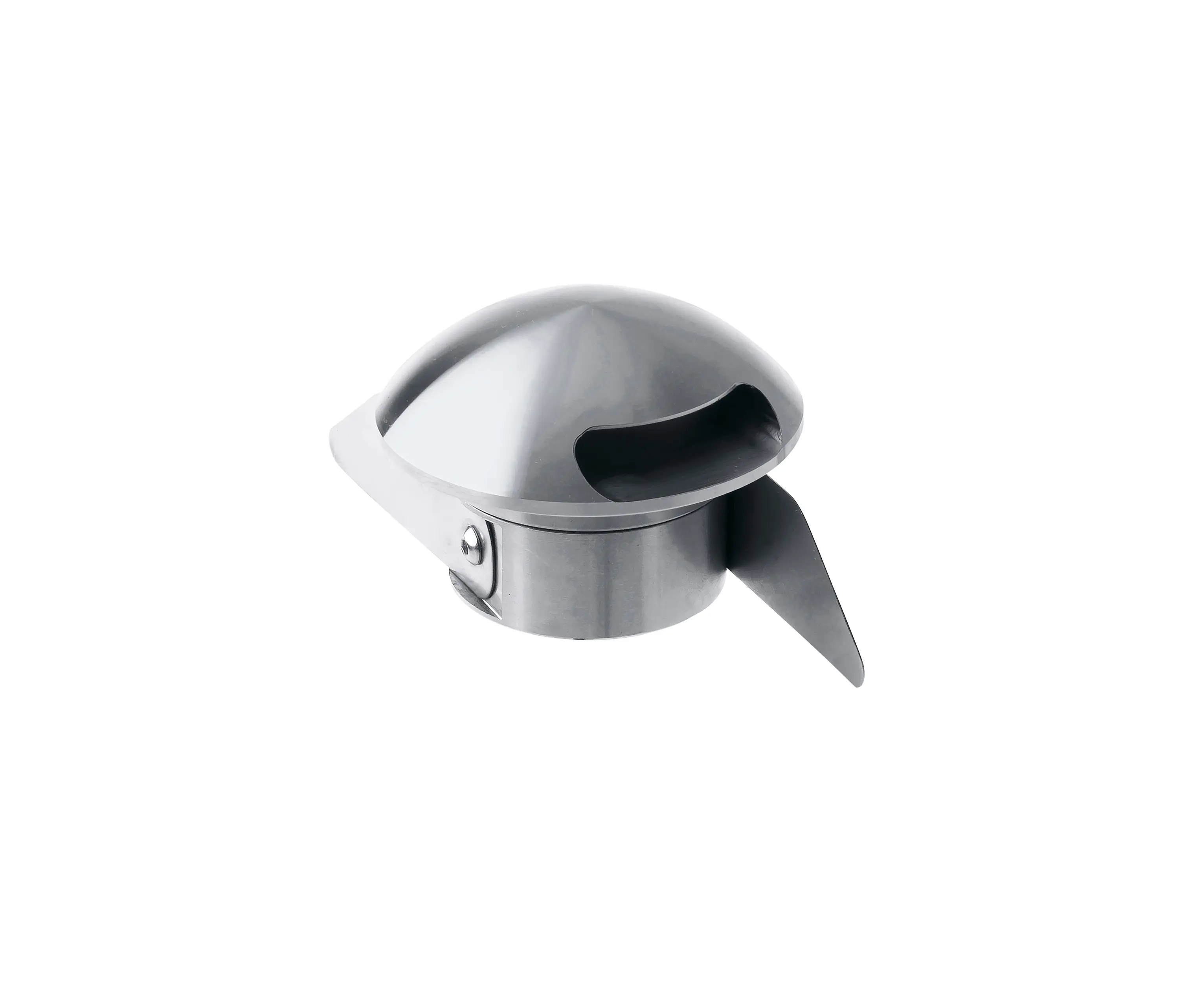

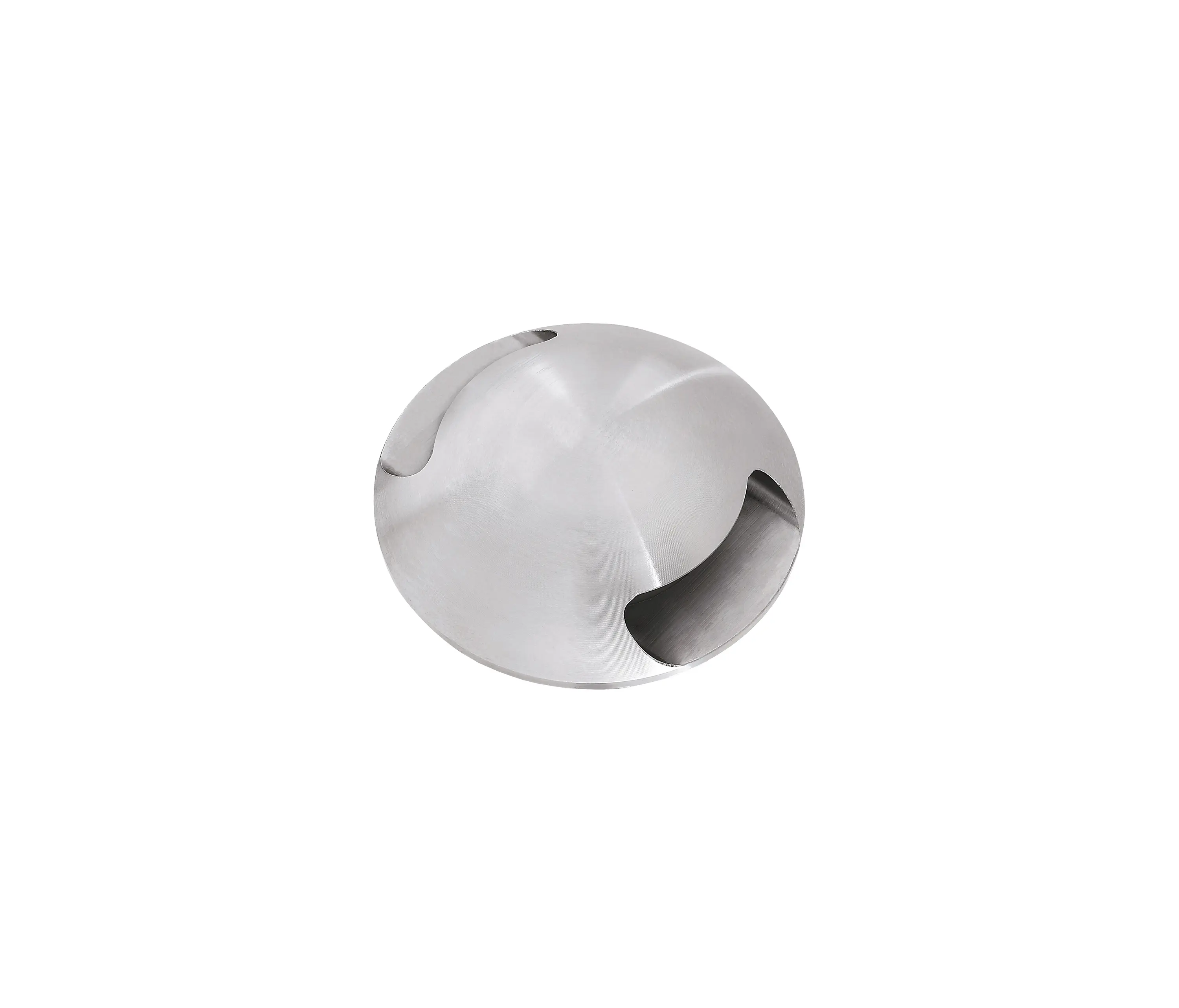

The Beam family consists of two recessed fixtures for outdoor installation, one with a trim flush with the installation surface, the other with a cap and lateral light emission to indicate pathways and pedestrian zones. Both use power LEDs.
This product belongs to collection:
Specifications
Category
General lighting
Feature
LED lights, Orientation lights
Usage
Outdoor / Garden, Urban space
