OYO D
About this product
Architonic ID: 1204417
Year of Launch: 2011

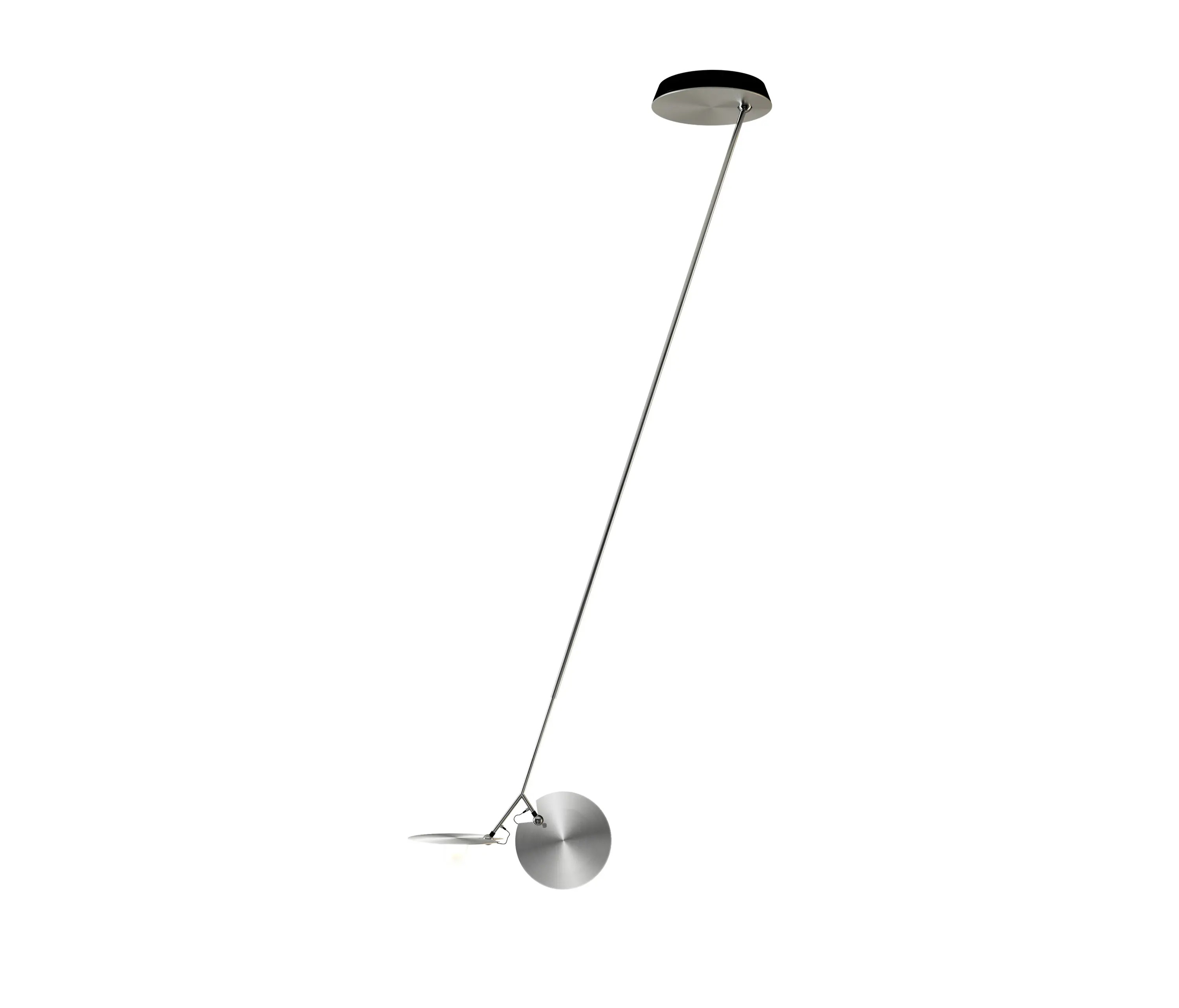

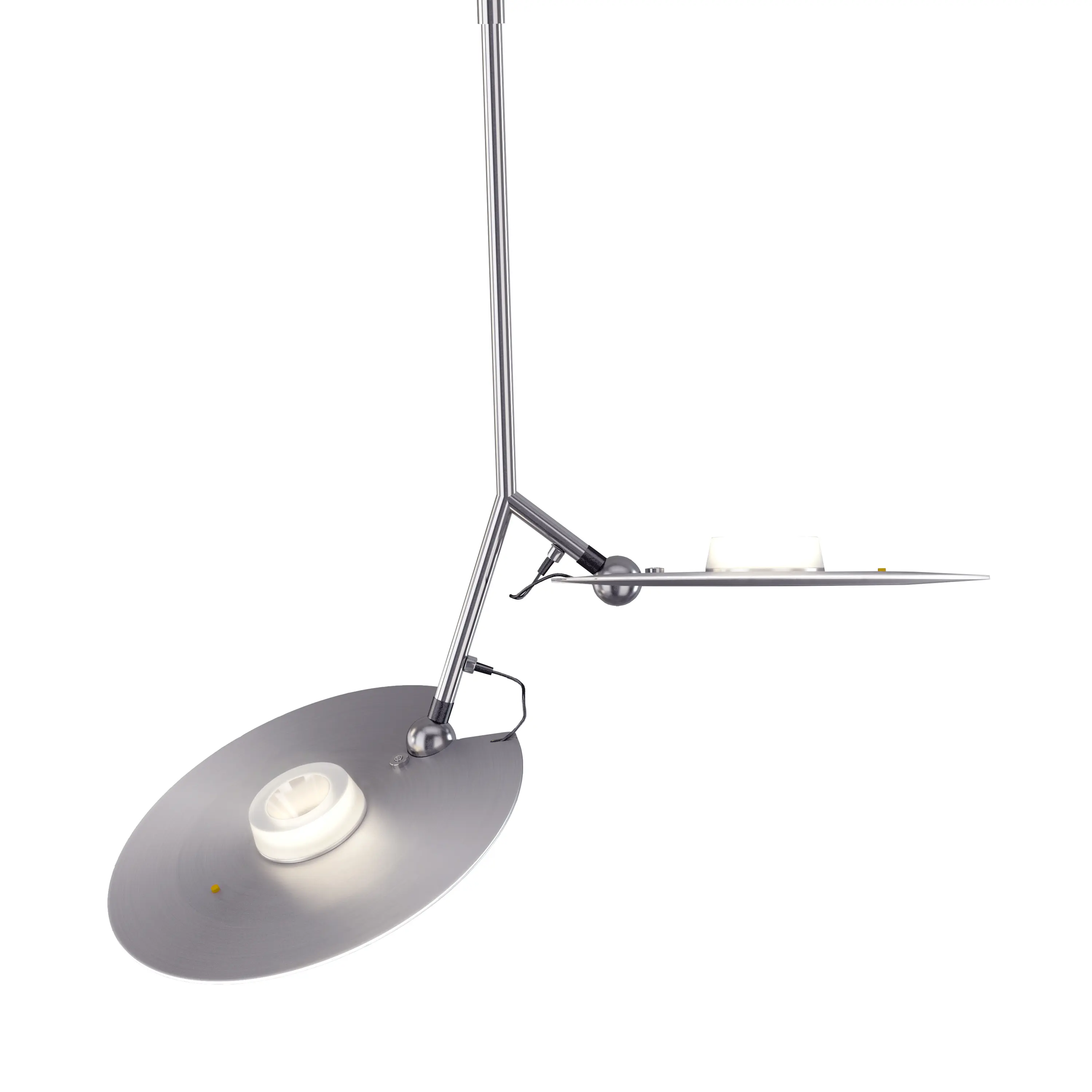

The ceiling luminaire OyO D with telescopic slide and two reflectors fits for circular or square tables. The luminaire height can be precisely adjusted for various room heights up to a maximum of 4m with various telescopic pull-outs.
The integrated ball-and-socket joint in the mounting plate allows deflection on all sides up to 30°. The luminaire can be dimmed and switched at the respective heads in 5 steps.
The new luminaire head from OyO (introduced January 2018) enables the use of additional optics. The wide beam light of the luminaire head without optics (120°) can be focused to 100°, 60° or 20° with the various magnetically adhesive optics. The push button for switching and dimming is located on the underside of the lamp head. The temperature control prevents overheating and guarantees a long lifespan of the LED. The luminaire head can be replaced without tools.
Model: alu elox. | schwarz elox. | bronze anod.
Telescope: Chromium plated, height adjustable
Base: Black, control gear and cable integrated
Base Cover: alu elox. | schwarz elox. | bronze anod.
Cable: Transparent 1.5m
Accessories: 1 Optic 100°, Optional optic 20°, optic 60°
Light source: 2x1 Power-LED
Beam angle: 120°
Light color: 2700K | 3000 K
CRI/RA: min. 80
Luminous intensity: 1090lm | 1170lm
Reated power: 18W
Steuerung: Switchable and dimmable in 5 Step at the lamp head (Memory)
Concept
OYO is an LED luminaire system consisting of floor and ceiling luminaires. Typical for OYO is the all-sided movable linkage with its ingenious technology of power supply as well as the circular lamp heads. Ball joints and magnets allow versatile rotary movements. During operation, a fine glow of light manifests itself on the edge of the luminaire head. The highly efficient light of the power LEDs makes OYO the ideal luminaire for home and commercial use.
The new luminaire head from OyO (introduced January 2018) enables the use of additional optics. The wide beam light of the luminaire head without optics (120°) can be focused to 100°, 60° or 20° with the various magnetically adhesive optics. The push button for switching and dimming is located on the underside of the lamp head. The temperature control prevents overheating and guarantees a long lifespan of the LED. The luminaire head can be replaced without tools.
This product belongs to collection:
Specifications
Material
Aluminium, Metal
