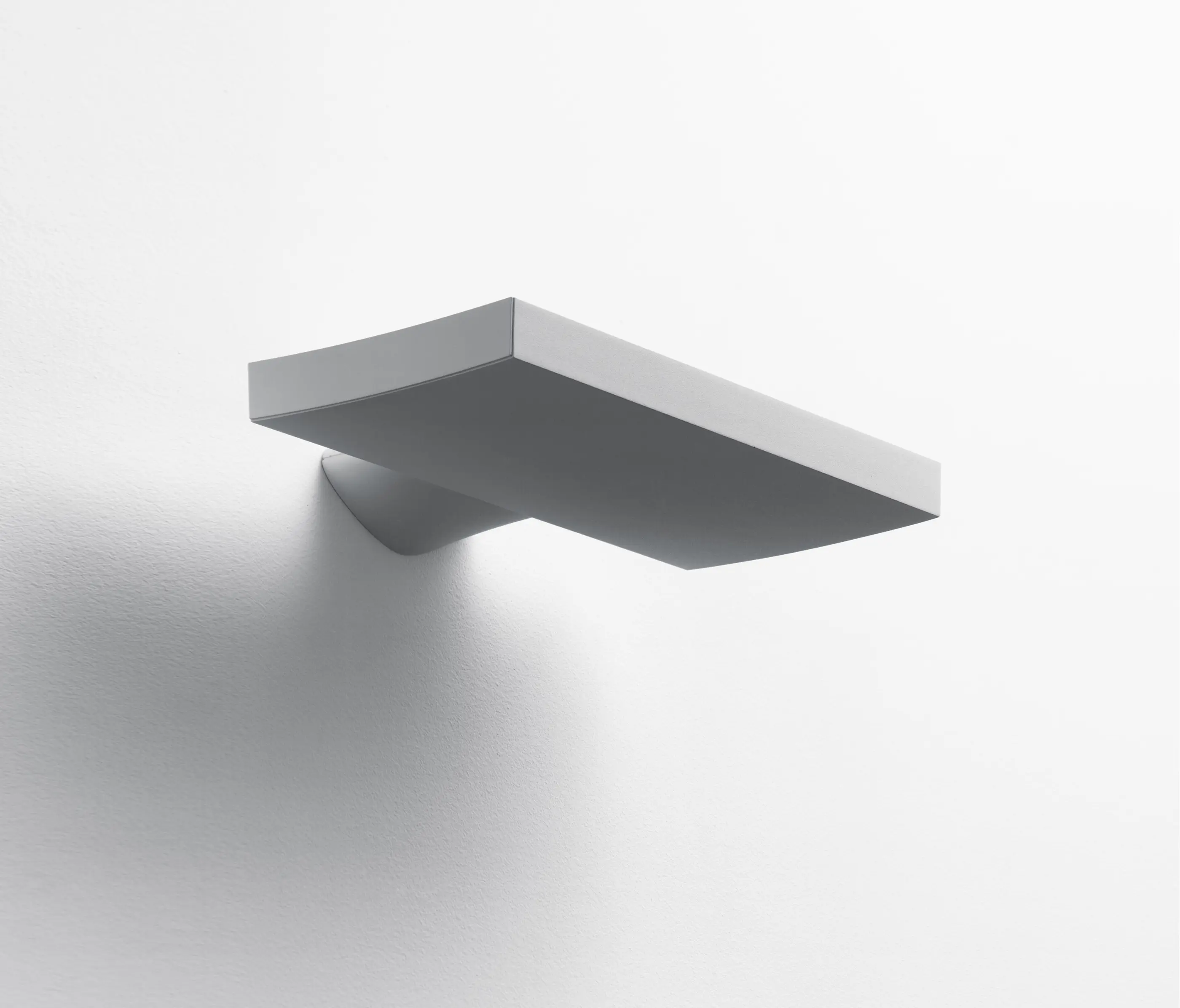

Surf Wall 460

Surf System

• modular system for indirect lighting using 2x14w to 2x80w t16 fluorescent lamps.

• extruded aluminium body with a white or grey paint finish.

• can be installed as a pendant or wall light.

• continuous linear mounting or with 90° connectors, 3 and 4 ways connectors.

• light output ratio: 72%.

• electronic ballast, or dali-switchdim dimmable electronic ballast, or interactive-dali system combining a movement detector and a daylight sensor for auto-regulation in relation to people presence and variations in daylight. emergency lighting as an optional extra.

• dust protection cover made of extruded polycarbonate.

• quick adjustment steel suspension cables.

• complies with standard en60598-1 and other specific standards.

Surf Wall

• a range of wall lamps with indirect lighting, using 300w halogen, 150w metal-halide and 1x18w, 2x36w and 2x55w tc-lel fluorescent lamps.

• aluminium body with white or grey paint finish.

• 3 size options: 174x300mm, 290x460mm and 290x600mm.

• electronic ballast.

• protective glass (for halogen and metal-halide versions) or polycarbonate dust-protection screen (for 2x36-55w tc-lel versions).

• complies with standard en60598-1 and other specific standards.

Minisurf Wall

• a range of wall lamps with indirect lighting, using 150w halogen and 24w t16 fluorescent lamps.

• aluminium body with white or grey paint finish.

• 2 size options: 150x340mm and 170x766mm.

• integral electronic ballast.

• fluorescent version comes with punchings and coloured filters (blue, orange and opaque white) for a decorative direct lighting effect.

• complies with standard en60598-1 and other specific standards.
