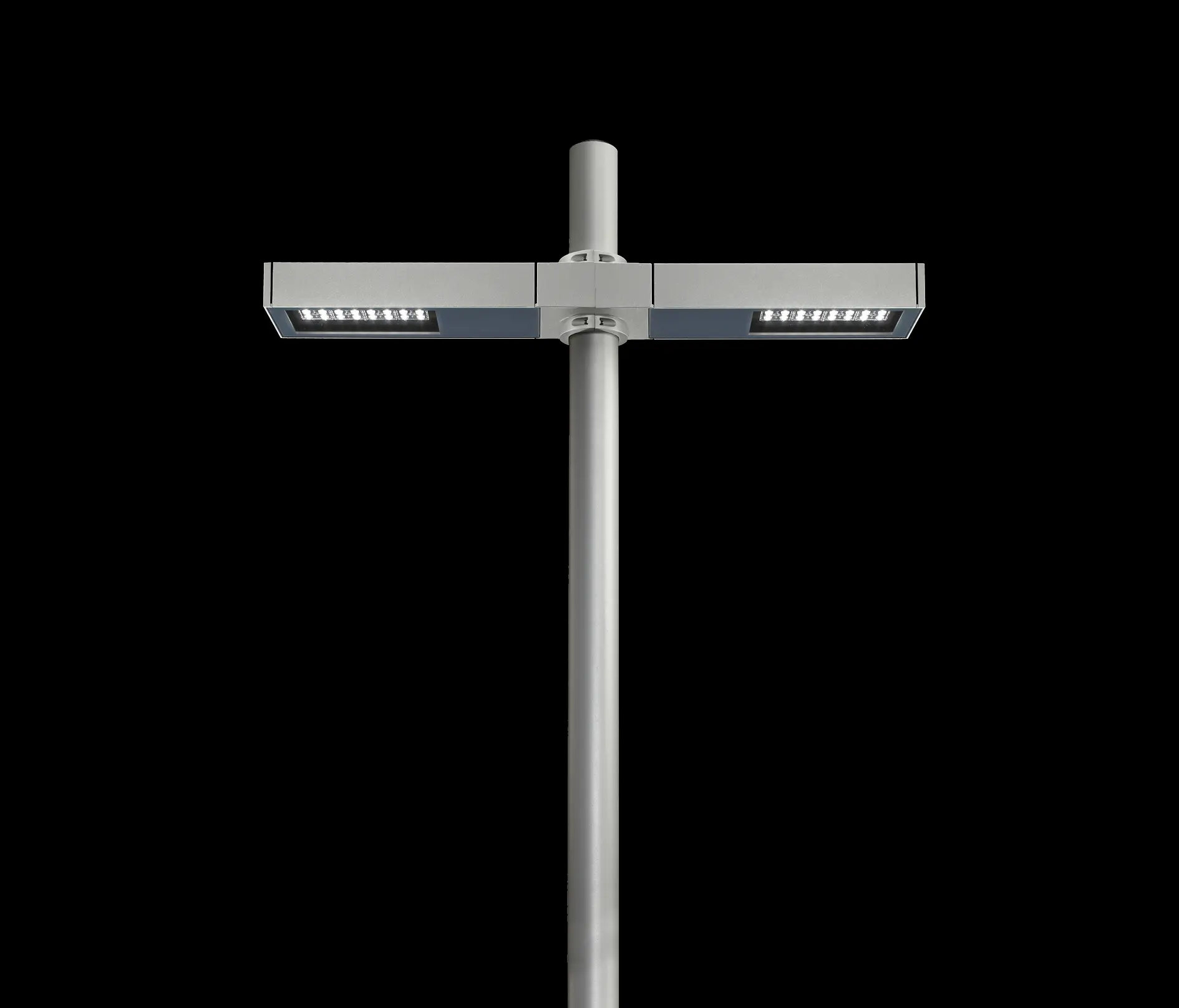

Dooku 400 Power LED / Pole Ø 76mm - Double Top Pole - Wide Beam 120° (Wide Spaces - Public Areas - Parking Areas)

• Projector for installation on wall or on pole (Ø76mm or Ø102mm).

• Configuration: extruded aluminium structure with die- cast closing ends, EN AB-47100 alloy (low copper content). Glass diffuser: extra-clear with silk-screen border, fixed to the aluminium through a robotic gluing system.

• Double layer coating for high resistance to corrosion: the aluminium components are painted with a double coat using powders which are compliant with QUALICOAT standards: a first layer of epoxy powder (with excellent chemical and mechanical resistance) and a second finishing layer of polyester powder (resistant to UV rays and atmospheric agents). The entire painting process of the aluminium fitting starts from components which have been sand-blasted in advance to make the surface more porous and increase the adherence of the paint. Ares effects alkaline and acid washing to clean the surfaces completely, then rinses with demineralised water to remove any residue particles, subsequently a chemical conversion treatment is done to protect against rusting.

• Protection rating: IP65.

• In compliance with EN60598-1 standards.

• Class of insulation: I.

• Installation: the luminaire is equipped with 400mm cable

and a 2-way terminal block for 3-conductor cables- IP68.

.6 Grey

.3 Anthracite
