About this product
Architonic ID: 20259310
Year of Launch: 2013
Description

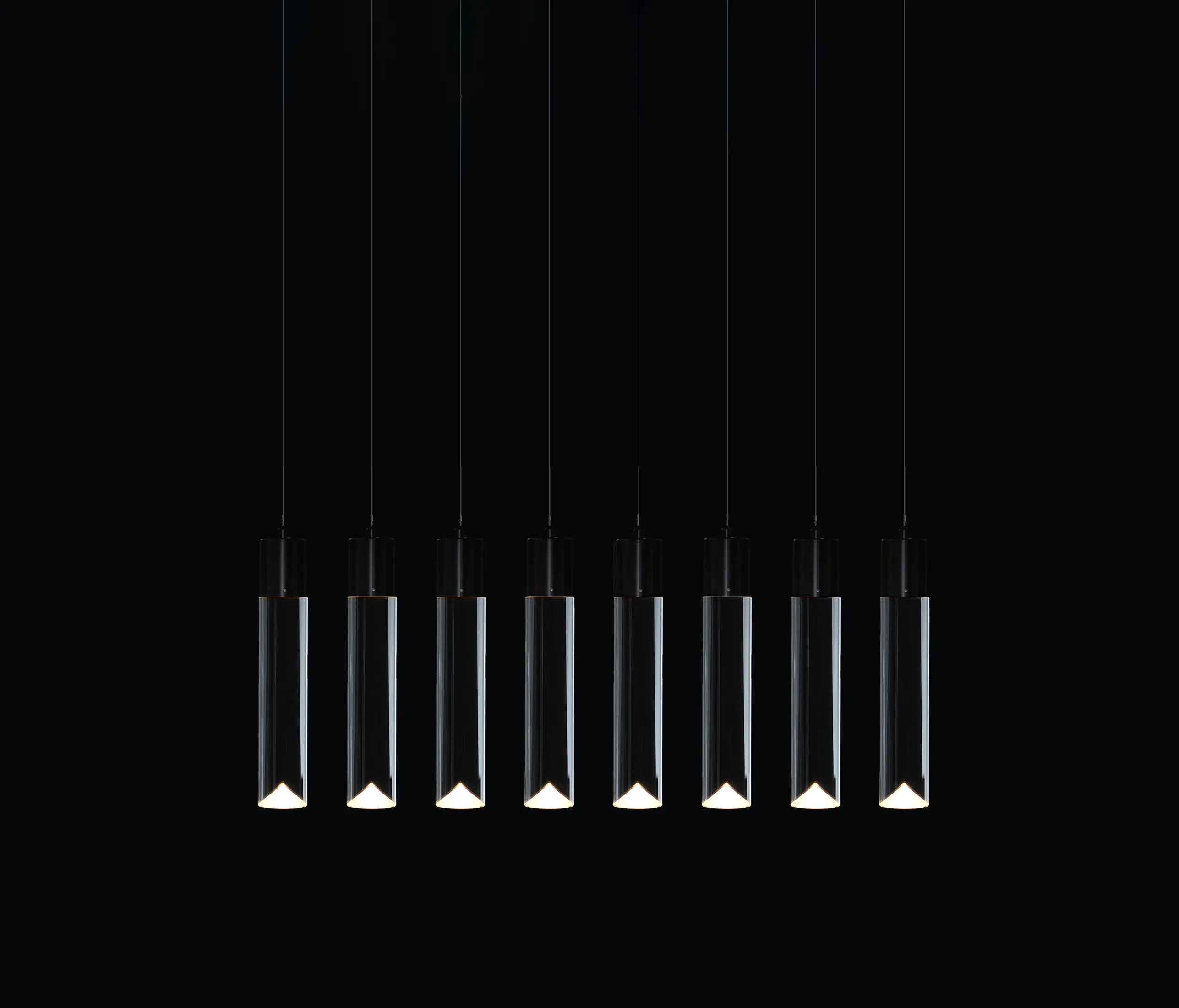

High efficiency LED decorative eight pendant luminaire with machined aluminum housing and clear acrylic TIR light control lens. Canopy and mounting plate provided with 4x 0.25″ dia. holes on 11″x 3″ centers. Mounts over 4″ octagonal j-box (by others).
Lamping
Single 2 watt LED, 150 lumens, 90 CRI, 2700K (warm white color temperature).
Optional 3000K, 3500K color temperatures available
Cable Length
120″(3048mm) suspension cable provided standard. Field adjustable.
Metal finish
Clear anodized aluminum (Standard Finish)
Black, Champagne, Gold anodized finishes available
Light Distribution Optics
Clear lens with diffuse optics
Clear lens with concentric optics (Optional)
Satin finish with diffuse optics (Optional)
Electrical
Constant current class 2 driver (0-10V dimmable), 120/277V 50/60Hz, 700mA (sold separately). See D8_700 remote driver spec sheet for details.
Approvals
Approved to UL safety standards.
Concept
Dimmable LED mini chandelier

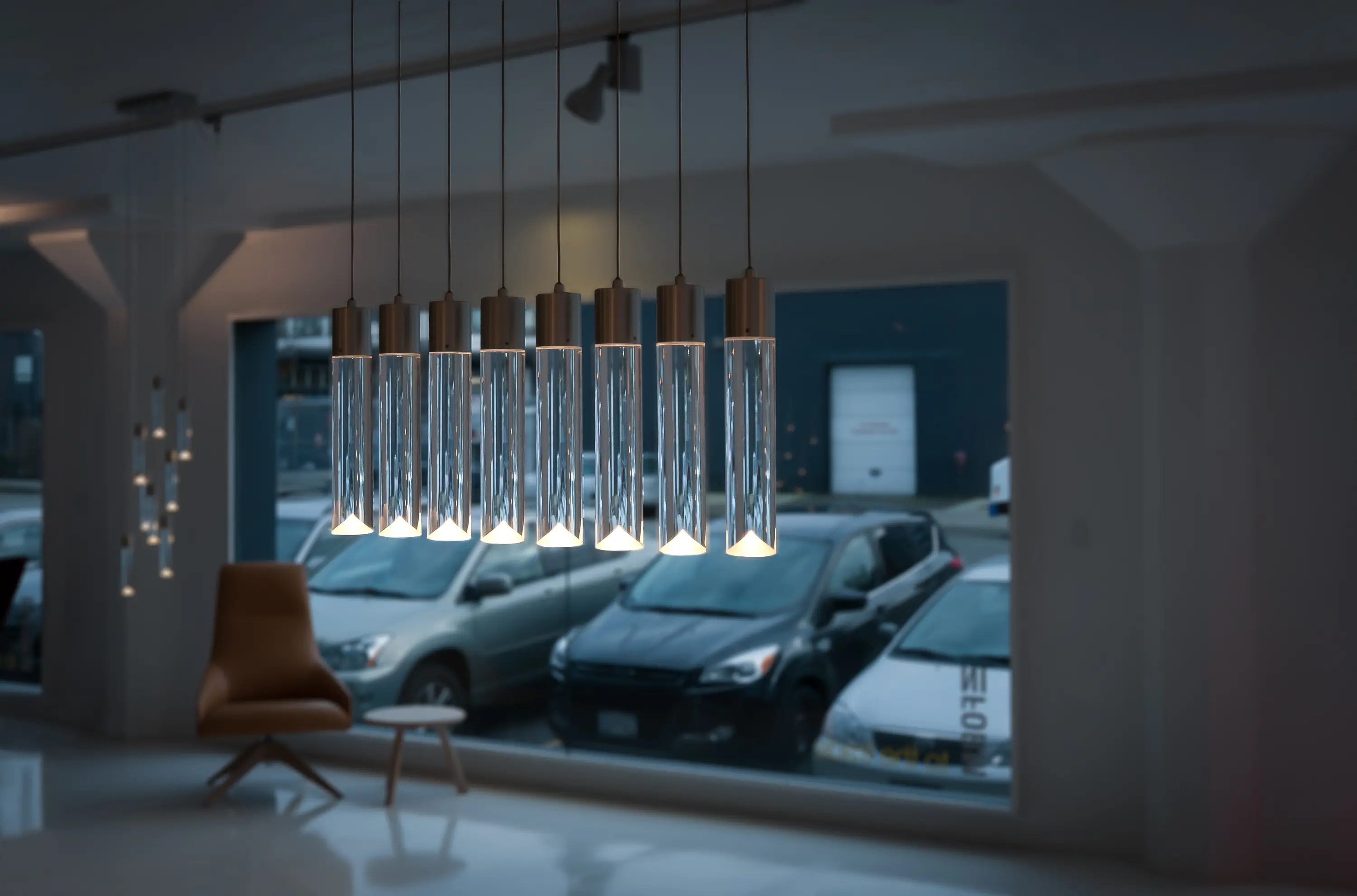

Eight light, linear configuration dimmable LED mini chandelier provides flattering illumination and accent highlights. Ideal for creating feature accent lighting in entrance and dining areas. A classic design featuring a clear cylindrical lens with conical light diffuser produces two lighting effects: diffuse illumination, creating pools of light; or concentric highlights, evoking water drops falling on water for a dazzling accent.
This product belongs to collection:
Specifications
Material
Acrylic, Aluminium, Metal, Plastic
