AR888 Combination Unit

Name: AR888 Combination Unit
Brand: Hoppe

Panic hardwarebyHoppe

Home

Panic hardware

About this product

Architonic ID: 20164253

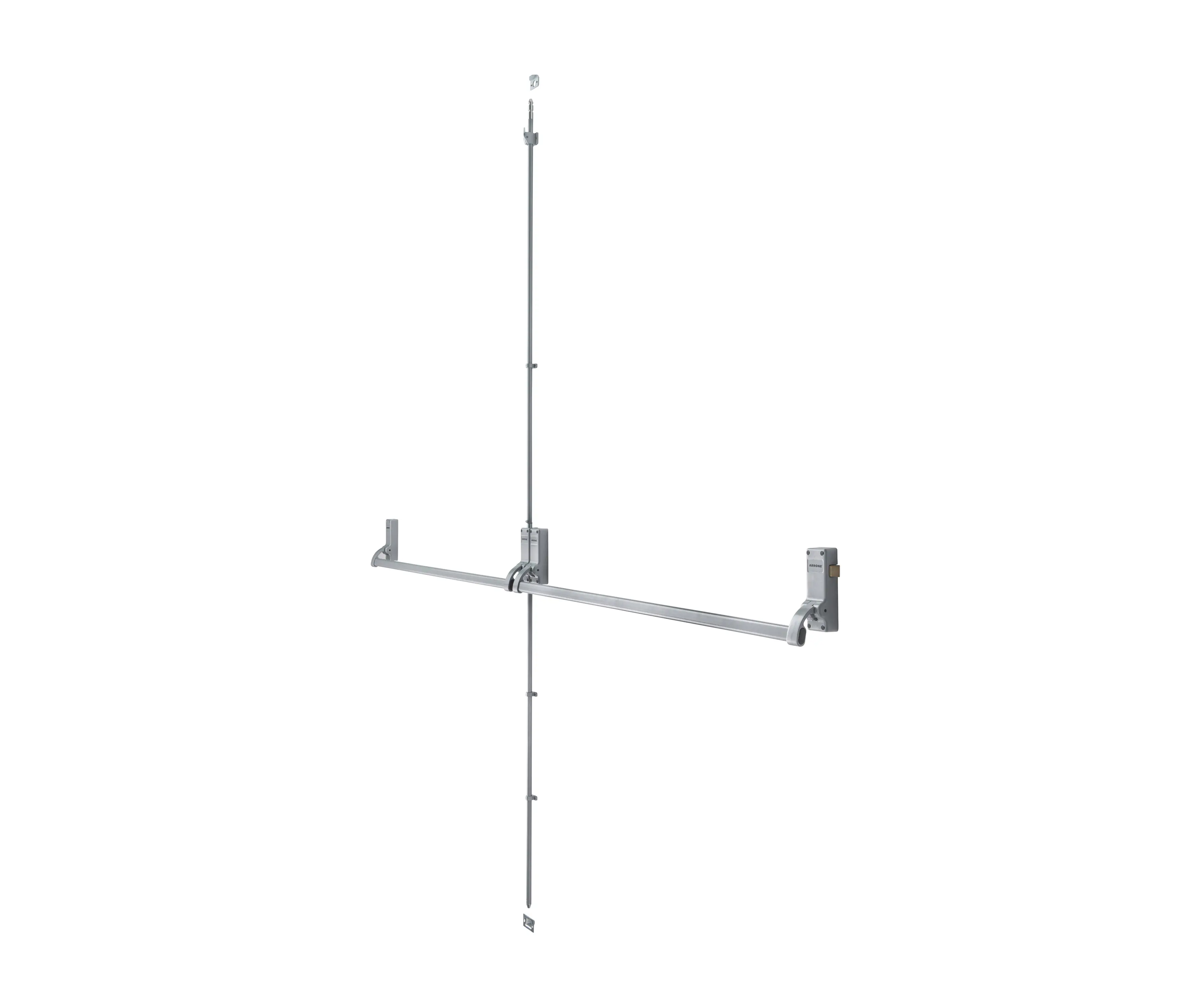

AR888 HOPPE-ARRONE combination unit for double rebated doors:

Maximum door height: 2200 mm (extra length vertical rods available for doors up to 2500 mm high)

Maximum door width: 1220 mm

Maximum door weight: 200 kgs

Fixing: Timber fixing screws supplied (Steel door fixings and strike plates available separately)

Supplied with “Push Bar To Open” signage

Testing: BS EN 1125:2008 (Classification 3 | 7 | 6 | B | 1 | 4 | 2 | 2 | A | A ); BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.

Certifire approved: CF810; CPR DoP: HUK0022

CE Marked

Note: In accordance with the scope of EN 1125, doors up to 2500 mm high and 1300 mm width are covered by the stand-ard. Doors taller or wider than this will not be covered by the standard and the test evidence gained.

Product References:

AR888-SE combination unit for double rebated doors in silver finish

AR888-GE combination unit for double rebated doors in gold finish

AR888-FP/SD fixing pack for AR888 to suit steel doors

Concept

Panic and emergency exits in public and commercial buildings have a critical role to play in assisting people in exiting a building quickly and safely. HOPPE ARRONE range of panic and emergency exit devices gives options of exit device, external access device, fixing options for wider/taller doors, finishes for various applications. All of our panic and emergency exit devices are con-tinuously tested to the requirements of BS EN1125 (panic exit devices), BS EN179 (emergency exit devices), are CE marked and CERTIFIRE approved making it a safe choice for specifiers.
