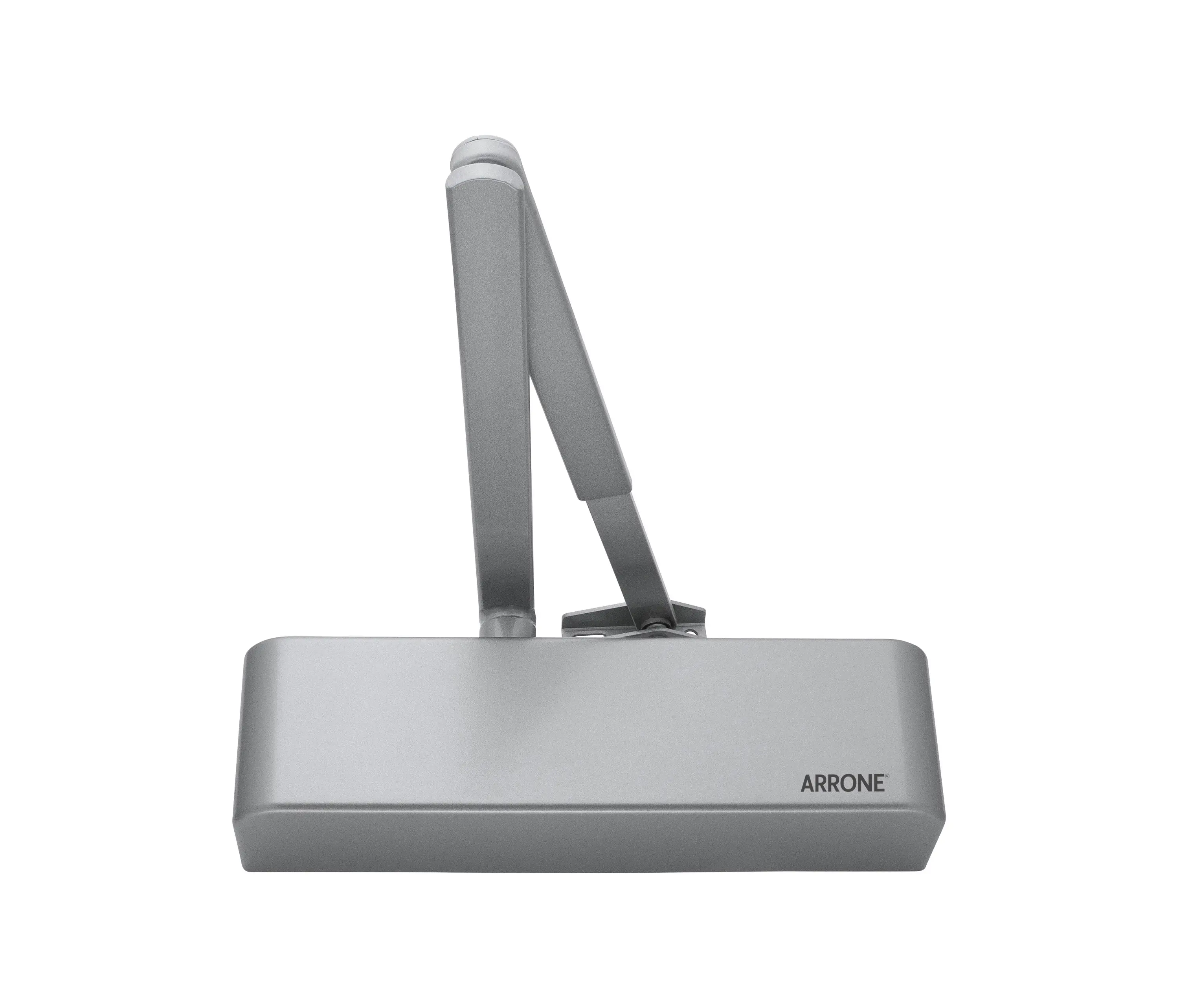

AR1500 Door Closer

AR1500 HOPPE-ARRONE door closing device:

Power size: 2 to 4 adjustable by spring tension

Adjustable functions: Closing speed, backcheck, latching

Cover: Radiused cover

Maximum door width: 1,100 mm

Maximum door weight: 80 kg

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

Door mount pull (Fig 1), door mount push (Fig 6), transom mount pull (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 4

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

Certifire Approved: CF294; DoP: HUK0001

CE Marked

Product References:

AR1500-SSS/SSS door closer with matching arm in satin stainless steel

AR1500-PSS/PSS door closer with matching arm in polish stainless steel

AR1500-SE/SE door closer with matching arm in silver finish

AR1500-PB/PB door closer with matching arm in polished brass
