Advanced KR76

Advanced KR76 is a tilt and turn / hinged system that will provide maximum thermal insulation and weather protection for the most demanding positions while keeping a traditional French look with elegant geometries.

Material: high-impact uPVC with enhanced steel geometry

Features

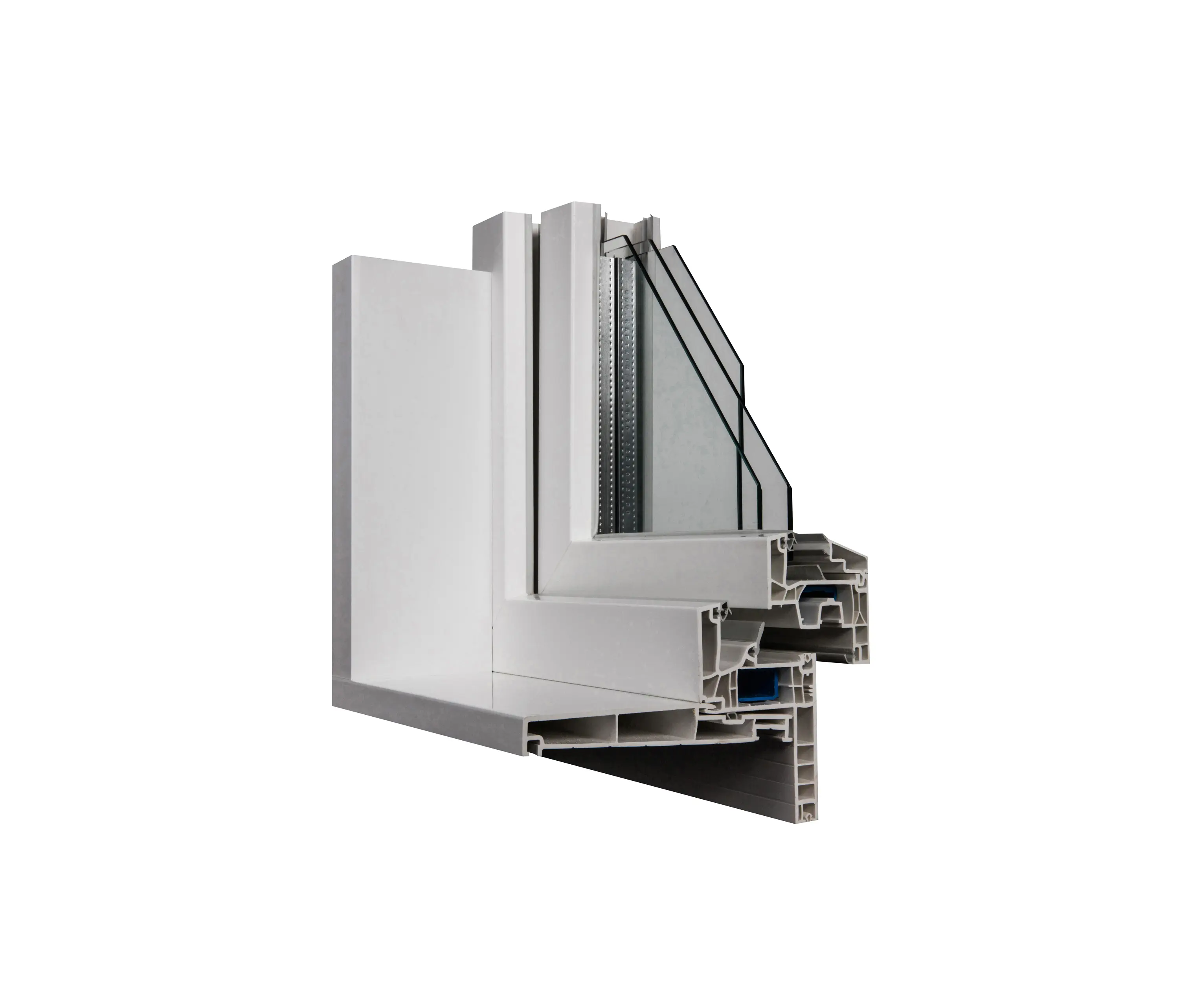

- Highly insulating 6-chamber center seal system with 76mm construction depth, straight design, and narrow profile views.

- 3 seals for optimal weather protection

- Increased thermal insulation through additional wing rebate seal

- the outer stops of the profiles are chamfered by approx. 10 °

- The corner bearing is screwed to the frame through 3 profile webs and into the steel reinforcement

- Striker plate is fixed directly into the steel reinforcement

- Drainage either to the front or below (consealed)

- Glazing thicknesses 24mm up to 48 mm

- Set-back glazing bead with an extruded sealing lip for a better look

- Welded seals in corners all around the window with secure weather control

- Concealed as well as visible fittings are possible

- Thermal insulation Uf = 1.0 W / (m²K)

- Complete profile series (main and secondary profiles) are stabilized with environmentally friendly calcium / zinc instead of lead
