Abso acoustic cubes

Characteristics of Abso Cubes

Composition

• Grey AP cellular foam

• Cover made of sound-transparent Aeria fabric

• Powder-coated steel hoop (if required)

Acoustic performance

Equivalent absorption area A (m²) at mid-range frequencies

• 380 Cube: 1.00 m²

• 500 Cube: 1.65 m²

• 750 Cube: 3.82 m²

Durability of the aeria fabric cover

• Run-resistant

• 330 g/m²

• Protection against soiling:

– Hydro/Oleophobic ≥ 5 (AATCC118 and AATCC193)

– Electrostatic properties 7 x 1010 Ω (EN 1149-1)

Reaction to fire classification

Complete product : C-s3, d0

Cleaning

Vacuum cleaning, may be taken apart and refitted, removable covers, machine washable.

Environmental characteristics

• Abso accessories meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:

– their acoustic contribution

– their very low emissions of VOC and formaldehyde

• All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol.

Guarantee 10 years

Fitting

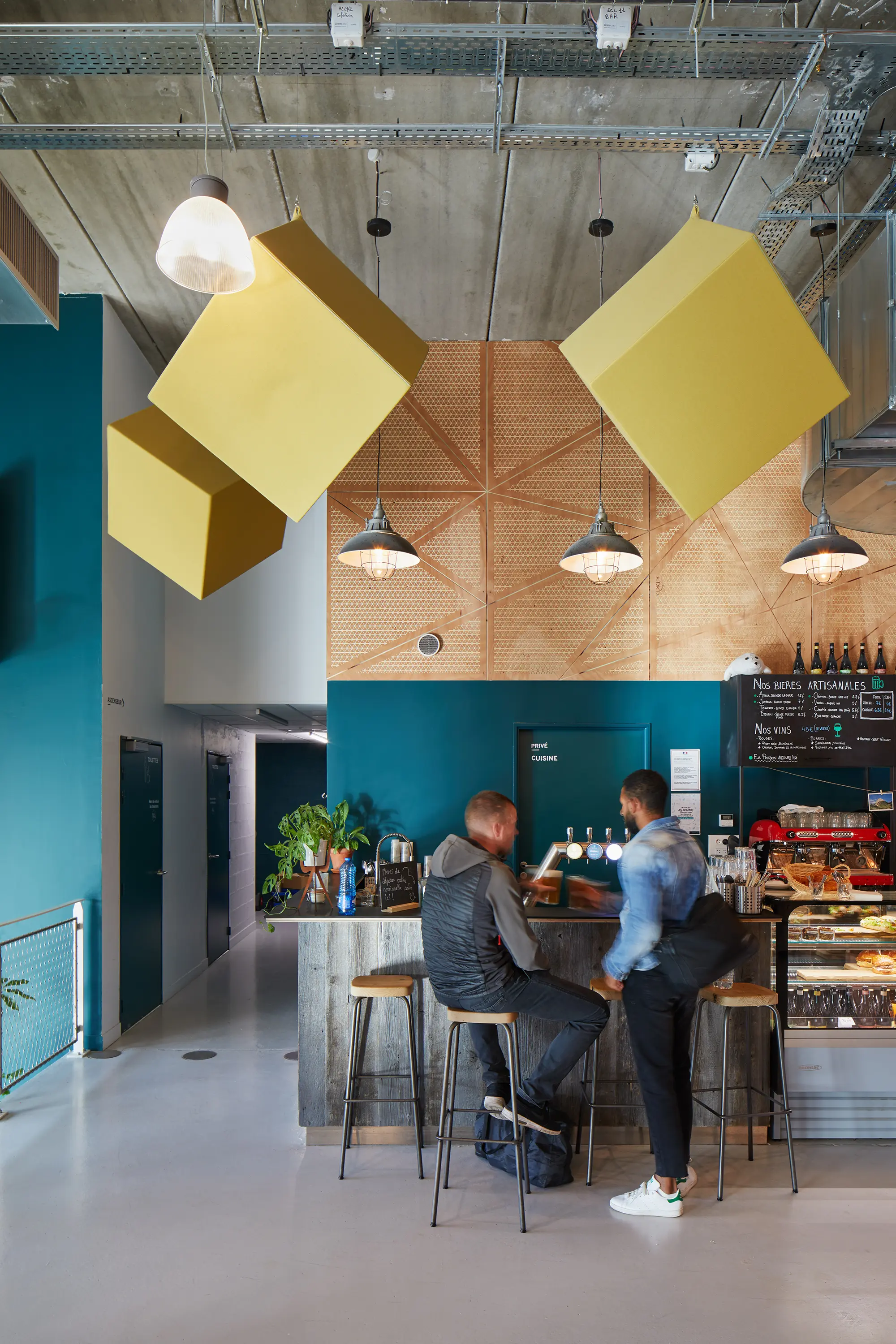

• Suspended from a corner: the Cube is suspended using a fabric loop and a galvanised steel cable (diameter 1.5 mm, length 1,000 mm), fitted with a threaded end-piece (M6) and an adjustable latch-eye hook.

• Suspended horizontally: the Cube is suspended using a powder-coated steel hoop and galvanised steel cables (diameter 1.5 mm, length 1,000 mm), fitted with a threaded end-piece (M6) and an adjustable latch-eye hook. Abso Cubes

380 x 380 x 380 mm

500 x 500 x 500 mm

750 x 750 x 750 mm
