Pipeline CM4
About this product
Architonic ID: 20262592
SKU: PIP-P
Year of Launch: 2013
DESCRIPTION
The series applies the modular capability of the Pipeline series design, utilizing combinations of parts to create unique configurations such as ‘S’ curves, loops, and larger angular arrangements which suit an array of functional and decorative applications.
MANUFACTURED
Canada
MATERIALS
Aluminum
Acrylic

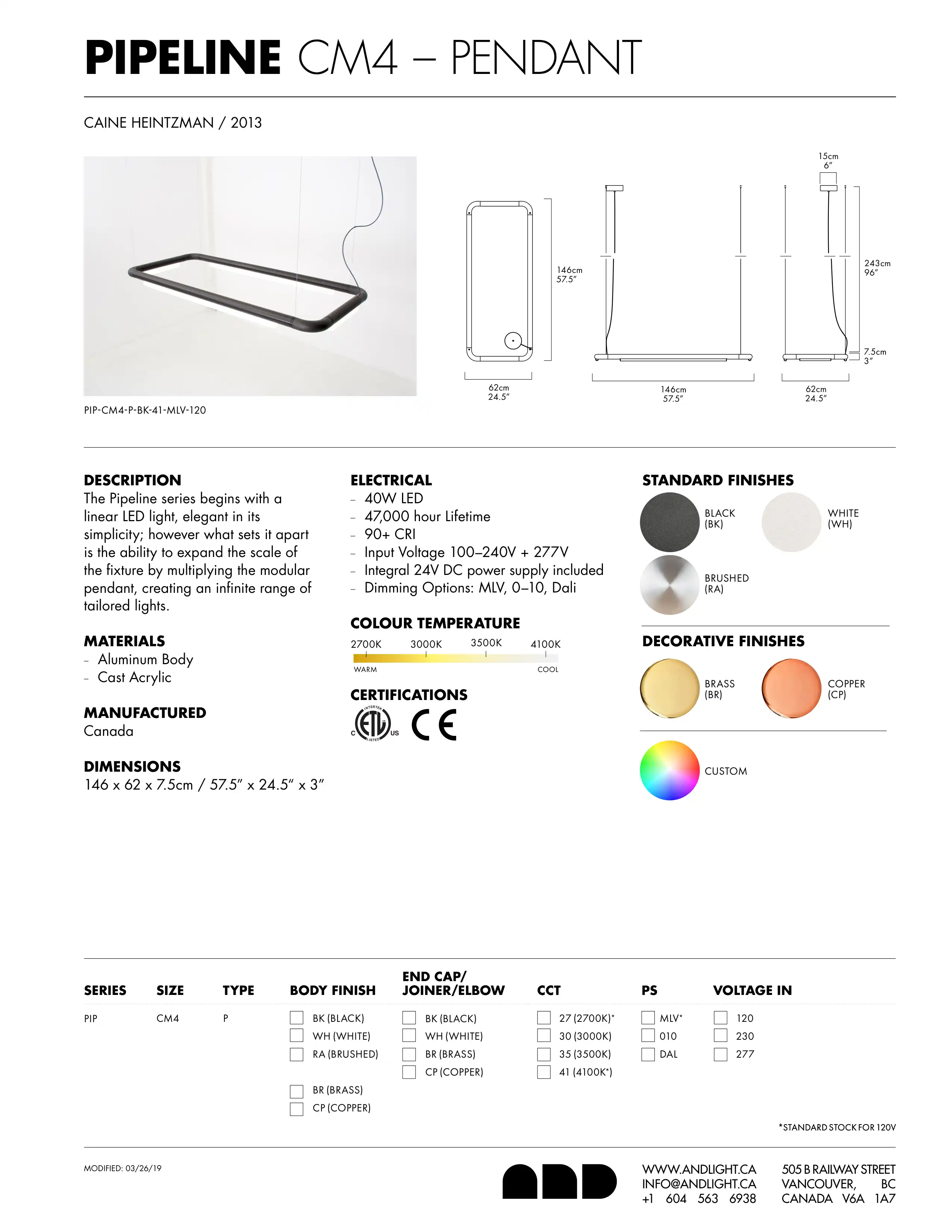

DIMENSIONS
– Luminaire: 146 x 62 x 7.5cm /
57.5” x 24.5“ x 3”
– Adjustable drop length: 243cm/96”
* CUSTOM LENGTH AVAILABLE
ELECTRICAL
– Input Voltage:
110–120V, 220–240V, 110–277V
– Lamping:
Integral 44W 24V DC LED
CRI 90+, 50,000 hours
– Lumens:
1910 lumens delivered
Controls/dimming:
PHASE DIMMING / 0–10V / DALI
Power Trim Options:
Trimless (mud-in, remote power supply)
CERTIFICATIONS
ETL / UL
CE
Dry indoor location
FINISHES
Black
White
Brass
Copper
Brushed
Concept
PIPELINE is the quintessential modular light fixture as its components enable it to match the contours of any given space.
This product belongs to collection:
Specifications
Variants
3
You can visit the product page for these variants—just click on them!
Downloads
4
Explore the A-N-D catalog collection.
Distributors
Designers
Caine Heintzman
Canada
Caine Heintzman is a designer exploring various mediums as he applies rigorous material research, technical know-how, and a comprehensive understanding of lighting technology to an artful practice. His training at ECUAD and Kunsthochschule Berlin Weissensee has enabled him to develop a meticulous approach, where he explores the interplay between function, art, object, and space, designing in a way that enhances and elevates the built environment. His craft is sculptural, with a focus on modularity, where repeated forms reveal an industrial elegance that has become a signature of his approach.
