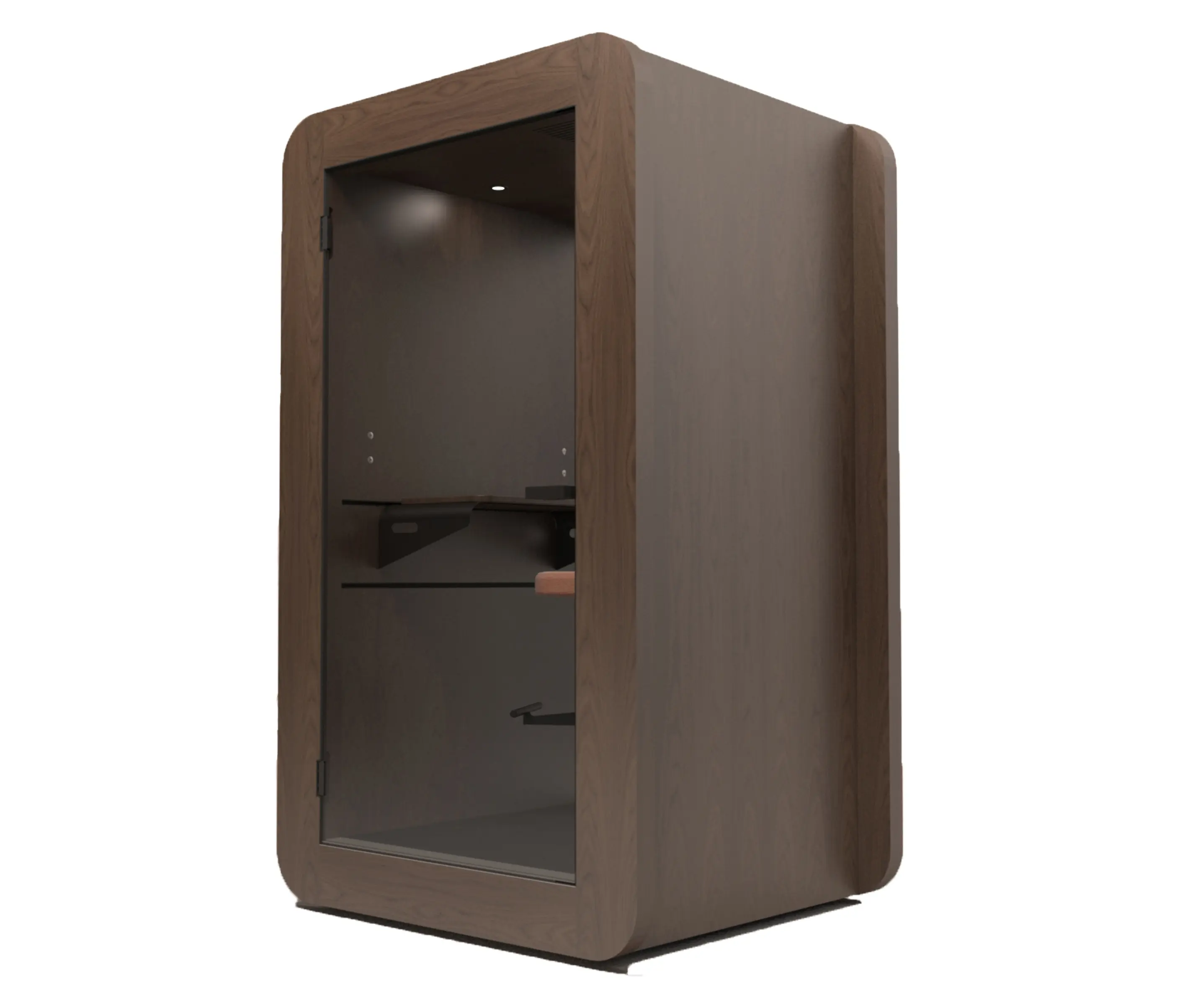

Gpod Mini Nano

Gpod Mini is the mobile phone booth combining fantastic acoustics with beautiful design. Both a space for private phone calls, and a room for undisturbed work. The world class sound insulation blocks the sound and your conversations can absolutely not be heard from the outside- privacy proof! We use Gustafs unique Nano technique for a superb interior sound absorption and the high capacity air refreshment system is so silent you won’t notice it. That’s comfortable working and perfect for tasks that require your concentration or when making important decisions.

WORLD CLASS ACOUSTICS

Due to our unique Nano perforation we can combine beautiful wooden surfaces with great sound absorbing coefficients for comfortable conversations, face to face or by video. The superb sound blocking qualities makes our pod private proof and the super silent high airflow ventilation

system completes the total acoustic experience – for many hours of relaxed and joyful working.

FLEXIBLE PLACEMENT

If it isn’t mobile, it’s not a pod. With integral wheels, the Gpod Mini is easily moved around with a precise positioning, and you can simply and quickly reposition it anytime you want. The power inlet options are multi-universal. Place it anywhere you want!

DESIGN

Gpod Mini is the result of more than 100 years experience of Scandinavian wood design. The design is simple and timeless, but the robust timber frame design gives it a unique and exclusive appearance and the transition from the wooden frame to the glass is completely seamless. The design is

underlined by only using the best natural materials and we craft them with care, for an outstanding quality and finish.

PRIVACY PROOF

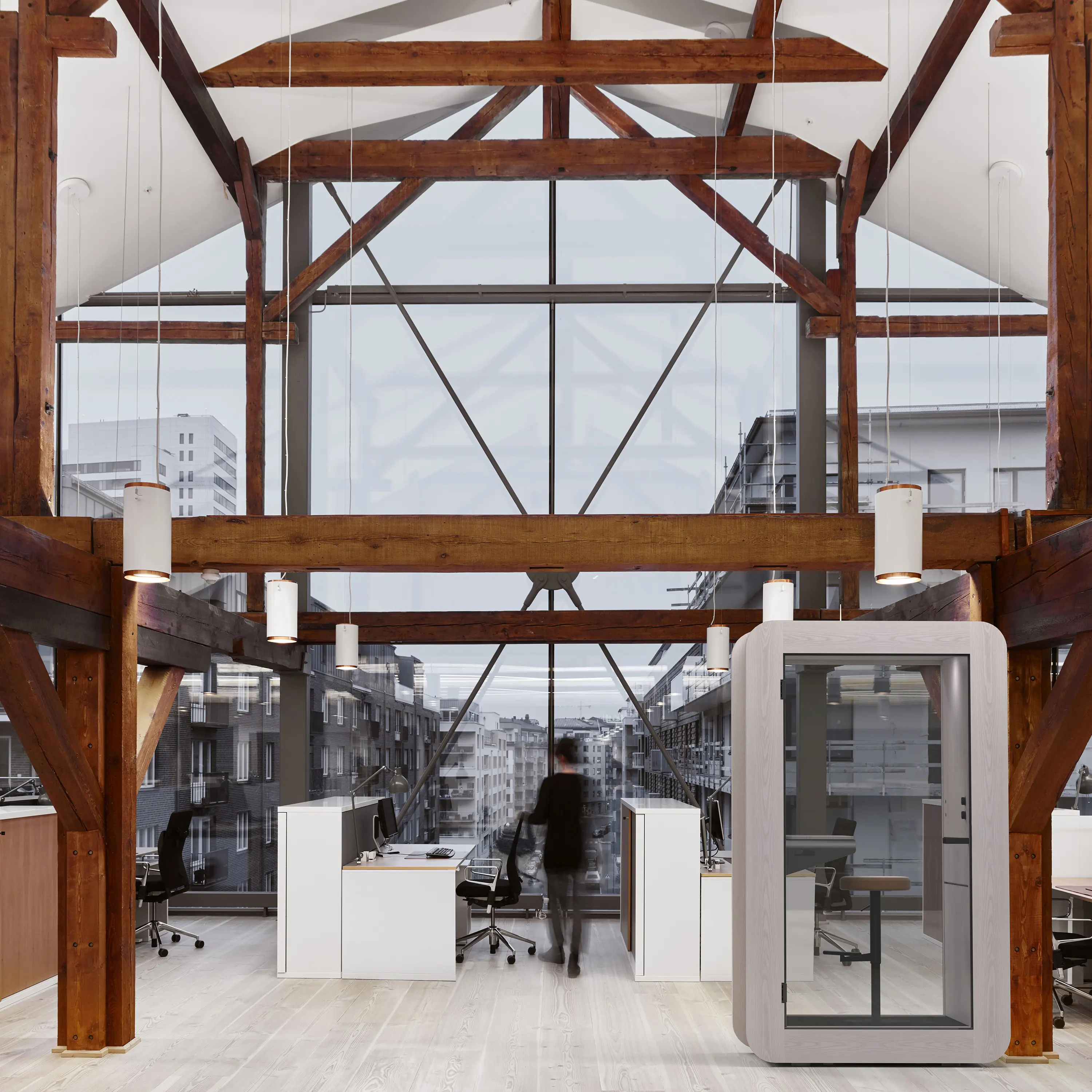

The soundproof qualities of Gpod Mini are at least as important as the comfortable acoustics inside the Gpod. In fact, you can place the Gpod Mini next to a workstation in the middle of an office and people working next to the Gpod will not be able to hear the phone calls taking place inside.

Gpod Mini is both a private workspace and a room for important thoughts and decisions.

THE INTELLIGENT POD

Our Gpod Mini is equipped with the Ochno Technology System. Lights and fans are automatically controlled by a sensor so that they adapts to how the pods are used. These parameters can also be set and adjusted for when no one is in the pod, when people are inside or with delays after

usage. Automatic control can be over-ruled by app or direct with the elegant dimmers on the pod’s inner walls. Our Gpod’s are the first intelligent cellular workspaces in the world. Modern pods, for modern workspaces.

FLEXIBLE LAYOUTS

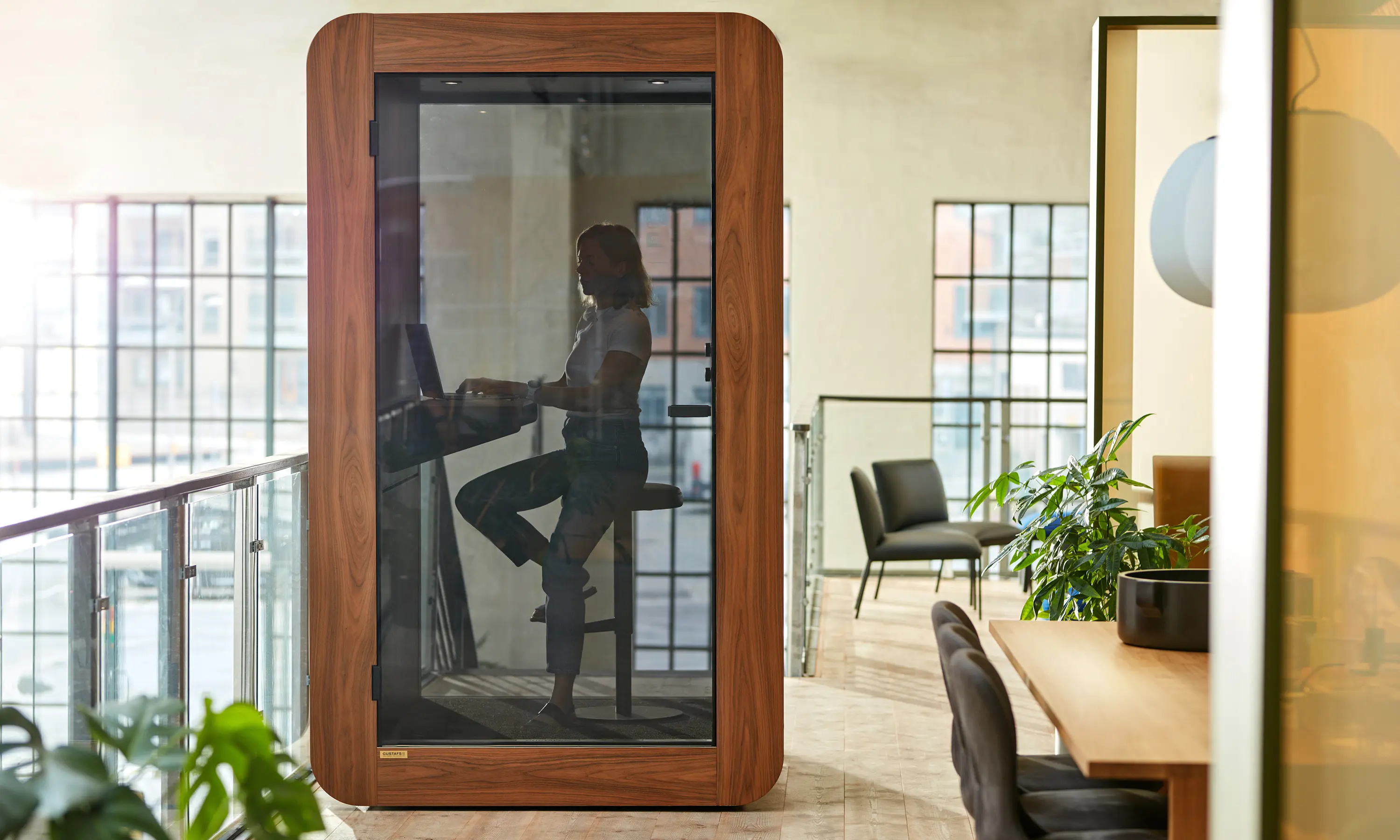

The Gpod Mini is available with two configurations and the good thing is that you can change it any time. Both come with an exclusive wooden interior and designer furniture, adjustable for your purpose. Of course both layouts have height adjustable tables and seating solutions, in case you

appreciate to vary your working position. We know the value of good ergonomics and active working!

Capacity: For 1 person, working facing the left or right wall or the backside glass.

For layouts see www.gustafs.com

Outer dimensions: Total footprint: 1420x1250 mm (wxd)

Total height: 2380 mm

Inner dimensions Floor space: 990x1220 mm (wxd)

Standing height: 2010 mm

Mobility By integrated wheels, can be rolled over 20 mm thresholds.

By forklift- can be raised 100 mm from the floor.

By forklift- truly self-supporting construction.

Placement Universal placement for Centre, Wall, Left Corner and Right Corner

Weight 490 kg

Front door Full width door 2000x1007 mm, opening 180° to full

width. Magnet soft close. Sound proof glass, tempered, privacy dark tone.

Backside glass 990x1999 mm, sound proof glass, tempered, privacy dark tone.

Surfaces All veneers are real wood veneer in architectural quality. Other veneers

than the standards below on request only.

Front Frame: Ash / Oak / Cherry / Walnut

Back Frame: Ash / Oak / Cherry / Walnut

Outside walls: Ash / Oak / Cherry / Walnut / White CPL / Black CPL

Inside walls: Ash / Oak / Cherry / Walnut / White CPL / Black CPL

Inside ceiling: Ash / Oak / Cherry / Walnut

Inside flooring: Anthracite Grey

Surface treatment Triple UV coating approved for cleaning with up to 70% alcohol products /

Pigmented Triple UV coating approved for cleaning with up to 70% alcohol

products. The flooring is antistatic, dirt resistant and acoustic.

Veneer Direction: Along length

Fixture system For the wall and ceiling claddings Gustafs Capax is used, consisting of

aluminium profiles gripping the full length of the sides of the panels,

levelling and aligning the panels.

Intelligent sensor Measures light, air quality and motion. Connected to and automizing the lightning

and ventilation, all by OCHNO Operated.

Ventilation Oversized airflow of 45,1 l/s (162,4 m3/h), achieved with 3 low speed whisper fans.

Automatic/manual rpm control and sound proof in- and outlets.

Air inlet Easy access regardless the placing of the Gpod for cleaning and

maintenance

Power input 230 V, enters from left, right or the roof. This can be changed anytime.

Sockets, output: 2 x USB-C

Lighting: 2 x LED spotlights, automatic/manual control, dimmable.

Wheels: 4 pcs, diameter 125 mm, swing.

Adjustable feet 4 pcs, adjustable from 20 – 100 mm height, access from the inside.

Reaction to Fire Up to A2-s1,d0 (EN 13501-1)

(Valid for the inside and outside claddings, including the fixture system,

the veneered surface and the surface treatment.

Resistance to Fire Up to K1-10/K2-10 (EN 13501-2)

Acoustic absorption Outside and Inside wall: Gustafs Nano αw 0,85-B NRC 0,9

Inside ceiling: Gustafs Stripes RP8-C20 αw 0,65-C NRC 0,7

Inside flooring: Sound absorbing carpet αw 0,30-D NRC 0,45

Sound proof The sound insulation of Gpod Mini is great and it can be placed next to other workstations in the middle of an office and people working next to the pods will not be able to hear conversations taking place in them. Conversations inside Gpod can be made 100% discrete.

We prefer not to give out the results of sound insulation measurements done to our product. At the moment, there isn’t a standardized test for measuring the sound insulation of small enclosed spaces like Gpod Mini. The sound insulation of a Gpod Mini also varies depending on measuring sound

coming out from the Gpod Mini and sound entering the Gpod and there are no standardized tests covering this phenomenon. That is why existing acoustical ratings are not a good reflection of the experience using a Gpod. We recommend you try a Gpod Mini in order to evaluate whether our products’

sound insulation is sufficient to meet your needs.

DoP: Available

LEED: TVOC approved emissions (EN ISO 16000-9)

Formaldehyde: approved emissions (EN 717-1)

No added urea formaldehyde

Recycled Material: Wall materials in 17% Post Consumer

Certified Wood FSC available, Certificate Code: SCS-COC-005137

EPD: available

Production Site city: Gustafs / country: Sweden

Life time expected > 50 years

BREEAM: TVOC approved emissions (EN ISO 16000-9)

Formaldehyde: approved emissions (EN 717-1)

No added urea formaldehyde

Recycled Material: Wall materials in 17% Post Consumer

Certified Wood FSC available, Certificate Code: SCS-COC-005137

EPD: available

Production Site city: Gustafs / country: Sweden

Life time expected > 50 years
