VIAVAI | MINI - Wall light source
Über dieses Produkt
Architonic ID: 20754064

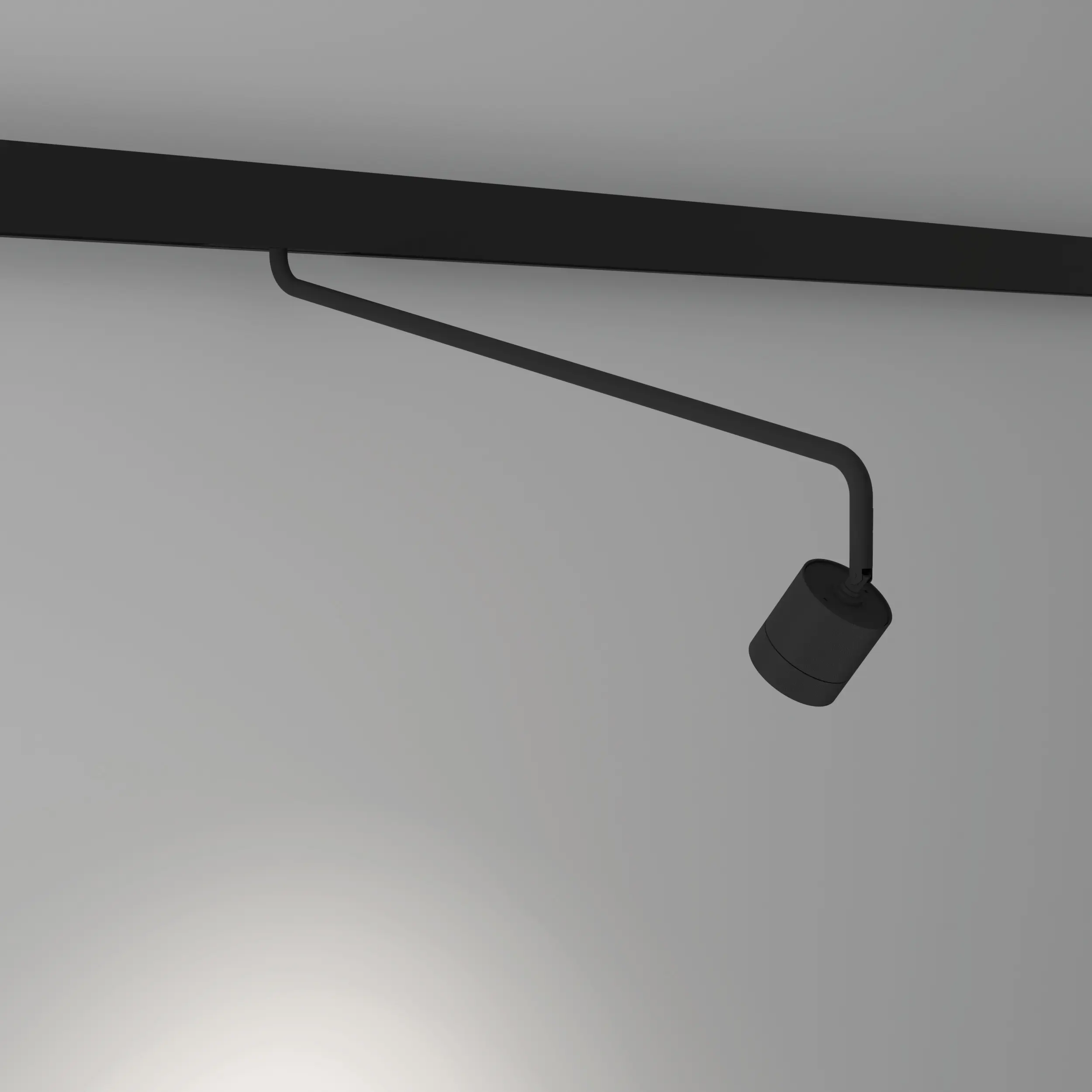

MINI are compact sources that can be moved and added at will, with extreme simplicity, through a snap fastening system. Easy replacement of secondary optics. Painted aluminum body. Integrated electronics available in “ONE BY ONE” and ON-OFF, 0-10V dimmable, DALI dimmable versions.
ON-OFF version
1 x 9W- 48V
0-10V Dimmable
1 x 9W- 48V
ONE BY ONE Dimmable
1 x 9W- 48V
2700K CRI 97- 728 lm
3000K CRI 97- 770 lm
To be completed with lenses
Converter included.
III | IP20 | CE
Kg 0,30
Konzept
VIAVAI is a line of 48V linear systems, characterized by innovative solutions unique in the panorama of architectural lighting. We have combined the functionality of low voltage tracks with the practicality of linear lighting profiles in a single product. VIAVAI was developed for both direct and indirect lighting of environments and is also available in the version for wall installation. The light sources are extremely easy to install with a simple gesture, through the use of an innovative snap system.
The VIAVAI MONO track is made of extruded aluminum and finished with epoxy paint in black and white colours. It is cuttable to size. VIAVAI MONO can be installed with direct attachment to the wall or ceiling. It can be suspended or recessed through 4 different fixing systems. Maximum capacity 10A.
The VIAVAI DUO track is made of extruded aluminum and finished with epoxy paint in black and white. It is cuttable to size. VIAVAI DUO is available in the version for wall or suspended installation. Maximum capacity 10A per line.
