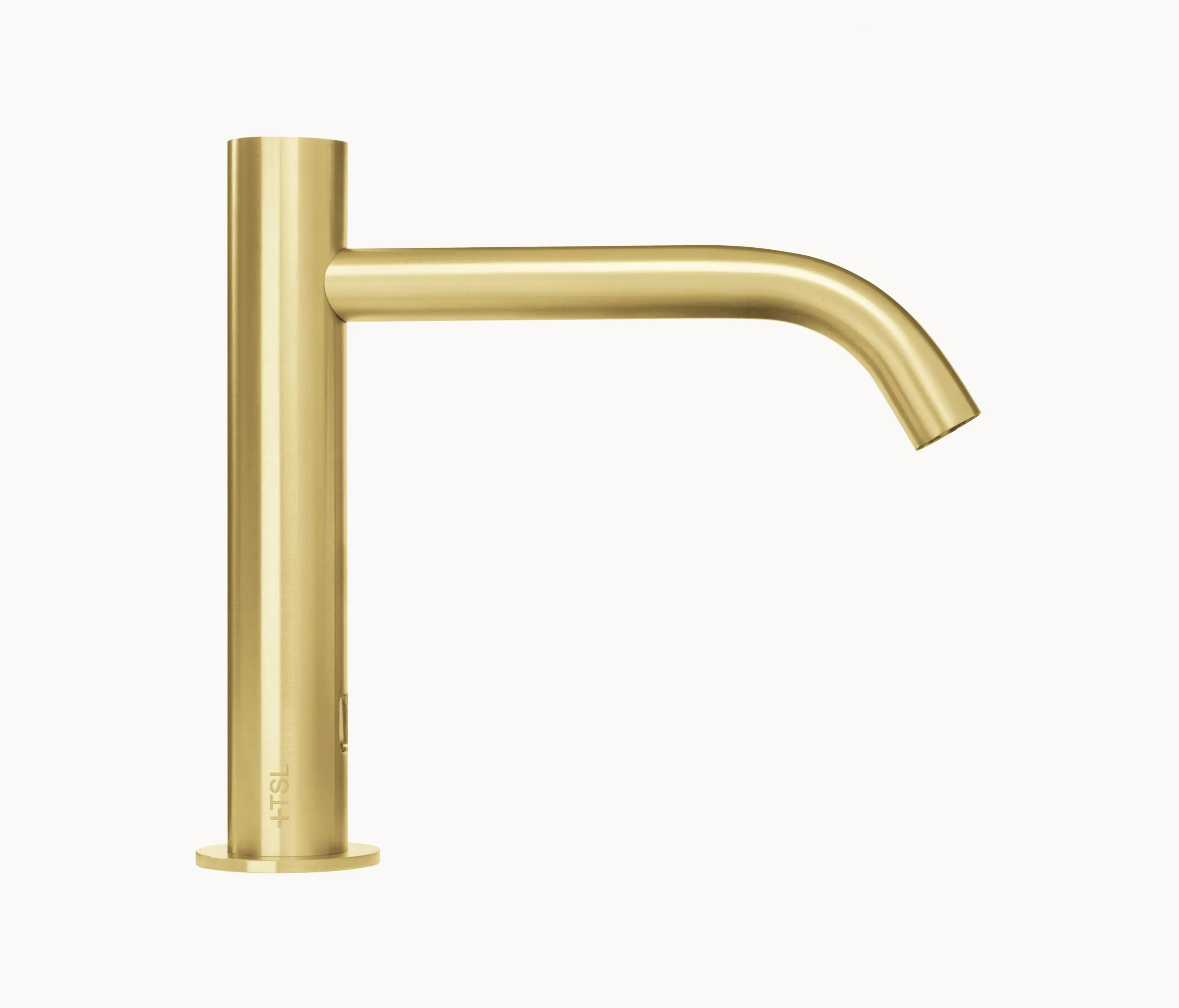

Radius | PVD Brass TSL.960 Sensor Deck Mounted Tap

Weight 1.5kg

Material AISI 304 Stainless Steel

Min/Max prssure 0.5- 7.5 bar

Flow Rate 3.8 litres/minute; also available- 1.3l/min spray, 1.89l/min spray

Aerator Cascade flow

Coating Type PVD (colours only)

Max hot water temperature 60°C

Temperature control Internal mixer cartridge; not thermostatic

Power Supply (Battery) 6V CR-P2

Lithium Battery Power Supply (Mains) 100-240V; 1.5A; 50-60Hz PSU. Output (Max) 6V; 6W max

Power Consumption < 80μA

Solenoid Valve 6V

Water Ingress (PSU) IP67

Cable Lengths Connection to sensor cable- 400mm Connection to fused supply- 1.5m

Sensor Type Infra red

Pre-set sensor range 120mm

Maximum sensor range 250mm

Comfort Delay 2 seconds

Security Time-out 30 seconds

Operating Temperature 0 to 50ºC

Response Time (max) < 300ms
