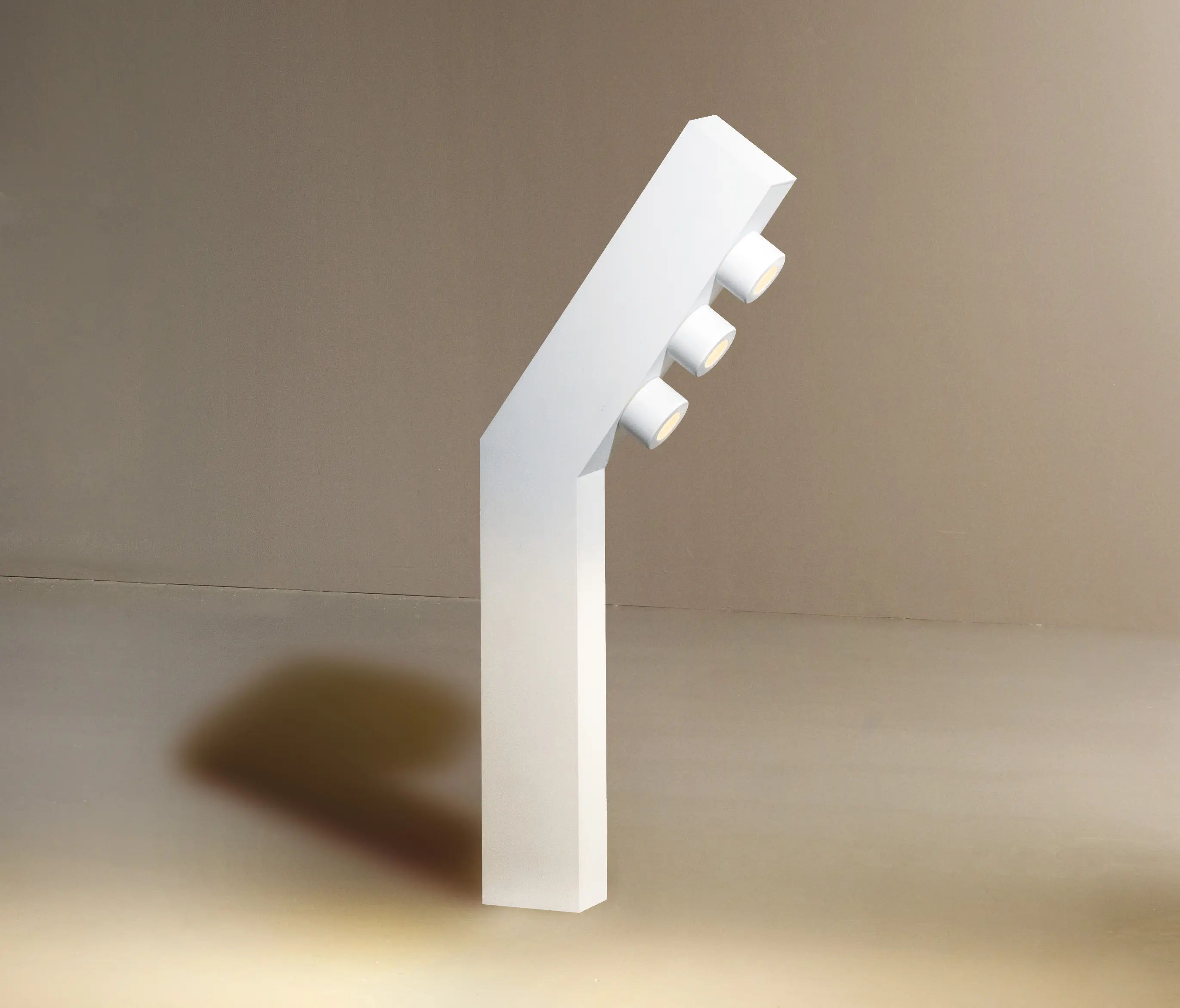

Trafford 600

Fixed, vertical standing exterior lighting device equipped with 3 powerleds.

The head of the TRAFFORD 600 is equipped with 3 cilinders each one equipped with a powerled system, and positioned under an angle to generate diffused light on the ground.

The head of the TRAFFORD 1200 is equipped with 4 cilinders each one equipped with a powerled system, and positioned under an angle to generate diffused light on the ground.

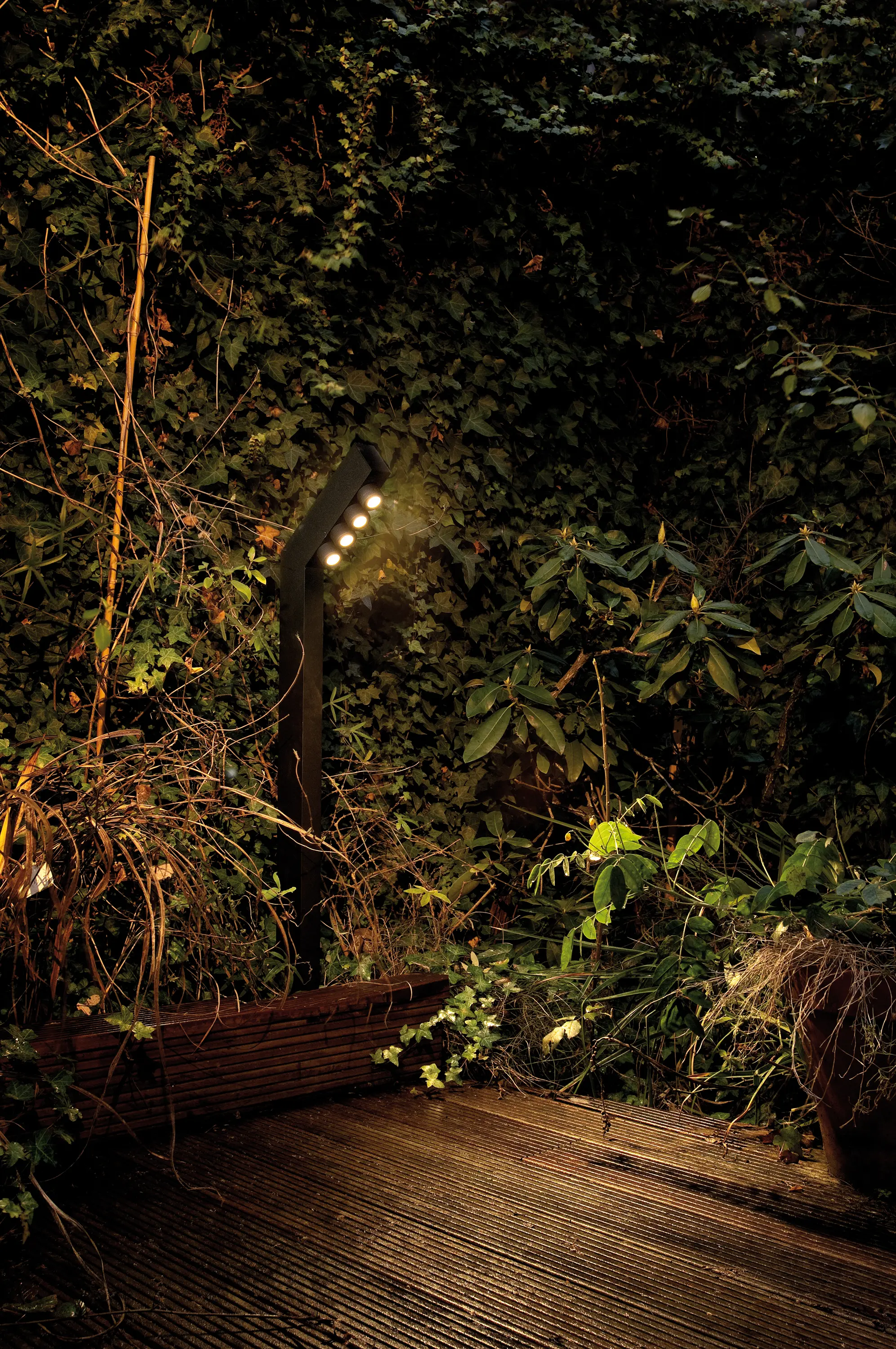

The Trafford is ideal for pathway light, parking light outdoor.

Materials and finish

Fixture is made of aluminium alloy.

Corrosion protection pretreatment: Bonderite® NT1

Finish: Powdercoating. In compliance with salt spray test: 1000 h according to DIN 50021

Installation and lamp replacement

First the luminaire housing is removed from the inner bracket/base. The base is then fixed to the mounting surface by means of rawl plugs and screws. After electrical connection and lamp installation, the housing is slid over the inner bracket and secured by screws.
