Smartfader Matrix

Name: Smartfader Matrix
Brand: TAL

BodenleuchtenvonTAL

Startseite

Bodenleuchten

Smartfader Matrix

Über dieses Produkt

Architonic ID: 1175276

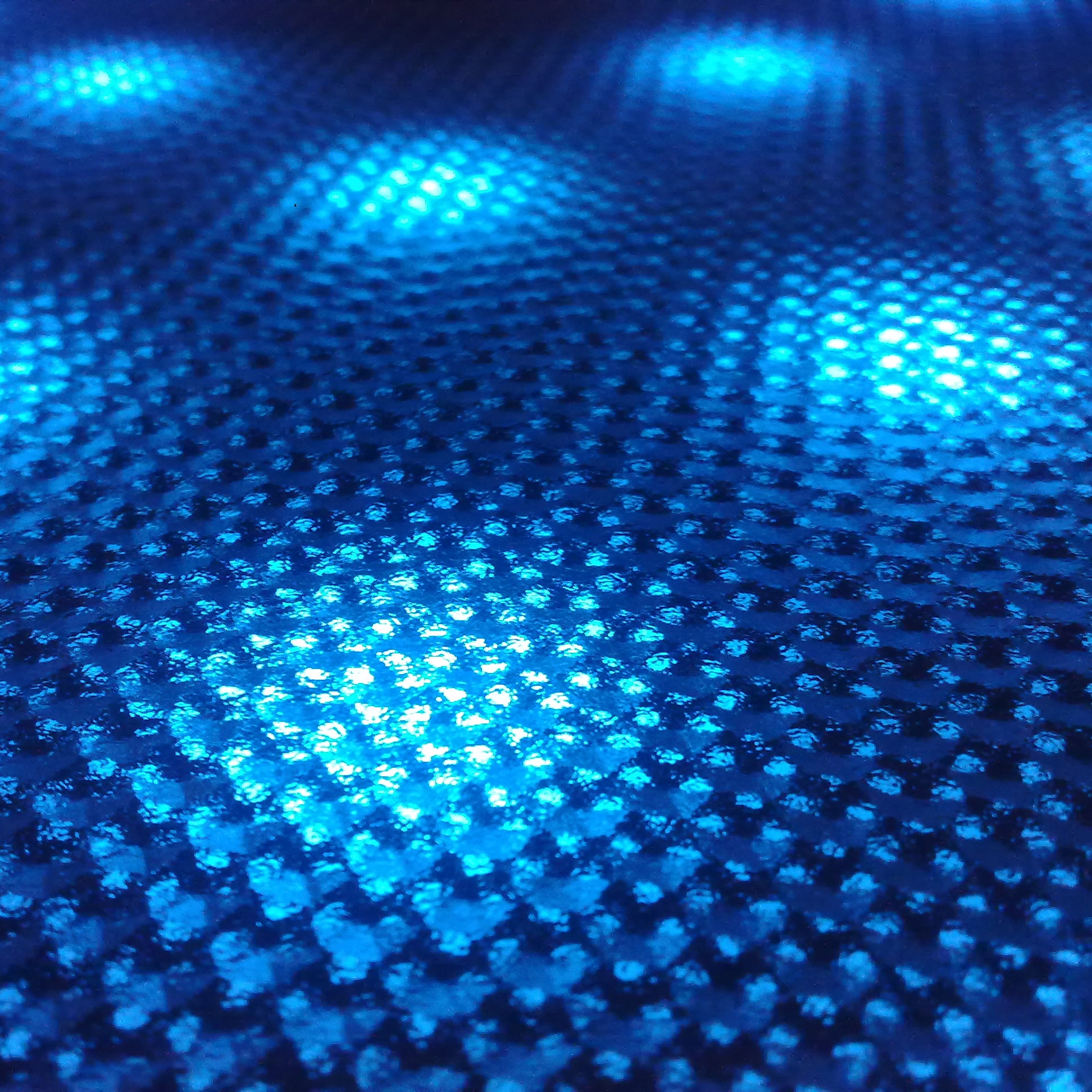

Smartfader is an interactive light floor system. Complete floor is lit and when a pedestrian walks on it, his footprints remains for a while, after fading back to the lit floor. Different colours available, different sizes, special features also possible.

The surface is fully illuminated until someone steps on it when the light beneath the footsteps go out, subsequently fading slowly back until the surface is equally illuminated once more. Options include a choice of available colors and even a mix of colors within the same unit.

Konzept

Materials and finish:

Structure: Aluminium frame

Toplayer: PMMA, scratch resistant acc. FRICK TABER EN 660-2 (2mg/1,5mm²)

Installation and lamp replacement:

Smartfader needs to be installed on completely egalized floor, for proper working avoid any holes or hollow structures under the smartfader. Smartfader can be used as a single tile, or can be installed recessed in a hole of 1002X1002mm.

Smartfader connection: using powercable or interconnection cables towards a convertor 12V – Class 1

Smartfader can be sealed to obtain a sealed floor (sealing kit 921010)

Technical data:

Luminaire dimensions : 1000X1000mm X Depth : 45mm

Weight : 20 kg

Accessories :

921000 – Power Cable

921010 – Sealing kit

Electrical data:

Lamp type : SMD Led

Lamps : 144

Control gear : Electronic gear required (Class 1)
