Satelite

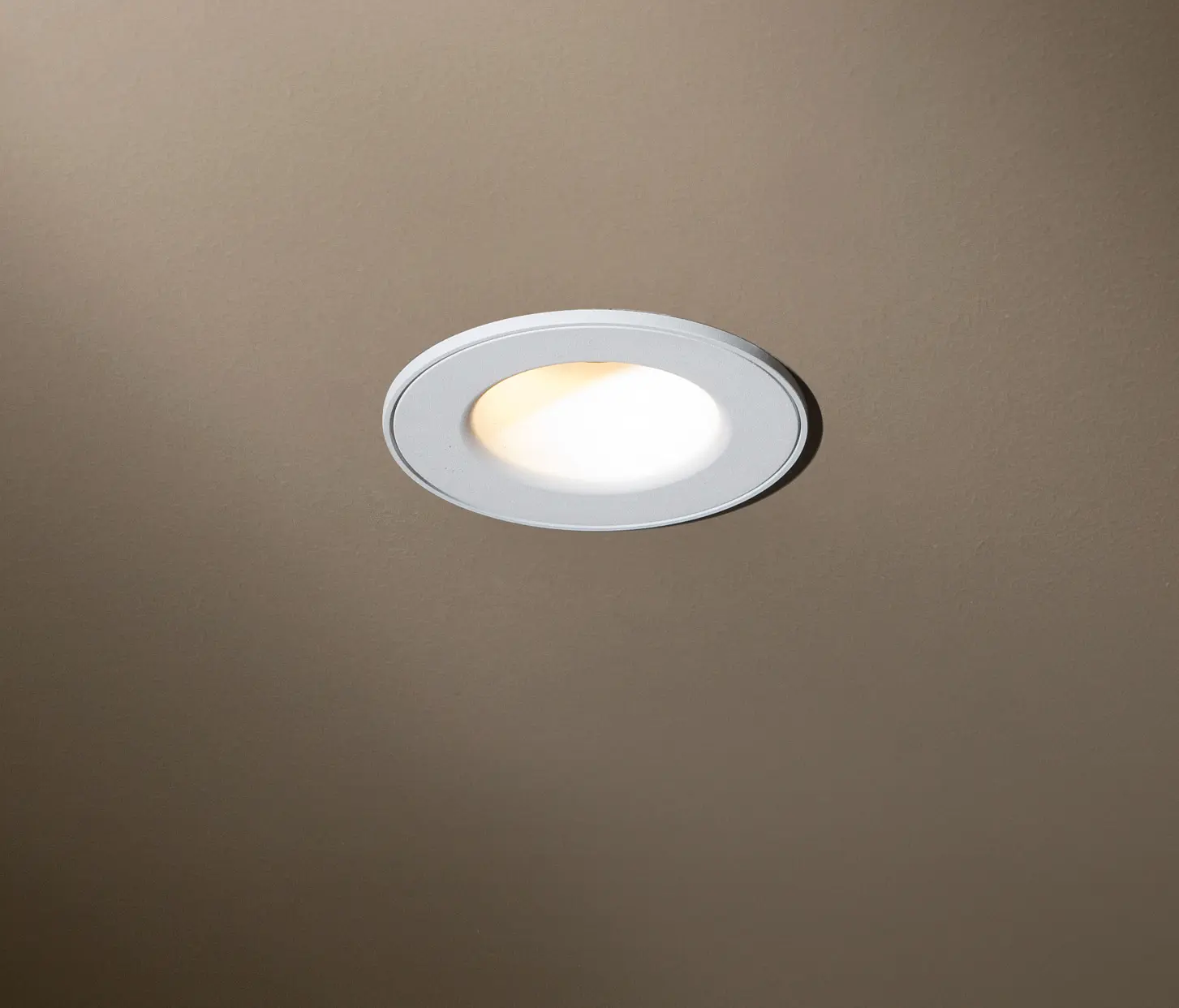

The Satellite is a very powerfull led recessed trimless downlighter which is especially developed for the CITIZEN LED chip. This combination delivers great performance and pleasant light.

The heatsink is a combination of copper and aluminium in order to obtain perfect heat dissipation of the LED chip.

The shape of the SATELLITE is conic for aesthetical and anti-glare reasons.

The 13W version delivers 900lumen and the 26W version delivers 1800lumen, so they are ideal for general lighting applications where lifetime and maintenance are important.

The Satellite is standard available in a textured white finish and is easy to install via an installation ring for plaster.

Materials and finish:

Fixture is made in aluminium alloy with textured white powdercoat finish.

Anti glare focus ring integrated in the housing.

PMMA lens system 36°

Installation and lamp replacement:

An extra accessory is needed for trimless installation. The installation ring for plaster can be ordered separately. The installation ring needs to be mounted in the ceiling and is easy to finish this off. After finishing the complete ceiling (inc. painting) the unit is installed by snapping it into the installation ring for plaster.

Technical data:

Cut-out: Round hole diameter 95mm

Installation height 13W: 110 mm (incl. Terminal block holder) in false ceiling

Installation height 26W: 130 mm (incl. Terminal block holder) in false ceiling

Luminaire dimensions: Diameter 125mm

Weight: 0,6 kg – 0,8kg

Adjustability: N/A

Accessories: 701109 – Installation ring for plaster

Electrical data:

Lamp type: CITIZEN led chip

Lamps: 13W – 900lm or 26W – 1800lm

Lampholders: N/A

Control gear: not included

Input supply voltage: 700mA

Connector block: 2x2,5mm² with strain relief

Glow wire resistance: 960°C

IP rating: IP20
