Lucy

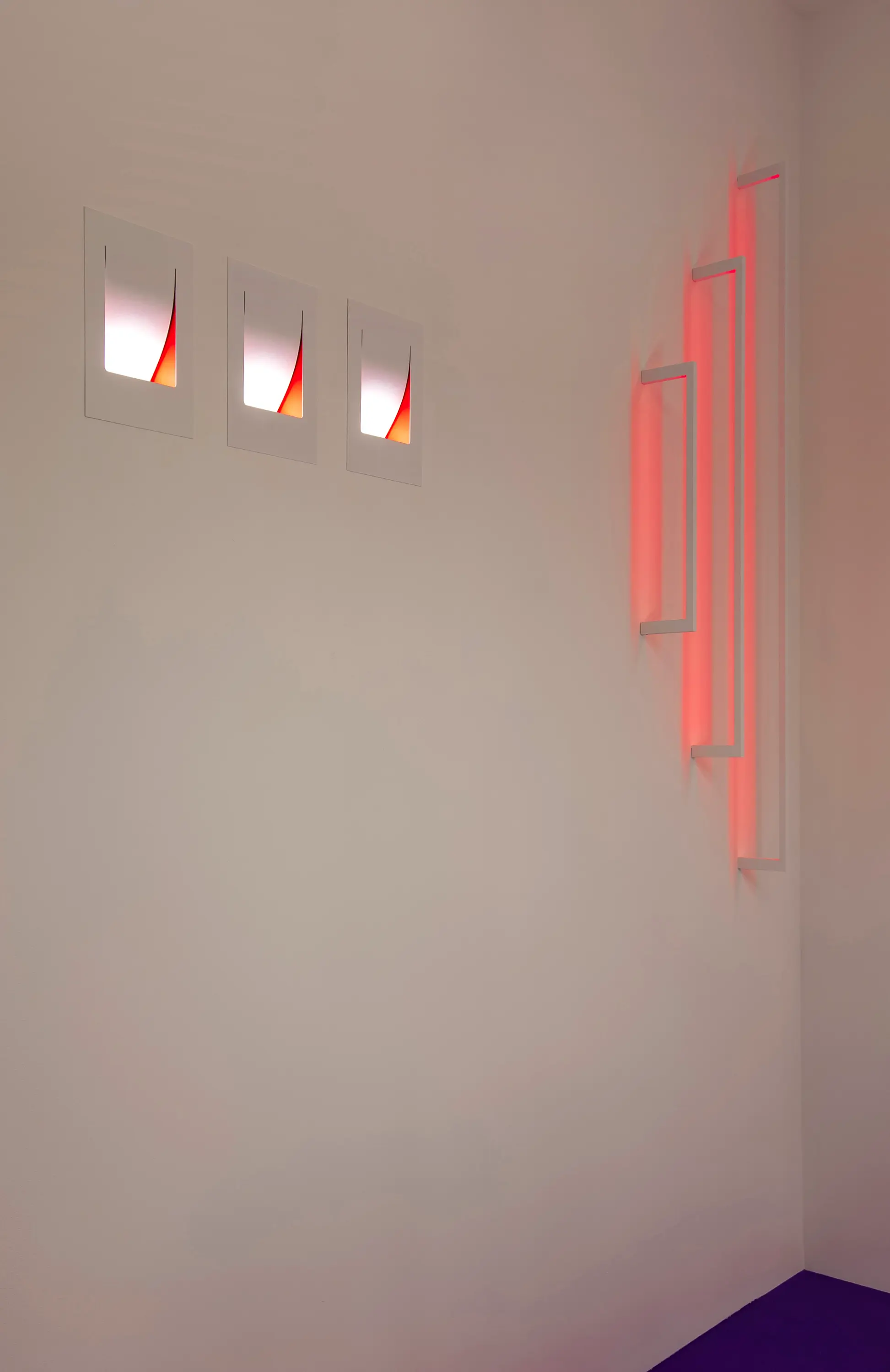

Wall fitting for indirect lighting purposes.

The luminary consists of a rectangular front in textured white and an assymetrical reflector which is part of the design of the housing, giving it a neat & modern look. The inner part of the fixture is available in textured white or in a red color.

The Lucy is equipped with 3 powerleds, covered by a frosted glass in order to provide a nice soft beam.

The electronic convertor is incorporated.

Materials and finish:

The outer plate is made of stainless steel 301 and painted in textured white

Housing is made in painted steel.

Base for powerled is made in aluminium.

Diffussor: Frosted borosilicate glass

Installation and lamp replacement:

The fixture can be put in any hole with a rectangular size of 165X235mm and is hold on his place by 4 springs.

Technical data:

Cut-out: Rectangular hole: 165X235mm

Minimum recessed dimension: 80mm

Luminaire dimensions L x W: 265X174X70mm

Weight: 3,4 kg

Accessories:

Installation frame for plaster: 250690

Installation box for concrete: 250695

Electrical data:

Lamp type: Powerled

Lamps: 3X2W

Control gear: convertor incorporated

Input supply voltage: 230V-50Hz

Connector block: 3x2,5 mm²

Glow wire resistance: 960°C

IP rating: IP20

Protection classification: Class 1
