Bart

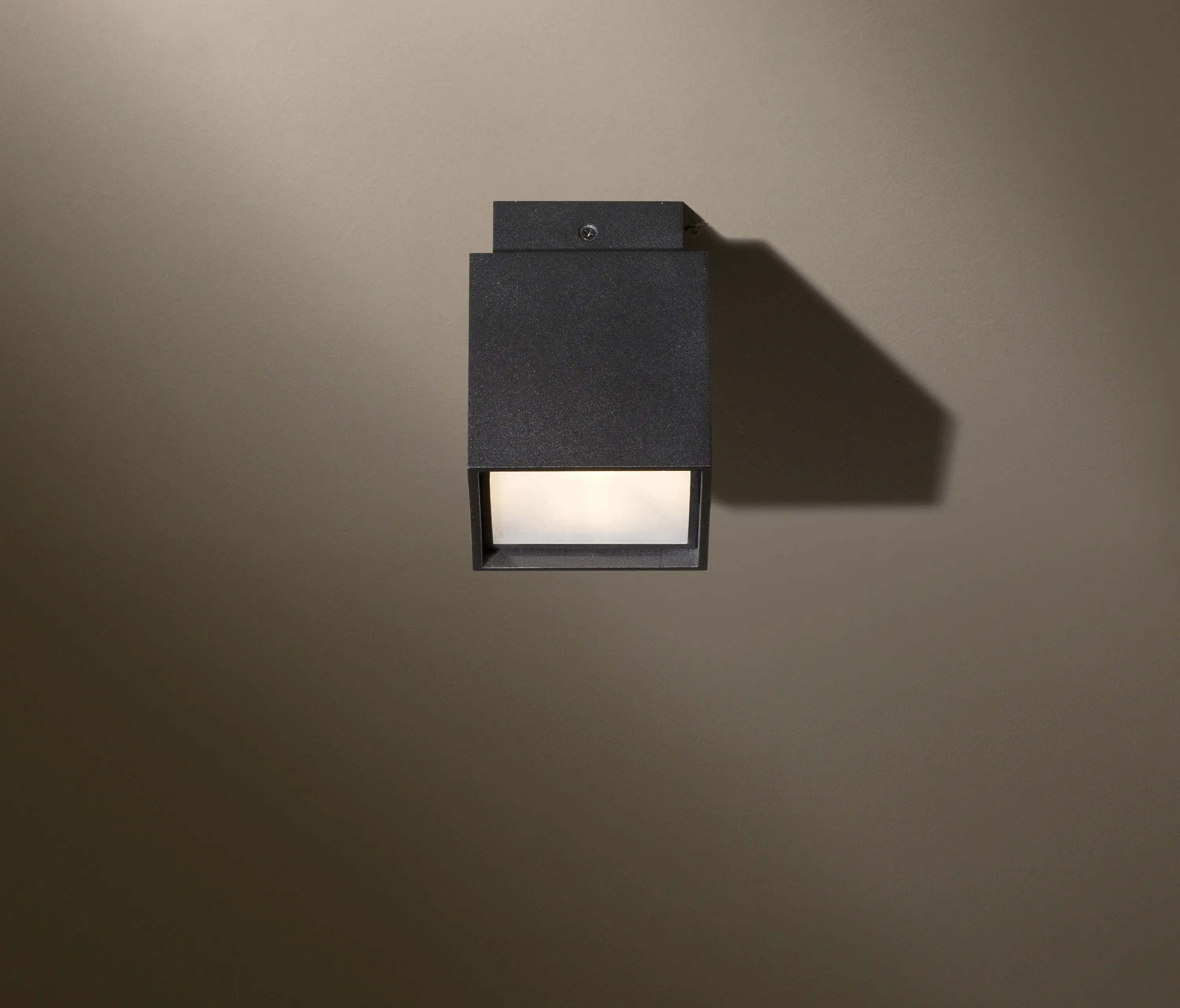

Square surface mounted fixture for general lighting applications.

The cube shaped fixture is made of powder coated steel and contains a mirror polished aluminium reflector.

The fixture is equipped with a frosted borosilicate glass diffuser.

Thanks to this diffuser, an optimal balance between light comfort and light efficiency is obtained.

The device operates direct on mains 230V

Materials and finish:

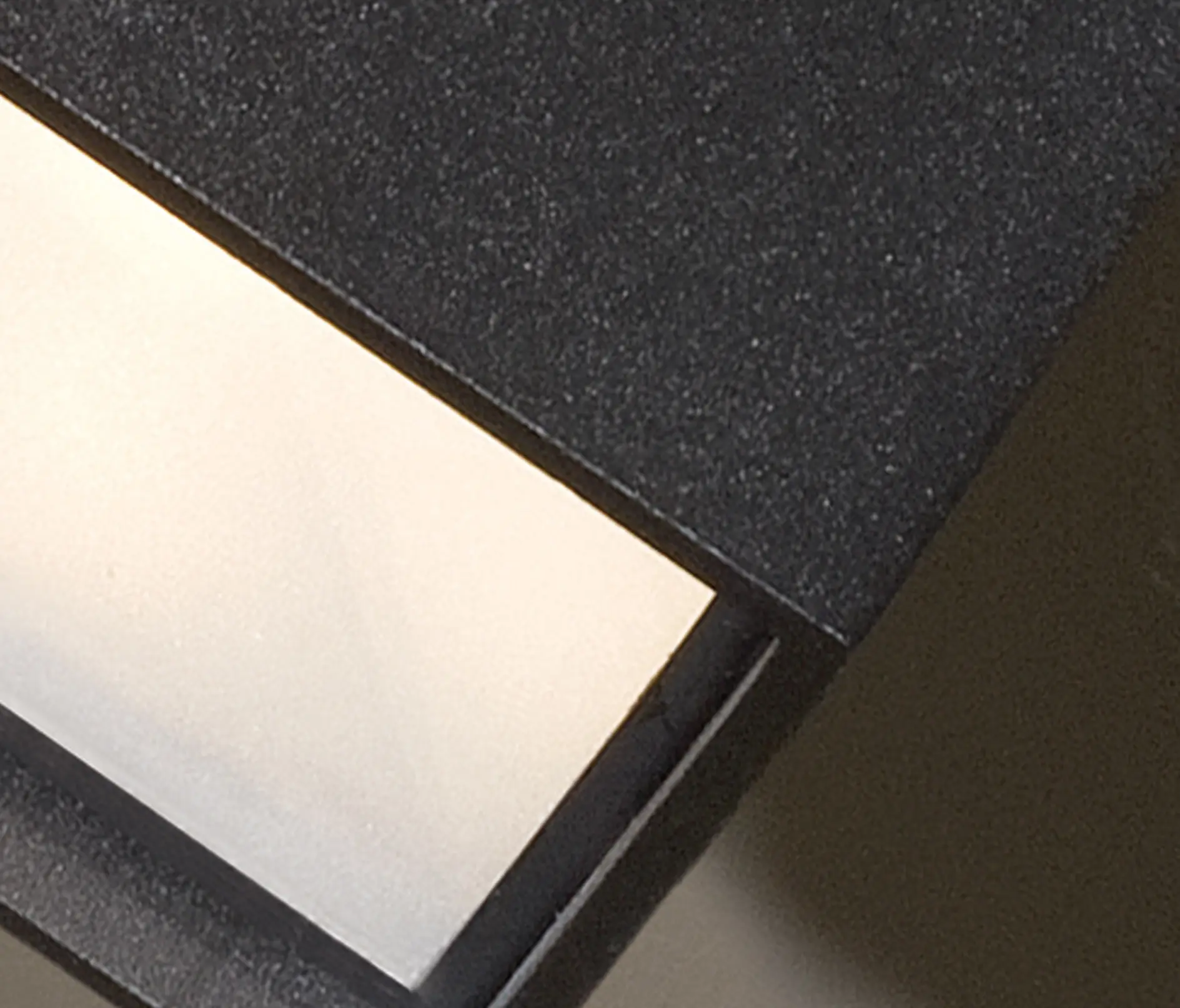

The housing is made of powder-coated plate available in textured white and textured black finish.

The diffuser is made of frosted borosilicate glass.

Installation and lamp replacement:

Installation: Base is fixed to the ceiling by means of a surface mounted housing.

Lamp replacement: the glass can easily be removed by snapping.

Technical data:

Luminaire dimensions: cube: 100X100X130 mm

Weight: 0,9 kg

Electrical data:

Lamp type: QT14

Lamps: 1

Lampholders: G9

Control gear: N/A

Input supply voltage: 230V-50Hz

Connector block: 3x2,5mm²

Glow wire resistance: 960°

IP rating: IP20
