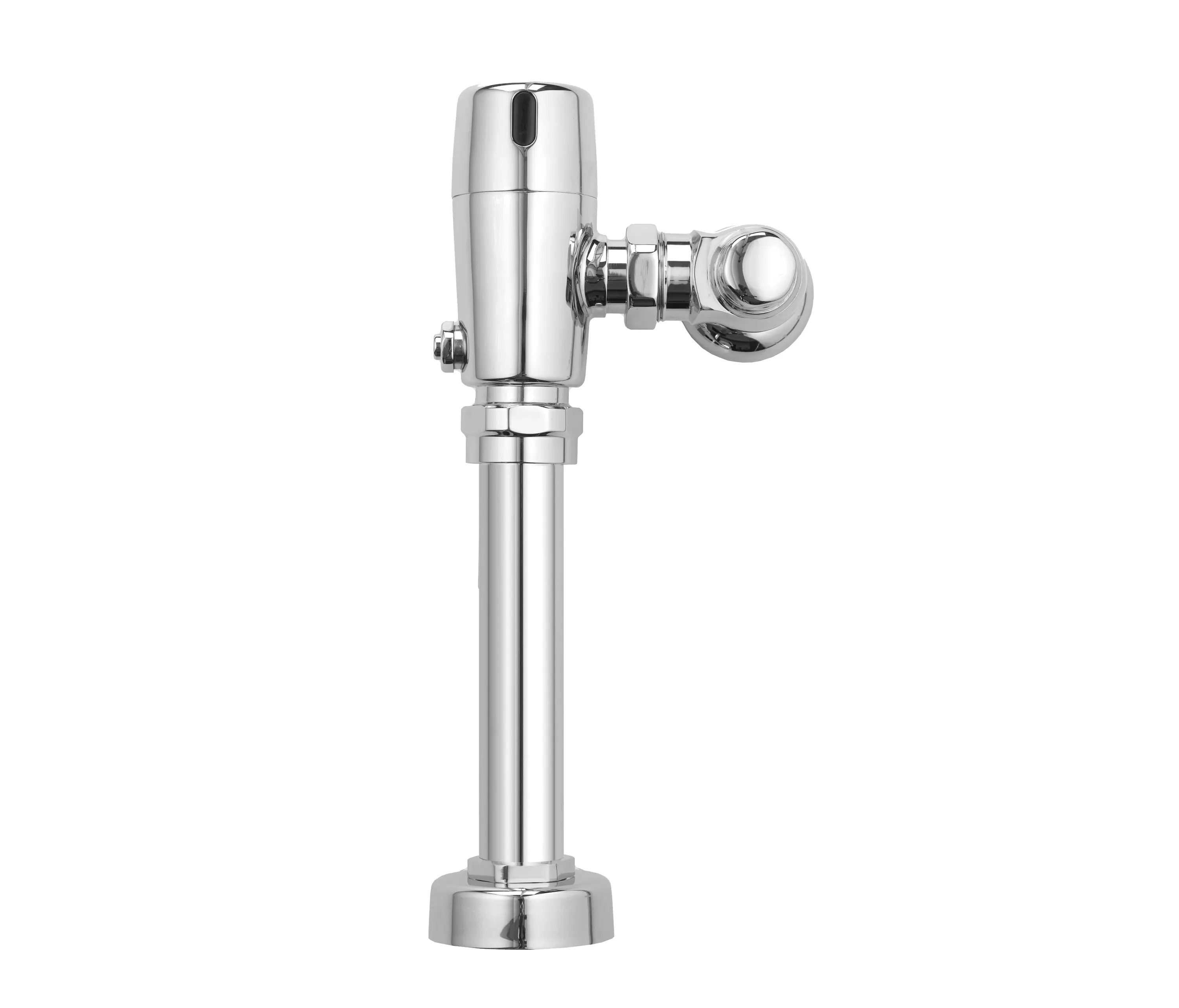

Venus 3002 R
Über dieses Produkt
Architonic ID: 1386175
SKU: 420241
Touch-free exposed electronic flush valve for top spud bowls, activated by infrared sensor. With side inlet. Powered by an internal 9V battery. Includes a mechanical override button for manual operation. Adjustable settings by remote control: sensor range, flush time, delay in time, delay out time, On/Off, reset to factory settings. Includes a low-battery indicator and an automatic 24-hour hygienic flush.
Technical Data:
Power: internal 9V battery
Side inlet
Mechanical override flush button
Operating pressure: 0.5-8.0 bar / 7.0-116.0 psi
Flush cycle: 4.8 lpf / 1.28 gpf
Options:
Pre-flush operation
Konzept
Electronic flush valves for W.C. help washrooms to stay neat and clean and save considerable amounts of water, contributing to the facility’s LEED rating. These controls’ minimalist style and clean lines provide a perfect aesthetic solution for any location with high design standards.
